Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 32 of 3,786 shared
GC416V
Suzuki APV — 32 of 3,786 shared

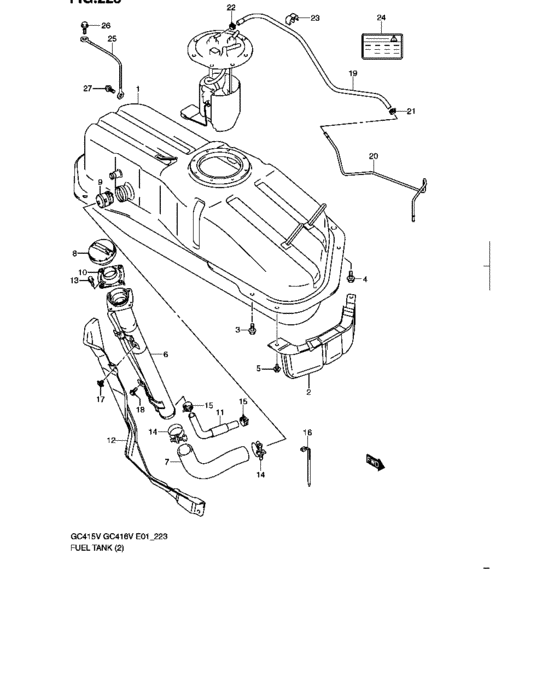

Fuel tank (TYPE 1:GC416V) 32 / 32
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 89101-61J11-000 | Tank assy, fuel | Tank assy, fuel |
| 2 | 89191-61J00-000 | Cover, lower | Cover, lower |
| 3 | 89191-81A00-000 | Bolt | Bolt |
| 4 | 09118-10054-000 | BOLT(10X30) | BOLT(10X30) |
| 5 | 09409-08327-000 | CLIP | CLIP |
| 6 | 89201-61J11-000 | Neck, fuel filler | Neck, fuel filler |
| 7 | 89241-61J00-000 | Hose, fuel tank filler | Hose, fuel tank filler |
| 7 | 89241-61J10-000 | Hose, fuel tank filler | Hose, fuel tank filler |
| 8 | 89260-50J00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 8 | 89260-65G10-000 | CAP ASSY,FUEL PILLER | CAP ASSY,FUEL PILLER |
| 9 | 89270-75F00-000 | VALVE,FUEL TANK INLET | VALVE,FUEL TANK INLET |
| 10 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 11 | 89290-61J10-000 | HOSE,FUEL TANK BREATHER | HOSE,FUEL TANK BREATHER |
| 12 | 89311-61J00-000 | Protector, fuel filler | Protector, fuel filler |
| 13 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 14 | 09400-45311-000 | CLAMP | CLAMP |
| 15 | 09401-18406-000 | CLIP | CLIP |
| 16 | 09407-25401-000 | CLAMP(L:235) - Clamp (l:235) | CLAMP(L:235) - Clamp (l:235) |
| 17 | 09409-07332-000 | CLIP | CLIP |
| 18 | 01550-0612A-000 | Bolt | Bolt |
| 19 | 89442-61J00-000 | HOSE,FUEL EVAP | HOSE,FUEL EVAP |
| 19 | 89442-61J10-000 | HOSE,FUEL EVAP | HOSE,FUEL EVAP |
| 20 | 89461-61J00-000 | Pipe, fuel evap | Pipe, fuel evap |
| 21 | 09401-11413-000 | CLIP | CLIP |
| 21 | 09401-11415-000 | CLIP | CLIP |
| 22 | 09401-12404-000 | CLIP | CLIP |
| 22 | 09401-12405-000 | CLIP | CLIP |
| 23 | 09408-00043-000 | CLAMP - Holder, fuse case | CLAMP - Holder, fuse case |
| 24 | 79115-80G00-000 | LABEL,FUEL CAUTION | LABEL,FUEL CAUTION |
| 25 | 89192-81A00-000 | HARNESS,FUEL TANK EARTH | HARNESS,FUEL TANK EARTH |
| 26 | 02162-0610A-000 | SCREW | SCREW |
| 27 | 09115-08001-000 | BOLT(8X18) | BOLT(8X18) |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 15 | 01550-0612A-000 | Bolt | Bolt |
| 19 | 02162-0610A-000 | SCREW | SCREW |
| 29 | 09115-08001-000 | BOLT(8X18) | BOLT(8X18) |
| 13 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 4 | 09118-10054-000 | BOLT(10X30) | BOLT(10X30) |
| 14 | 09400-45311-000 | CLAMP | CLAMP |
| 24 | 09401-11413-000 | CLIP | CLIP |
| 21 | 09401-11415-000 | CLIP | CLIP |
| 25 | 09401-12404-000 | CLIP | CLIP |
| 22 | 09401-12405-000 | CLIP | CLIP |
| 15 | 09401-18406-000 | CLIP | CLIP |
| 16 | 09407-25401-000 | CLAMP(L:235) - Clamp (l:235) | CLAMP(L:235) - Clamp (l:235) |
| 23 | 09408-00043-000 | CLAMP - Holder, fuse case | CLAMP - Holder, fuse case |
| 7 | 09409-07332-000 | CLIP | CLIP |
| 17 | 09409-08327-000 | CLIP | CLIP |
| 24 | 79115-80G00-000 | LABEL,FUEL CAUTION | LABEL,FUEL CAUTION |
| 1 | 89101-61J11-000 | Tank assy, fuel | Tank assy, fuel |
| 2 | 89191-61J00-000 | Cover, lower | Cover, lower |
| 3 | 89191-81A00-000 | Bolt | Bolt |
| 27 | 89192-81A00-000 | HARNESS,FUEL TANK EARTH | HARNESS,FUEL TANK EARTH |
| 6 | 89201-61J11-000 | Neck, fuel filler | Neck, fuel filler |
| 7 | 89241-61J00-000 | Hose, fuel tank filler | Hose, fuel tank filler |
| 7 | 89241-61J10-000 | Hose, fuel tank filler | Hose, fuel tank filler |
| 8 | 89260-50J00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 8 | 89260-65G10-000 | CAP ASSY,FUEL PILLER | CAP ASSY,FUEL PILLER |
| 9 | 89270-75F00-000 | VALVE,FUEL TANK INLET | VALVE,FUEL TANK INLET |
| 10 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 11 | 89290-61J10-000 | HOSE,FUEL TANK BREATHER | HOSE,FUEL TANK BREATHER |
| 12 | 89311-61J00-000 | Protector, fuel filler | Protector, fuel filler |
| 19 | 89442-61J00-000 | HOSE,FUEL EVAP | HOSE,FUEL EVAP |
| 19 | 89442-61J10-000 | HOSE,FUEL EVAP | HOSE,FUEL EVAP |
| 20 | 89461-61J00-000 | Pipe, fuel evap | Pipe, fuel evap |
