Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 10 of 3,786 shared
GC416V
Suzuki APV — 10 of 3,786 shared

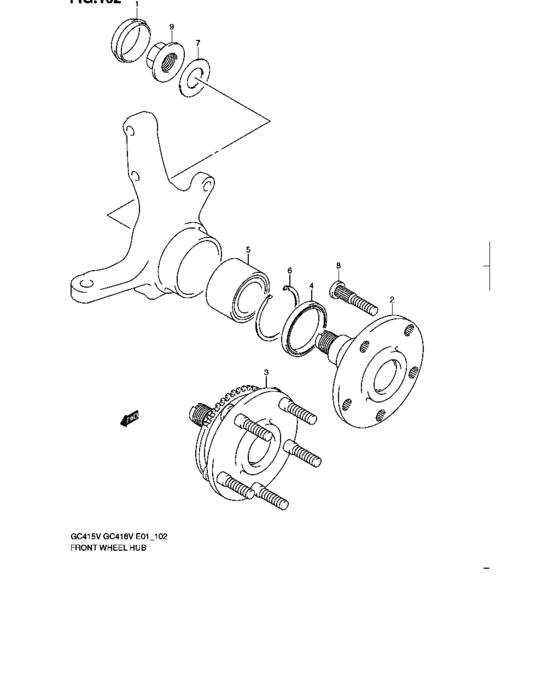

Front wheel hub (FRONT WHEEL HUB) 10 / 10
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 43241-85001-000 | CAP,SPINDLE | CAP,SPINDLE |
| 2 | 43421-61J01-000 | HUB,FR WHL | HUB,FR WHL |
| 3 | 43402-60K10-000 | Hub assy, front wheel | Hub assy, front wheel |
| 4 | 43431-61J00-000 | SEAL,FR WHEEL BEARING | SEAL,FR WHEEL BEARING |
| 5 | 43462-61J00-000 | Bearing, front wheel | Bearing, front wheel |
| 5 | 43462-60K00-000 | Bearing, front wheel | Bearing, front wheel |
| 6 | 43464-61J00-000 | CIRCLIP,FR WHEEL BRG | CIRCLIP,FR WHEEL BRG |
| 7 | 43465-61J00-000 | WASHER,FR WHEEL BRG | WASHER,FR WHEEL BRG |
| 8 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 9 | 09159-24009-000 | NUT | NUT |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 8 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 9 | 09159-24009-000 | NUT | NUT |
| 1 | 43241-85001-000 | CAP,SPINDLE | CAP,SPINDLE |
| 3 | 43402-60K10-000 | Hub assy, front wheel | Hub assy, front wheel |
| 2 | 43421-61J01-000 | HUB,FR WHL | HUB,FR WHL |
| 4 | 43431-61J00-000 | SEAL,FR WHEEL BEARING | SEAL,FR WHEEL BEARING |
| 5 | 43462-60K00-000 | Bearing, front wheel | Bearing, front wheel |
| 5 | 43462-61J00-000 | Bearing, front wheel | Bearing, front wheel |
| 6 | 43464-61J00-000 | CIRCLIP,FR WHEEL BRG | CIRCLIP,FR WHEEL BRG |
| 7 | 43465-61J00-000 | WASHER,FR WHEEL BRG | WASHER,FR WHEEL BRG |
