GC415V × GC416V

Shared 62 / Total 3,786 · Jaccard 100%
GC415V Suzuki APV — 62 of 3,786 shared
GC416V Suzuki APV — 62 of 3,786 shared

← Back to categories

62 items

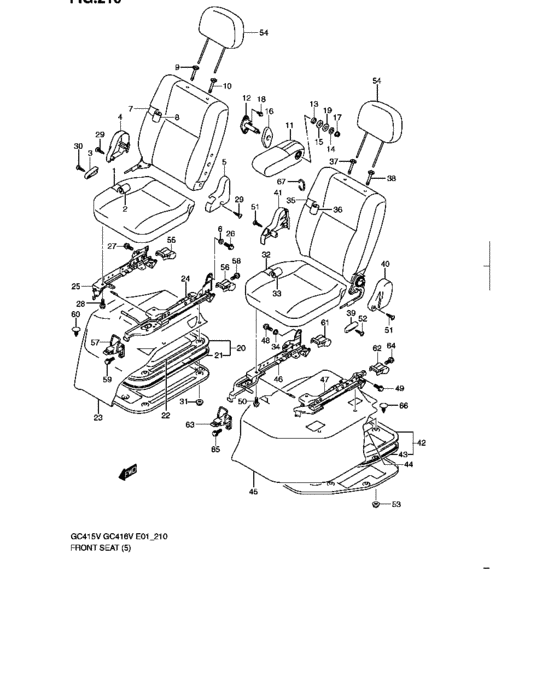

Front seat (TYPE 1:RHD:GL,GLX) 62 / 62
GC415V Front seat (TYPE 1:RHD:GL,GLX)
GC416V Front seat (TYPE 1:RHD:GL,GLX)
# OEM GC415V GC416V
1 85105-61JA0-000 Cushion sub assy, fr rh Cushion sub assy, fr rh
2 85180-61JA0-BEJ Trim, cushion rh Trim, cushion rh
2 85180-61JA0-AYH Trim, cushion rh Trim, cushion rh
3 85211-61JA0-P4Z Knob, reclining rh - Gray Knob, reclining rh - Gray
3 85211-61JA0-R8H Knob, reclining rh - Beige Knob, reclining rh - Beige
4 85221-61JA0-P4Z Cover, reclining rh - Gray Cover, reclining rh - Gray
4 85221-61JA0-R8H Cover, reclining rh - Beige Cover, reclining rh - Beige
5 85281-61JA0-P4Z Cover, hinge rh - Gray Cover, hinge rh - Gray
5 85281-61JA0-R8H Cover, hinge rh - Beige Cover, hinge rh - Beige
6 85293-79A00-000 BUSH,FR BACK FIX - Bush, fr back fix BUSH,FR BACK FIX - Bush, fr back fix
7 85305-61JA0-000 Back sub assy, fr rh Back sub assy, fr rh
7 85305-61JE0-000 Back sub assy, fr rh Back sub assy, fr rh
8 85380-61JA0-BEJ Trim, back rh Trim, back rh
8 85380-61JE0-AYH Trim, back rh Trim, back rh
9 85341-58J00-P4Z GUIDE,HEADRESTRAINT GUIDE,HEADRESTRAINT
10 85840-58J00-P4Z GUIDE,HEADRESTRAINT GUIDE,HEADRESTRAINT
11 85501-61JA0-AYK Armrest assy Armrest assy
12 85540-61JE0-000 Hinge, armrest Hinge, armrest
13 85546-61JE0-000 Bush, armrest Bush, armrest
14 85547-61JE0-000 Washer Washer
15 85548-61JE0-000 Washer Washer
16 85571-61JE0-R8H Cover, armrest - Beige Cover, armrest - Beige
17 09159-08075-000 NUT NUT
18 01550-0812A-000 Bolt Bolt
19 08322-0110A-000 WASHER - Washer, knuckle end WASHER - Washer, knuckle end
20 85410-61JA0-000 Panel assy, riser rh Panel assy, riser rh
21 85428-61JA0-000 Weatherstrip, riser Weatherstrip, riser
22 85427-61JA0-000 Insulator, riser rh Insulator, riser rh
23 85430-61JB0-S01 Carpet - Gray Carpet - Gray
24 86601-61JA0-000 Adjuster assy, inside Adjuster assy, inside
25 86603-61JA0-000 Adjuster assy, outside Adjuster assy, outside
26 09116-06109-000 BOLT(6X12) BOLT(6X12)
27 01550-1020A-000 Bolt - Bolt, bal sprocket Bolt - Bolt, bal sprocket
28 01820-0820A-000 Bolt Bolt
29 03241-0508A-000 SCREW SCREW
31 08316-1008A-000 NUT - Nut, idle gear shaft NUT - Nut, idle gear shaft
32 85106-61JA0-000 Cushion sub assy, fr lh Cushion sub assy, fr lh
33 85680-61JA0-BEJ Trim, cushion lh Trim, cushion lh
33 85680-61JA0-AYH Trim, cushion lh Trim, cushion lh
35 85306-61JA0-000 Back sub assy, fr lh Back sub assy, fr lh
36 85880-61JA0-BEJ Trim, back lh Trim, back lh
36 85880-61JC1-AYH Trim, back lh Trim, back lh
39 85711-61JA0-P4Z Knob, reclining lh - Gray Knob, reclining lh - Gray
39 85711-61JA0-R8H Knob, reclining lh - Beige Knob, reclining lh - Beige
40 85721-61JA0-P4Z Cover, reclining lh - Gray Cover, reclining lh - Gray
40 85721-61JA0-R8H Cover, reclining lh - Beige Cover, reclining lh - Beige
41 85781-61JA0-P4Z Cover, hinge lh - Gray Cover, hinge lh - Gray
41 85781-61JA0-R8H Cover, hinge lh - Beige Cover, hinge lh - Beige
42 85910-61JA0-000 Panel assy, fr riser lh Panel assy, fr riser lh
44 85927-61JA0-000 Insulator, riser lh Insulator, riser lh
45 85930-61JB0-S01 Carpet - Gray Carpet - Gray
46 86801-61JA0-000 Adjuster assy, inside Adjuster assy, inside
47 86803-61JA0-000 Adjuster assy, outside Adjuster assy, outside
54 86401-61JA0-T1S Headrestraint assy - Gray Headrestraint assy - Gray
54 86401-61JA0-AYK Headrestraint assy Headrestraint assy
55 85495-61JA0-000 Cover, adjuster hinge, rh Cover, adjuster hinge, rh
56 85995-61JA0-000 Cover, adjuster hinge, lh Cover, adjuster hinge, lh
57 86650-77A02-000 LOCK ASSY,FR LOCK ASSY,FR
58 01551-1020A-000 Bolt Bolt
59 01570-0612A-000 Bolt Bolt
60 09409-05309-P4Z CLIP(GRAY) CLIP(GRAY)
67 09387-19001-000 RING RING
