Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 21 of 3,786 shared
GC416V
Suzuki APV — 21 of 3,786 shared

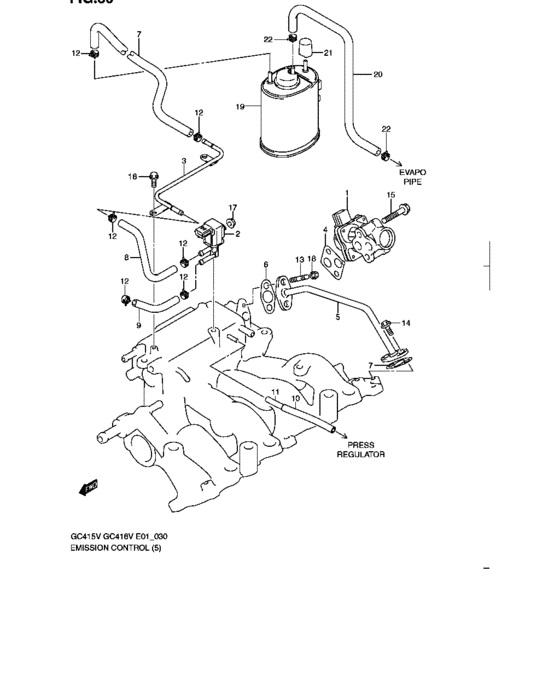

Emission control (GC416V:TYP; TYPE 2) 21 / 21
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 18111-77E02-000 | VALVE,EGR | VALVE,EGR |
| 2 | 18117-52G00-000 | VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge | VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge |
| 3 | 18340-61J00-000 | Pipe, purge | Pipe, purge |
| 4 | 18529-77E01-000 | GASKET,EGR VALVE | GASKET,EGR VALVE |
| 5 | 18530-61J00-000 | PIPE,EGR | PIPE,EGR |
| 6 | 18533-77E00-000 | GASKET,EGR PIPE | GASKET,EGR PIPE |
| 7 | 18562-61J10-000 | HOSE,PURGE CSTR TO PIPE | HOSE,PURGE CSTR TO PIPE |
| 8 | 18563-61J10-000 | HOSE,PURGE PIPE TO VSV - Pipt to vsv | HOSE,PURGE PIPE TO VSV - Pipt to vsv |
| 9 | 18564-61J00-000 | HOSE,PURGE VSV TO MANF | HOSE,PURGE VSV TO MANF |
| 10 | 09351-80902-600 | PROTECTOR(8X9X600) | PROTECTOR(8X9X600) |
| 11 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 11 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 12 | 09401-11419-000 | CLIP | CLIP |
| 13 | 01421-0616A-000 | BOLT,STUD | BOLT,STUD |
| 14 | 01550-0616A-000 | Bolt | Bolt |
| 15 | 01550-0850A-000 | Bolt | Bolt |
| 16 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 08316-1006A-000 | NUT | NUT |
| 19 | 18560-76A31-000 | CANISTER | CANISTER |
| 20 | 18561-61J10-000 | HOSE,CANISTER INLET | HOSE,CANISTER INLET |
| 21 | 18571-65H20-000 | CAP,CANISTER AIR | CAP,CANISTER AIR |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 13 | 01421-0616A-000 | BOLT,STUD | BOLT,STUD |
| 25 | 01550-0616A-000 | Bolt | Bolt |
| 15 | 01550-0850A-000 | Bolt | Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 29 | 08316-1006A-000 | NUT | NUT |
| 7 | 09351-80902-600 | PROTECTOR(8X9X600) | PROTECTOR(8X9X600) |
| 8 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 8 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 12 | 09401-11419-000 | CLIP | CLIP |
| 1 | 18111-77E02-000 | VALVE,EGR | VALVE,EGR |
| 2 | 18117-52G00-000 | VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge | VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge |
| 3 | 18340-61J00-000 | Pipe, purge | Pipe, purge |
| 2 | 18529-77E01-000 | GASKET,EGR VALVE | GASKET,EGR VALVE |
| 5 | 18530-61J00-000 | PIPE,EGR | PIPE,EGR |
| 5 | 18533-77E00-000 | GASKET,EGR PIPE | GASKET,EGR PIPE |
| 19 | 18560-76A31-000 | CANISTER | CANISTER |
| 20 | 18561-61J10-000 | HOSE,CANISTER INLET | HOSE,CANISTER INLET |
| 7 | 18562-61J10-000 | HOSE,PURGE CSTR TO PIPE | HOSE,PURGE CSTR TO PIPE |
| 8 | 18563-61J10-000 | HOSE,PURGE PIPE TO VSV - Pipt to vsv | HOSE,PURGE PIPE TO VSV - Pipt to vsv |
| 9 | 18564-61J00-000 | HOSE,PURGE VSV TO MANF | HOSE,PURGE VSV TO MANF |
| 21 | 18571-65H20-000 | CAP,CANISTER AIR | CAP,CANISTER AIR |
