Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 47 of 3,786 shared
GC416V
Suzuki APV — 47 of 3,786 shared

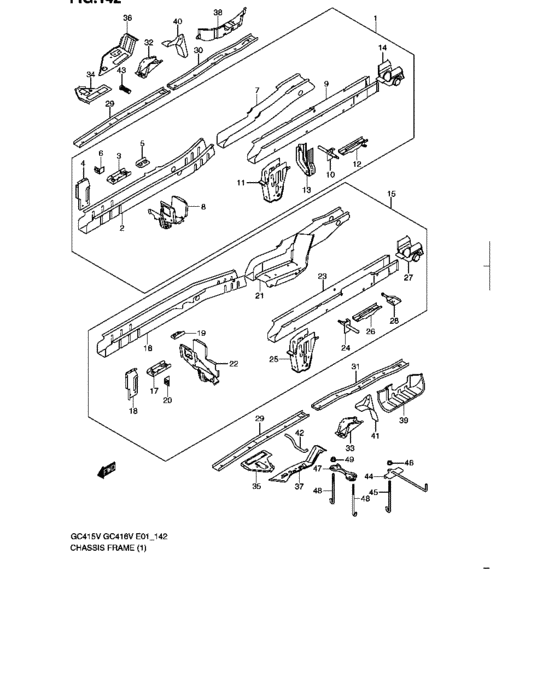

Chassis frame (TYPE 1) 47 / 47
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 59100-61J03-000 | Frame assy, floor rh | Frame assy, floor rh |
| 2 | 59111-61J01-000 | Frame, floor front rh | Frame, floor front rh |
| 3 | 59112-61J00-000 | Reinf, fr suspension frame | Reinf, fr suspension frame |
| 4 | 59113-61J00-000 | Extension, front frame rh | Extension, front frame rh |
| 5 | 59114-61J00-000 | Patch, cprsn rod bracket rh | Patch, cprsn rod bracket rh |
| 6 | 59116-77500-000 | Bracket, fr bk flexible hose | Bracket, fr bk flexible hose |
| 7 | 59121-61J01-000 | Frame, floor center rh | Frame, floor center rh |
| 8 | 59130-61J00-000 | Hanger, body mount front rh | Hanger, body mount front rh |
| 9 | 59211-61J02-000 | Frame, floor rear rh | Frame, floor rear rh |
| 10 | 59220-61J00-000 | Bracket, shock abs pivot | Bracket, shock abs pivot |
| 11 | 59230-61J00-000 | Hanger, leaf spring front rh | Hanger, leaf spring front rh |
| 12 | 59240-61J00-000 | Support, rr bump stopper | Support, rr bump stopper |
| 13 | 59250-61J01-000 | Bracket, fuel tank rear rh | Bracket, fuel tank rear rh |
| 14 | 59260-61J01-000 | Hanger, leaf spring rear | Hanger, leaf spring rear |
| 15 | 59400-61J02-000 | Frame assy, floor lh | Frame assy, floor lh |
| 16 | 59411-61J00-000 | Frame, floor front lh | Frame, floor front lh |
| 18 | 59413-61J00-000 | Extension, front frame lh | Extension, front frame lh |
| 19 | 59414-61J00-000 | Patch, cprsn rod bracket lh | Patch, cprsn rod bracket lh |
| 21 | 59420-61J01-000 | Frame, floor center lh | Frame, floor center lh |
| 22 | 59430-61J00-000 | Hanger, body mount front lh | Hanger, body mount front lh |
| 23 | 59511-61J02-000 | Frame, floor rear lh | Frame, floor rear lh |
| 25 | 59530-61J00-000 | Hanger, leaf spring front lh | Hanger, leaf spring front lh |
| 26 | 59540-61J00-000 | Support, rr bump stopper | Support, rr bump stopper |
| 28 | 59512-61J00-000 | Hanger, muffler rear | Hanger, muffler rear |
| 29 | 59141-61J01-000 | Beam, front frame front rh | Beam, front frame front rh |
| 30 | 59143-61J01-000 | Beam, front frame rear rh | Beam, front frame rear rh |
| 31 | 59144-61J01-000 | Beam, front frame rear lh | Beam, front frame rear lh |
| 32 | 59151-61J00-000 | Extension, center frame rh | Extension, center frame rh |
| 33 | 59451-61J00-000 | Extension, center frame lh | Extension, center frame lh |
| 34 | 59161-61J00-000 | Cover, front frame fr rh | Cover, front frame fr rh |
| 35 | 59461-61J00-000 | Cover, front frame fr lh | Cover, front frame fr lh |
| 36 | 59171-61J01-000 | Cover, front frame rr rh | Cover, front frame rr rh |
| 37 | 59471-61J01-000 | Cover, front frame rr lh | Cover, front frame rr lh |
| 38 | 59181-61J00-000 | Panel rear step rh | Panel rear step rh |
| 38 | 59181-61J10-000 | Panel rear step rh | Panel rear step rh |
| 39 | 59481-61J00-000 | Panel rear step lh | Panel rear step lh |
| 39 | 59481-61J10-000 | Panel rear step lh | Panel rear step lh |
| 40 | 59271-61J00-000 | Gusset, leaf spring front rh | Gusset, leaf spring front rh |
| 41 | 59571-61J00-000 | Gusset, leaf spring front lh | Gusset, leaf spring front lh |
| 42 | 59783-78A00-000 | Hanger, muffler inside | Hanger, muffler inside |
| 43 | 09119-05018-000 | BOLT(8X35) | BOLT(8X35) |
| 44 | 72530-61J00-000 | Band, battery | Band, battery |
| 45 | 57775-79000-000 | BOLT,BATTERY L:128 | BOLT,BATTERY L:128 |
| 46 | 08316-1005A-000 | NUT | NUT |
| 47 | 72511-86000-000 | BAND,BATTERY | BAND,BATTERY |
| 48 | 72513-67H00-000 | BOLT,BATTERY | BOLT,BATTERY |
| 49 | 08316-1006A-000 | NUT | NUT |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 46 | 08316-1005A-000 | NUT | NUT |
| 29 | 08316-1006A-000 | NUT | NUT |
| 43 | 09119-05018-000 | BOLT(8X35) | BOLT(8X35) |
| 45 | 57775-79000-000 | BOLT,BATTERY L:128 | BOLT,BATTERY L:128 |
| 1 | 59100-61J03-000 | Frame assy, floor rh | Frame assy, floor rh |
| 2 | 59111-61J01-000 | Frame, floor front rh | Frame, floor front rh |
| 3 | 59112-61J00-000 | Reinf, fr suspension frame | Reinf, fr suspension frame |
| 4 | 59113-61J00-000 | Extension, front frame rh | Extension, front frame rh |
| 5 | 59114-61J00-000 | Patch, cprsn rod bracket rh | Patch, cprsn rod bracket rh |
| 6 | 59116-77500-000 | Bracket, fr bk flexible hose | Bracket, fr bk flexible hose |
| 7 | 59121-61J01-000 | Frame, floor center rh | Frame, floor center rh |
| 8 | 59130-61J00-000 | Hanger, body mount front rh | Hanger, body mount front rh |
| 29 | 59141-61J01-000 | Beam, front frame front rh | Beam, front frame front rh |
| 30 | 59143-61J01-000 | Beam, front frame rear rh | Beam, front frame rear rh |
| 31 | 59144-61J01-000 | Beam, front frame rear lh | Beam, front frame rear lh |
| 32 | 59151-61J00-000 | Extension, center frame rh | Extension, center frame rh |
| 34 | 59161-61J00-000 | Cover, front frame fr rh | Cover, front frame fr rh |
| 36 | 59171-61J01-000 | Cover, front frame rr rh | Cover, front frame rr rh |
| 38 | 59181-61J00-000 | Panel rear step rh | Panel rear step rh |
| 38 | 59181-61J10-000 | Panel rear step rh | Panel rear step rh |
| 9 | 59211-61J02-000 | Frame, floor rear rh | Frame, floor rear rh |
| 10 | 59220-61J00-000 | Bracket, shock abs pivot | Bracket, shock abs pivot |
| 11 | 59230-61J00-000 | Hanger, leaf spring front rh | Hanger, leaf spring front rh |
| 12 | 59240-61J00-000 | Support, rr bump stopper | Support, rr bump stopper |
| 13 | 59250-61J01-000 | Bracket, fuel tank rear rh | Bracket, fuel tank rear rh |
| 14 | 59260-61J01-000 | Hanger, leaf spring rear | Hanger, leaf spring rear |
| 40 | 59271-61J00-000 | Gusset, leaf spring front rh | Gusset, leaf spring front rh |
| 15 | 59400-61J02-000 | Frame assy, floor lh | Frame assy, floor lh |
| 16 | 59411-61J00-000 | Frame, floor front lh | Frame, floor front lh |
| 18 | 59413-61J00-000 | Extension, front frame lh | Extension, front frame lh |
| 19 | 59414-61J00-000 | Patch, cprsn rod bracket lh | Patch, cprsn rod bracket lh |
| 21 | 59420-61J01-000 | Frame, floor center lh | Frame, floor center lh |
| 22 | 59430-61J00-000 | Hanger, body mount front lh | Hanger, body mount front lh |
| 33 | 59451-61J00-000 | Extension, center frame lh | Extension, center frame lh |
| 35 | 59461-61J00-000 | Cover, front frame fr lh | Cover, front frame fr lh |
| 37 | 59471-61J01-000 | Cover, front frame rr lh | Cover, front frame rr lh |
| 39 | 59481-61J00-000 | Panel rear step lh | Panel rear step lh |
| 39 | 59481-61J10-000 | Panel rear step lh | Panel rear step lh |
| 23 | 59511-61J02-000 | Frame, floor rear lh | Frame, floor rear lh |
| 28 | 59512-61J00-000 | Hanger, muffler rear | Hanger, muffler rear |
| 25 | 59530-61J00-000 | Hanger, leaf spring front lh | Hanger, leaf spring front lh |
| 26 | 59540-61J00-000 | Support, rr bump stopper | Support, rr bump stopper |
| 41 | 59571-61J00-000 | Gusset, leaf spring front lh | Gusset, leaf spring front lh |
| 42 | 59783-78A00-000 | Hanger, muffler inside | Hanger, muffler inside |
| 47 | 72511-86000-000 | BAND,BATTERY | BAND,BATTERY |
| 48 | 72513-67H00-000 | BOLT,BATTERY | BOLT,BATTERY |
| 44 | 72530-61J00-000 | Band, battery | Band, battery |
