Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 25 of 3,786 shared
GC416V
Suzuki APV — 25 of 3,786 shared

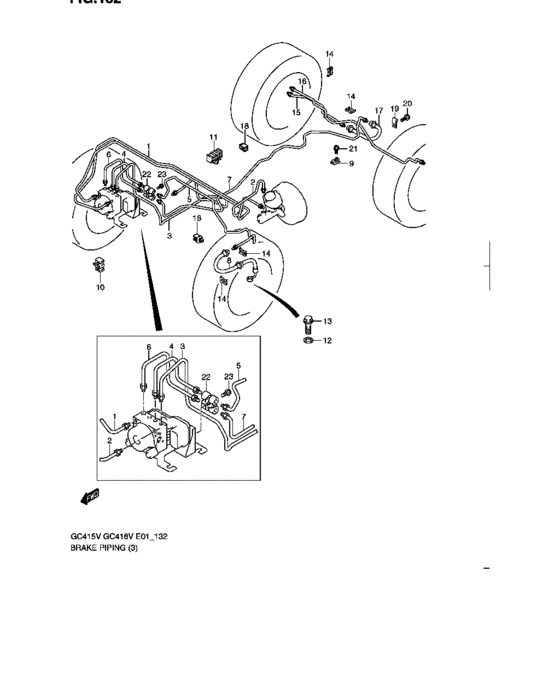

Brake piping (TYPE 2:LHD:W/ABS) 25 / 25
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 51410-60KB0-000 | Pipe, ma pri to unit | Pipe, ma pri to unit |
| 2 | 51420-60KB0-000 | Pipe, ma sec to unit | Pipe, ma sec to unit |
| 3 | 51430-60KA0-000 | Pipe, unit to fr brake hose rh | Pipe, unit to fr brake hose rh |
| 4 | 51440-60KA0-000 | Pipe, unit to joint front | Pipe, unit to joint front |
| 5 | 51445-60KB0-000 | Pipe, joint to fr brake hose,lh | Pipe, joint to fr brake hose,lh |
| 6 | 51490-60KA0-000 | Pipe, unit to joint rear | Pipe, unit to joint rear |
| 7 | 51495-60KA0-000 | Pipe, joint to rear bk | Pipe, joint to rear bk |
| 8 | 51550-60K00-000 | Hose, fr brake flexible | Hose, fr brake flexible |
| 9 | 51751-60K00-000 | Clamp, brake pipe axle no.2 | Clamp, brake pipe axle no.2 |
| 10 | 51761-61J20-000 | CLAMP,BK PIPE AXLE,R | CLAMP,BK PIPE AXLE,R |
| 10 | 51761-61J21-000 | Clamp,bk Pipe | Clamp,bk Pipe |
| 11 | 51761-61J30-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 12 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 13 | 09360-10026-000 | Union bolt | Union bolt |
| 14 | 09383-13003-000 | E-RING | E-RING |
| 15 | 51510-60K00-000 | Pipe, rr brake hose to w/c | Pipe, rr brake hose to w/c |
| 16 | 51520-60K00-000 | Pipe, rr w/c rh to lh | Pipe, rr w/c rh to lh |
| 17 | 51560-60K00-000 | Hose, rr brake flexible | Hose, rr brake flexible |
| 18 | 51761-67H10-000 | CLAMP,BK PIPE FRAME | CLAMP,BK PIPE FRAME |
| 19 | 09403-06401-000 | CLAMP | CLAMP |
| 20 | 02162-0610A-000 | SCREW | SCREW |
| 21 | 02162-0616A-000 | SCREW | SCREW |
| 21 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 22 | 51630-81K00-000 | Joint, brake 4 way | Joint, brake 4 way |
| 23 | 01550-0625A-000 | Bolt | Bolt |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 20 | 01550-0625A-000 | Bolt | Bolt |
| 19 | 02162-0610A-000 | SCREW | SCREW |
| 16 | 02162-0616A-000 | SCREW | SCREW |
| 16 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 11 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 12 | 09360-10026-000 | Union bolt | Union bolt |
| 13 | 09383-13003-000 | E-RING | E-RING |
| 17 | 09403-06401-000 | CLAMP | CLAMP |
| 1 | 51410-60KB0-000 | Pipe, ma pri to unit | Pipe, ma pri to unit |
| 2 | 51420-60KB0-000 | Pipe, ma sec to unit | Pipe, ma sec to unit |
| 3 | 51430-60KA0-000 | Pipe, unit to fr brake hose rh | Pipe, unit to fr brake hose rh |
| 4 | 51440-60KA0-000 | Pipe, unit to joint front | Pipe, unit to joint front |
| 5 | 51445-60KB0-000 | Pipe, joint to fr brake hose,lh | Pipe, joint to fr brake hose,lh |
| 6 | 51490-60KA0-000 | Pipe, unit to joint rear | Pipe, unit to joint rear |
| 7 | 51495-60KA0-000 | Pipe, joint to rear bk | Pipe, joint to rear bk |
| 15 | 51510-60K00-000 | Pipe, rr brake hose to w/c | Pipe, rr brake hose to w/c |
| 16 | 51520-60K00-000 | Pipe, rr w/c rh to lh | Pipe, rr w/c rh to lh |
| 8 | 51550-60K00-000 | Hose, fr brake flexible | Hose, fr brake flexible |
| 17 | 51560-60K00-000 | Hose, rr brake flexible | Hose, rr brake flexible |
| 22 | 51630-81K00-000 | Joint, brake 4 way | Joint, brake 4 way |
| 8 | 51751-60K00-000 | Clamp, brake pipe axle no.2 | Clamp, brake pipe axle no.2 |
| 9 | 51761-61J20-000 | CLAMP,BK PIPE AXLE,R | CLAMP,BK PIPE AXLE,R |
| 9 | 51761-61J21-000 | Clamp,bk Pipe | Clamp,bk Pipe |
| 10 | 51761-61J30-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 8 | 51761-67H10-000 | CLAMP,BK PIPE FRAME | CLAMP,BK PIPE FRAME |
