Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 29 of 3,786 shared
GC416V
Suzuki APV — 29 of 3,786 shared

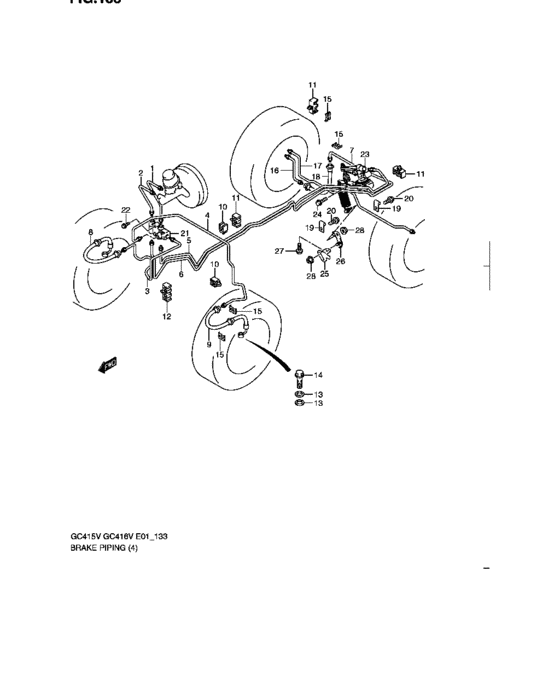

Brake piping (TYPE 1:RHD:,Australia,Sinagpore,:VAN,GV) 29 / 29
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 51410-61J00-000 | Pipe, ma pri to joint | Pipe, ma pri to joint |
| 2 | 51420-61J00-000 | Pipe, ma sec to joint | Pipe, ma sec to joint |
| 3 | 51430-61J00-000 | Pipe, joint to fr bk hose rh | Pipe, joint to fr bk hose rh |
| 4 | 51440-61J00-000 | Pipe, joint to fr bk hose lh | Pipe, joint to fr bk hose lh |
| 5 | 51450-61J00-000 | Pipe, joint to lspv pri | Pipe, joint to lspv pri |
| 6 | 51460-61J00-000 | Pipe, joint to lspv sec | Pipe, joint to lspv sec |
| 7 | 51490-61J00-000 | Pipe, lspv to rr bk hose | Pipe, lspv to rr bk hose |
| 8 | 51540-61J00-000 | Hose, fr brake flexible rh | Hose, fr brake flexible rh |
| 9 | 51550-61J00-000 | Hose, fr brake flexible lh | Hose, fr brake flexible lh |
| 10 | 51761-67H10-000 | CLAMP,BK PIPE FRAME | CLAMP,BK PIPE FRAME |
| 11 | 51761-61J20-000 | CLAMP,BK PIPE AXLE,R | CLAMP,BK PIPE AXLE,R |
| 11 | 51761-61J21-000 | Clamp,bk Pipe | Clamp,bk Pipe |
| 12 | 51761-61J30-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 13 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 14 | 09360-10026-000 | Union bolt | Union bolt |
| 15 | 09383-13003-000 | E-RING | E-RING |
| 16 | 51510-61J00-000 | Pipe, rr bk hose to w/c rh | Pipe, rr bk hose to w/c rh |
| 17 | 51520-61J10-000 | Pipe, rr w/c rh to lh | Pipe, rr w/c rh to lh |
| 18 | 51560-61J00-000 | Hose, rr brake flexible | Hose, rr brake flexible |
| 19 | 09403-06401-000 | CLAMP | CLAMP |
| 20 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 21 | 51650-83040-000 | JOINT,6WAY BRAKE | JOINT,6WAY BRAKE |
| 22 | 01550-0625A-000 | Bolt | Bolt |
| 23 | 51930-61J00-000 | VALVE ASSY,L.S.P. | VALVE ASSY,L.S.P. |
| 24 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 25 | 51955-61J01-000 | Bracket, lspv axle | Bracket, lspv axle |
| 26 | 51956-61J00-000 | Bracket, lspv spring | Bracket, lspv spring |
| 27 | 01550-0812A-000 | Bolt | Bolt |
| 28 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 20 | 01550-0625A-000 | Bolt | Bolt |
| 27 | 01550-0812A-000 | Bolt | Bolt |
| 16 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 28 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 10 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 11 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 12 | 09360-10026-000 | Union bolt | Union bolt |
| 13 | 09383-13003-000 | E-RING | E-RING |
| 17 | 09403-06401-000 | CLAMP | CLAMP |
| 1 | 51410-61J00-000 | Pipe, ma pri to joint | Pipe, ma pri to joint |
| 2 | 51420-61J00-000 | Pipe, ma sec to joint | Pipe, ma sec to joint |
| 3 | 51430-61J00-000 | Pipe, joint to fr bk hose rh | Pipe, joint to fr bk hose rh |
| 4 | 51440-61J00-000 | Pipe, joint to fr bk hose lh | Pipe, joint to fr bk hose lh |
| 5 | 51450-61J00-000 | Pipe, joint to lspv pri | Pipe, joint to lspv pri |
| 6 | 51460-61J00-000 | Pipe, joint to lspv sec | Pipe, joint to lspv sec |
| 7 | 51490-61J00-000 | Pipe, lspv to rr bk hose | Pipe, lspv to rr bk hose |
| 14 | 51510-61J00-000 | Pipe, rr bk hose to w/c rh | Pipe, rr bk hose to w/c rh |
| 15 | 51520-61J10-000 | Pipe, rr w/c rh to lh | Pipe, rr w/c rh to lh |
| 6 | 51540-61J00-000 | Hose, fr brake flexible rh | Hose, fr brake flexible rh |
| 7 | 51550-61J00-000 | Hose, fr brake flexible lh | Hose, fr brake flexible lh |
| 16 | 51560-61J00-000 | Hose, rr brake flexible | Hose, rr brake flexible |
| 21 | 51650-83040-000 | JOINT,6WAY BRAKE | JOINT,6WAY BRAKE |
| 9 | 51761-61J20-000 | CLAMP,BK PIPE AXLE,R | CLAMP,BK PIPE AXLE,R |
| 9 | 51761-61J21-000 | Clamp,bk Pipe | Clamp,bk Pipe |
| 10 | 51761-61J30-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 8 | 51761-67H10-000 | CLAMP,BK PIPE FRAME | CLAMP,BK PIPE FRAME |
| 23 | 51930-61J00-000 | VALVE ASSY,L.S.P. | VALVE ASSY,L.S.P. |
| 25 | 51955-61J01-000 | Bracket, lspv axle | Bracket, lspv axle |
| 26 | 51956-61J00-000 | Bracket, lspv spring | Bracket, lspv spring |
