Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 16 of 3,786 shared
GC416V
Suzuki APV — 16 of 3,786 shared

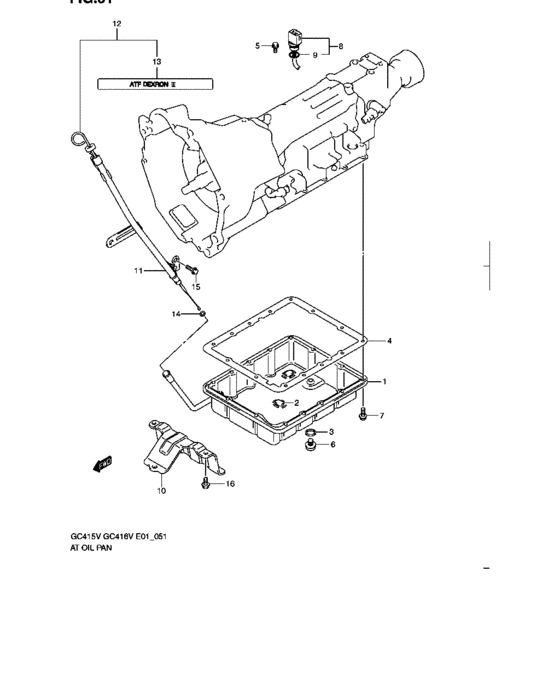

At oil pan (AT) 16 / 16
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 24760-61J10-000 | PAN,T/M OIL | PAN,T/M OIL |
| 2 | 24745-57B00-000 | MAGNET,T/M OIL PAN | MAGNET,T/M OIL PAN |
| 3 | 24781-57B00-000 | GASKET,DRAIN PLUG | GASKET,DRAIN PLUG |
| 4 | 24782-57B00-000 | GASKET,T/M OIL PAN | GASKET,T/M OIL PAN |
| 5 | 24813-57B00-000 | Bolt | Bolt |
| 6 | 24823-79C10-000 | PLUG,DRAIN | PLUG,DRAIN |
| 7 | 09117-06002-000 | BOLT(6X14) | BOLT(6X14) |
| 8 | 24892-61J10-000 | HARNESS,SOLENOID WIRE | HARNESS,SOLENOID WIRE |
| 9 | 29726-57B00-000 | O-RING,SOL WIRE HARN | O-RING,SOL WIRE HARN |
| 10 | 22891-61J10-000 | Guard, oil pan | Guard, oil pan |
| 11 | 22940-61J11-000 | TUBE,OIL FILLER | TUBE,OIL FILLER |
| 12 | 22950-61J12-000 | GAUGE ASSY,OIL | GAUGE ASSY,OIL |
| 13 | 24839-61A31-000 | EMBLEM,ATF | EMBLEM,ATF |
| 14 | 09280-10016-000 | O RING(D:1.9,ID:9.8) | O RING(D:1.9,ID:9.8) |
| 15 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 16 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 15 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 16 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 7 | 09117-06002-000 | BOLT(6X14) | BOLT(6X14) |
| 14 | 09280-10016-000 | O RING(D:1.9,ID:9.8) | O RING(D:1.9,ID:9.8) |
| 10 | 22891-61J10-000 | Guard, oil pan | Guard, oil pan |
| 11 | 22940-61J11-000 | TUBE,OIL FILLER | TUBE,OIL FILLER |
| 12 | 22950-61J12-000 | GAUGE ASSY,OIL | GAUGE ASSY,OIL |
| 2 | 24745-57B00-000 | MAGNET,T/M OIL PAN | MAGNET,T/M OIL PAN |
| 1 | 24760-61J10-000 | PAN,T/M OIL | PAN,T/M OIL |
| 3 | 24781-57B00-000 | GASKET,DRAIN PLUG | GASKET,DRAIN PLUG |
| 5 | 24782-57B00-000 | GASKET,T/M OIL PAN | GASKET,T/M OIL PAN |
| 5 | 24813-57B00-000 | Bolt | Bolt |
| 6 | 24823-79C10-000 | PLUG,DRAIN | PLUG,DRAIN |
| 13 | 24839-61A31-000 | EMBLEM,ATF | EMBLEM,ATF |
| 8 | 24892-61J10-000 | HARNESS,SOLENOID WIRE | HARNESS,SOLENOID WIRE |
| 9 | 29726-57B00-000 | O-RING,SOL WIRE HARN | O-RING,SOL WIRE HARN |
