Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 24 of 3,786 shared
GC416V
Suzuki APV — 24 of 3,786 shared

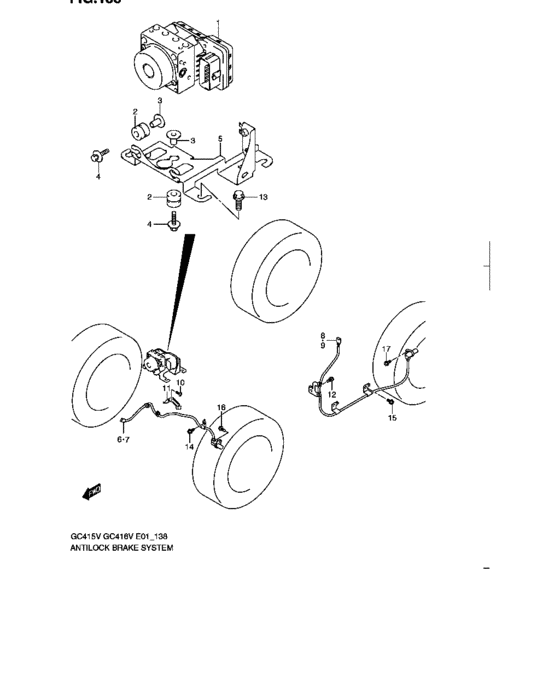

Anti lock brake system (ABS) 24 / 24
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 56110-60KA0-000 | Actuator assy,abs | Actuator assy,abs |
| 1 | 56110-60KA1-000 | ACTUATOR ASSY,ABS | ACTUATOR ASSY,ABS |
| 2 | 56112-60K00-000 | Damper,actuator mount | Damper,actuator mount |
| 2 | 56112-60K01-000 | DAMPER,ACTUATOR MOUNT | DAMPER,ACTUATOR MOUNT |
| 2 | 56113-60K01-000 | SPACER,ACTUATOR MOUNT | SPACER,ACTUATOR MOUNT |
| 3 | 56113-60K00-000 | SPACER,ACTUATOR MOUNT | SPACER,ACTUATOR MOUNT |
| 4 | 09116-06146-000 | BOLT(6X25) - Bolt (6x20) | BOLT(6X25) - Bolt (6x20) |
| 4 | 09116-06150-000 | BOLT(6X25) - Bolt, air cleaner chamber | BOLT(6X25) - Bolt, air cleaner chamber |
| 5 | 56160-60K00-000 | Bracket, actuator | Bracket, actuator |
| 6 | 56210-60K00-000 | SENSOR,FR WHEEL,R | SENSOR,FR WHEEL,R |
| 6 | 56210-60K01-000 | SENSOR,FR WHEEL,R | SENSOR,FR WHEEL,R |
| 7 | 56220-60K00-000 | SENSOR,FR WHEEL,L | SENSOR,FR WHEEL,L |
| 7 | 56220-60K01-000 | SENSOR,FR WHEEL,L | SENSOR,FR WHEEL,L |
| 8 | 56310-60K00-000 | SENSOR,RR WHEEL,R | SENSOR,RR WHEEL,R |
| 8 | 56310-60K01-000 | SENSOR,RR WHEEL,R | SENSOR,RR WHEEL,R |
| 9 | 56320-60K00-000 | SENSOR,RR WHEEL,L | SENSOR,RR WHEEL,L |
| 9 | 56320-60K01-000 | SENSOR,RR WHEEL,L | SENSOR,RR WHEEL,L |
| 10 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 11 | 09148-06006-000 | NUT - Nut, side | NUT - Nut, side |
| 12 | 01551-0812A-000 | Bolt | Bolt |
| 13 | 01551-0816C-000 | Bolt | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 16 | 02162-0616A-000 | SCREW | SCREW |
| 16 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 12 | 01551-0812A-000 | Bolt | Bolt |
| 13 | 01551-0816C-000 | Bolt | Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 16 | 02162-0616A-000 | SCREW | SCREW |
| 16 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 4 | 09116-06146-000 | BOLT(6X25) - Bolt (6x20) | BOLT(6X25) - Bolt (6x20) |
| 4 | 09116-06150-000 | BOLT(6X25) - Bolt, air cleaner chamber | BOLT(6X25) - Bolt, air cleaner chamber |
| 10 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 28 | 09148-06006-000 | NUT - Nut, side | NUT - Nut, side |
| 1 | 56110-60KA0-000 | Actuator assy,abs | Actuator assy,abs |
| 1 | 56110-60KA1-000 | ACTUATOR ASSY,ABS | ACTUATOR ASSY,ABS |
| 2 | 56112-60K00-000 | Damper,actuator mount | Damper,actuator mount |
| 2 | 56112-60K01-000 | DAMPER,ACTUATOR MOUNT | DAMPER,ACTUATOR MOUNT |
| 3 | 56113-60K00-000 | SPACER,ACTUATOR MOUNT | SPACER,ACTUATOR MOUNT |
| 2 | 56113-60K01-000 | SPACER,ACTUATOR MOUNT | SPACER,ACTUATOR MOUNT |
| 5 | 56160-60K00-000 | Bracket, actuator | Bracket, actuator |
| 6 | 56210-60K00-000 | SENSOR,FR WHEEL,R | SENSOR,FR WHEEL,R |
| 6 | 56210-60K01-000 | SENSOR,FR WHEEL,R | SENSOR,FR WHEEL,R |
| 7 | 56220-60K00-000 | SENSOR,FR WHEEL,L | SENSOR,FR WHEEL,L |
| 7 | 56220-60K01-000 | SENSOR,FR WHEEL,L | SENSOR,FR WHEEL,L |
| 8 | 56310-60K00-000 | SENSOR,RR WHEEL,R | SENSOR,RR WHEEL,R |
| 8 | 56310-60K01-000 | SENSOR,RR WHEEL,R | SENSOR,RR WHEEL,R |
| 9 | 56320-60K00-000 | SENSOR,RR WHEEL,L | SENSOR,RR WHEEL,L |
| 9 | 56320-60K01-000 | SENSOR,RR WHEEL,L | SENSOR,RR WHEEL,L |
