Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 33 of 3,786 shared
GC416V
Suzuki APV — 33 of 3,786 shared

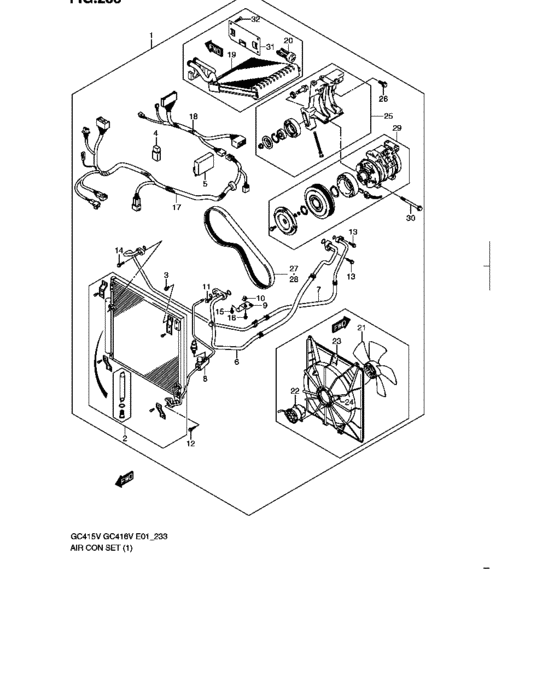

Air con set (TYPE 1:OPT) 33 / 33
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 95000-61J50-000 | Air conditioner set | Air conditioner set |
| 1 | 95000-61J10-000 | Air conditioner set | Air conditioner set |
| 1 | 95000-61J00-000 | Air conditioner set | Air conditioner set |
| 2 | 95310-61J00-000 | Condenser assy | Condenser assy |
| 3 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 4 | 38860-70E20-000 | RELAY ASSY,HORN | RELAY ASSY,HORN |
| 5 | 95510-61J01-000 | Controller, air con | Controller, air con |
| 6 | 95711-61J01-000 | Hose, suction | Hose, suction |
| 7 | 95721-61J01-000 | Hose, discharge | Hose, discharge |
| 8 | 95731-61J00-000 | Pipe, condenser outlet | Pipe, condenser outlet |
| 9 | 95781-61J01-000 | Stay, pipe clamp | Stay, pipe clamp |
| 10 | 09403-08406-000 | CLAMP | CLAMP |
| 11 | 01550-0620A-000 | Bolt | Bolt |
| 12 | 01550-0625A-000 | Bolt | Bolt |
| 13 | 01550-0630A-000 | Bolt | Bolt |
| 17 | 95531-61J00-000 | Harness, engine room | Harness, engine room |
| 17 | 95531-61J10-000 | Harness, engine room | Harness, engine room |
| 18 | 95532-61J00-000 | Harness, room | Harness, room |
| 19 | 95410-61J90-000 | Evaporator | Evaporator |
| 20 | 95521-61J10-000 | Knob, air con switch | Knob, air con switch |
| 21 | 17111-61J10-000 | Fan, cooling | Fan, cooling |
| 22 | 17120-61J10-000 | Motor assy, fan | Motor assy, fan |
| 23 | 17760-61J10-000 | Shroud | Shroud |
| 24 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 24 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 25 | 95110-61J00-000 | Bracket, compressor | Bracket, compressor |
| 26 | 01550-1025A-000 | Bolt - Bolt, drive gear | Bolt - Bolt, drive gear |
| 27 | 95141-61J00-000 | V belt - L:850 | V belt - L:850 |
| 28 | 95141-61J10-000 | V belt - L:1850 | V belt - L:1850 |
| 29 | 95200-61J00-000 | Compressor | Compressor |
| 30 | 01550-0880A-000 | Bolt | Bolt |
| 31 | 95519-61J00-000 | Bracket, controller | Bracket, controller |
| 32 | 03112-0416A-000 | SCREW | SCREW |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 19 | 01550-0620A-000 | Bolt | Bolt |
| 20 | 01550-0625A-000 | Bolt | Bolt |
| 21 | 01550-0630A-000 | Bolt | Bolt |
| 30 | 01550-0880A-000 | Bolt | Bolt |
| 26 | 01550-1025A-000 | Bolt - Bolt, drive gear | Bolt - Bolt, drive gear |
| 24 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 24 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 32 | 03112-0416A-000 | SCREW | SCREW |
| 18 | 09403-08406-000 | CLAMP | CLAMP |
| 21 | 17111-61J10-000 | Fan, cooling | Fan, cooling |
| 22 | 17120-61J10-000 | Motor assy, fan | Motor assy, fan |
| 23 | 17760-61J10-000 | Shroud | Shroud |
| 3 | 38860-70E20-000 | RELAY ASSY,HORN | RELAY ASSY,HORN |
| 1 | 95000-61J00-000 | Air conditioner set | Air conditioner set |
| 1 | 95000-61J10-000 | Air conditioner set | Air conditioner set |
| 1 | 95000-61J50-000 | Air conditioner set | Air conditioner set |
| 25 | 95110-61J00-000 | Bracket, compressor | Bracket, compressor |
| 27 | 95141-61J00-000 | V belt - L:850 | V belt - L:850 |
| 28 | 95141-61J10-000 | V belt - L:1850 | V belt - L:1850 |
| 29 | 95200-61J00-000 | Compressor | Compressor |
| 1 | 95310-61J00-000 | Condenser assy | Condenser assy |
| 19 | 95410-61J90-000 | Evaporator | Evaporator |
| 4 | 95510-61J01-000 | Controller, air con | Controller, air con |
| 31 | 95519-61J00-000 | Bracket, controller | Bracket, controller |
| 20 | 95521-61J10-000 | Knob, air con switch | Knob, air con switch |
| 19 | 95531-61J00-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-61J10-000 | Harness, engine room | Harness, engine room |
| 21 | 95532-61J00-000 | Harness, room | Harness, room |
| 6 | 95711-61J01-000 | Hose, suction | Hose, suction |
| 7 | 95721-61J01-000 | Hose, discharge | Hose, discharge |
| 8 | 95731-61J00-000 | Pipe, condenser outlet | Pipe, condenser outlet |
| 14 | 95781-61J01-000 | Stay, pipe clamp | Stay, pipe clamp |
