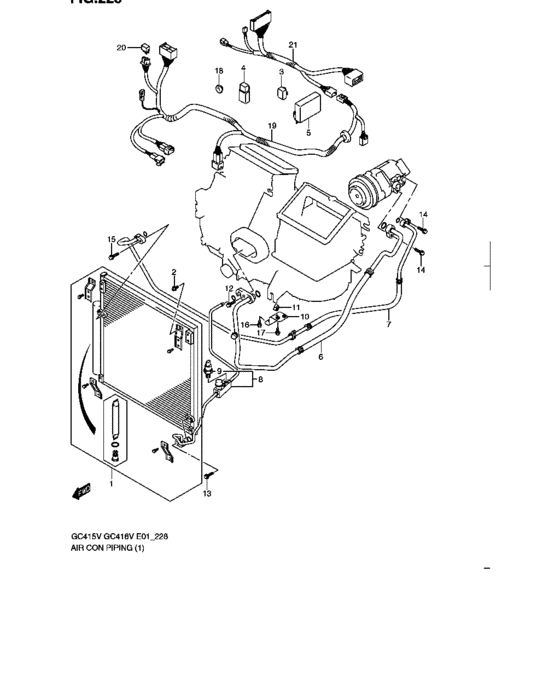

Air con piping (W/SINGLE AIR CON) 23 / 23
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 95310-61J00-000 | Condenser assy | Condenser assy |
| 2 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 3 | 37285-75F00-000 | CAP,OPTION SW HOLE | CAP,OPTION SW HOLE |
| 4 | 38860-70E20-000 | RELAY ASSY,HORN | RELAY ASSY,HORN |
| 5 | 95510-61J01-000 | Controller, air con | Controller, air con |
| 6 | 95711-61J01-000 | Hose, suction | Hose, suction |
| 6 | 95711-61J20-000 | Hose, suction | Hose, suction |
| 7 | 95721-61J01-000 | Hose, discharge | Hose, discharge |
| 7 | 95721-61J20-000 | Hose, discharge | Hose, discharge |
| 8 | 95731-61J00-000 | Pipe, condenser outlet | Pipe, condenser outlet |
| 9 | 95526-78F00-000 | SWITCH,TRIPLE PRESSURE | SWITCH,TRIPLE PRESSURE |
| 10 | 95781-61J01-000 | Stay, pipe clamp | Stay, pipe clamp |
| 11 | 09403-08406-000 | CLAMP | CLAMP |
| 12 | 01550-0620A-000 | Bolt | Bolt |
| 13 | 01550-0625A-000 | Bolt | Bolt |
| 14 | 01550-0630A-000 | Bolt | Bolt |
| 18 | 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness | CAP(OD:28.5) - Cap, air con harness |
| 19 | 95531-61J10-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-60K00-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-61J00-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-60K10-000 | Harness, engine room | Harness, engine room |
| 20 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 21 | 95532-61J00-000 | Harness, room | Harness, room |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 19 | 01550-0620A-000 | Bolt | Bolt |
| 20 | 01550-0625A-000 | Bolt | Bolt |
| 21 | 01550-0630A-000 | Bolt | Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 29 | 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness | CAP(OD:28.5) - Cap, air con harness |
| 18 | 09403-08406-000 | CLAMP | CLAMP |
| 3 | 37285-75F00-000 | CAP,OPTION SW HOLE | CAP,OPTION SW HOLE |
| 3 | 38860-70E20-000 | RELAY ASSY,HORN | RELAY ASSY,HORN |
| 20 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 1 | 95310-61J00-000 | Condenser assy | Condenser assy |
| 4 | 95510-61J01-000 | Controller, air con | Controller, air con |
| 9 | 95526-78F00-000 | SWITCH,TRIPLE PRESSURE | SWITCH,TRIPLE PRESSURE |
| 19 | 95531-60K00-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-60K10-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-61J00-000 | Harness, engine room | Harness, engine room |
| 19 | 95531-61J10-000 | Harness, engine room | Harness, engine room |
| 21 | 95532-61J00-000 | Harness, room | Harness, room |
| 6 | 95711-61J01-000 | Hose, suction | Hose, suction |
| 6 | 95711-61J20-000 | Hose, suction | Hose, suction |
| 7 | 95721-61J01-000 | Hose, discharge | Hose, discharge |
| 7 | 95721-61J20-000 | Hose, discharge | Hose, discharge |
| 8 | 95731-61J00-000 | Pipe, condenser outlet | Pipe, condenser outlet |
| 14 | 95781-61J01-000 | Stay, pipe clamp | Stay, pipe clamp |
