Search › Compare › GC415V × GC416V

GC415V × GC416V

Shared 32 / Total 3,786 · Jaccard 100%
GC415V Suzuki APV — 32 of 3,786 shared
GC416V Suzuki APV — 32 of 3,786 shared

← Back to categories

32 items

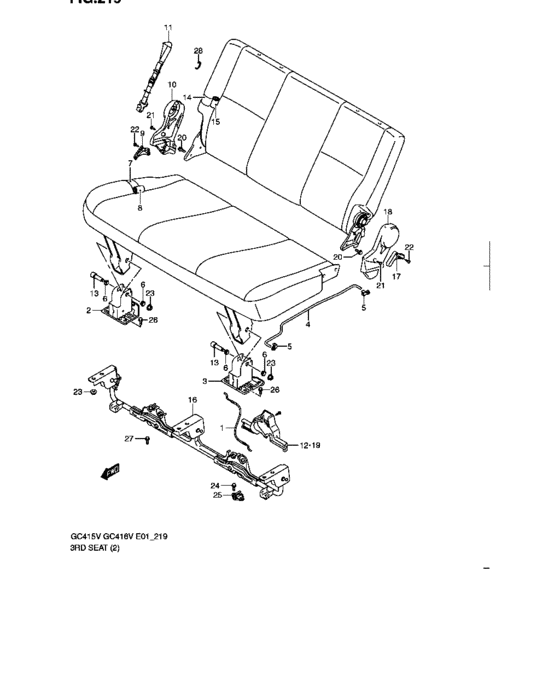

3rd seat (TYPE 2:GA,GL) 32 / 32
GC415V 3rd seat (TYPE 2:GA,GL)
GC416V 3rd seat (TYPE 2:GA,GL)
# OEM GC415V GC416V
1 86490-61JA0-000 Cable, seat lock Cable, seat lock
2 86640-60KA0-000 Leg, inner rh Leg, inner rh
3 86650-60KA0-000 Leg, outer lh Leg, outer lh
4 86876-61JA0-000 Rod Rod
5 86877-61JA0-000 Bush Bush
6 86878-61JA0-000 Bush Bush
7 87105-61J00-000 Cushion sub assy Cushion sub assy
8 87180-61J00-BEG Trim, cushion Trim, cushion
8 87180-61J00-EUM Trim, cushion Trim, cushion
9 87211-61JA0-P4Z Knob, reclining rh - Gray Knob, reclining rh - Gray
9 87211-61JA0-R8H Knob, reclining rh - Beige Knob, reclining rh - Beige
10 87221-61JA0-P4Z Cover, reclining outside - Gray Cover, reclining outside - Gray
10 87221-61JA0-R8H Cover, reclining outside - Beige Cover, reclining outside - Beige
11 87270-61JA0-000 Band Band
12 87285-61JA0-000 Cover, lock Cover, lock
13 87288-61JA0-000 Pin Pin
14 87305-60K00-000 Back sub assy Back sub assy
15 87380-60K00-BEG Trim, back Trim, back
15 87380-60K00-EUM Trim, back Trim, back
16 87460-61J00-000 Lock assy Lock assy
17 87711-61JA0-P4Z Knob, reclining lh - Gray Knob, reclining lh - Gray
17 87711-61JA0-R8H Knob, reclining lh - Beige Knob, reclining lh - Beige
18 87721-61JA0-P4Z Cover, reclining outside - Gray Cover, reclining outside - Gray
18 87721-61JA0-R8H Cover, reclining outside - Beige Cover, reclining outside - Beige
19 87785-61J00-000 Cover, lock lh Cover, lock lh
20 01550-1020A-000 Bolt - Bolt, bal sprocket Bolt - Bolt, bal sprocket
21 03241-0508A-000 SCREW SCREW
22 03211-0508B-000 SCREW SCREW
23 08316-1010A-000 NUT - Nut, kick starter NUT - Nut, kick starter
24 87870-76AC0-000 STRIKER,3RD STRIKER,3RD
25 01551-1020A-000 Bolt Bolt
28 09387-19001-000 RING RING
