Search › Compare › GC415V × GC416V

GC415V × GC416V

Shared 52 / Total 3,786 · Jaccard 100%
GC415V Suzuki APV — 52 of 3,786 shared
GC416V Suzuki APV — 52 of 3,786 shared

← Back to categories

52 items

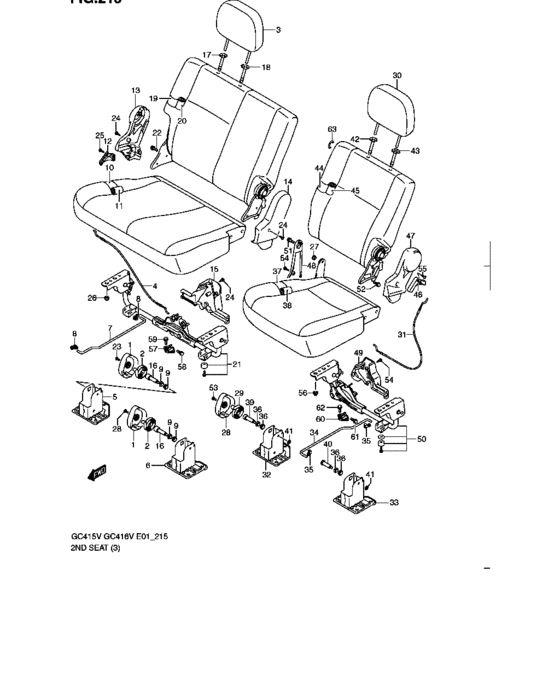

2nd seat (TYPE 2:GA,GL) 52 / 52
GC415V 2nd seat (TYPE 2:GA,GL)
GC416V 2nd seat (TYPE 2:GA,GL)
# OEM GC415V GC416V
1 86286-61JA0-000 Cover, leg spring Cover, leg spring
2 86288-61JA0-000 Spring, leg Spring, leg
3 86401-60KA0-BEH Headrestraint assy - Gray Headrestraint assy - Gray
3 86401-60KA0-EUN Headrestraint assy Headrestraint assy
3 86401-60KC0-EUN Headrestraint assy Headrestraint assy
4 86490-61JA0-000 Cable, seat lock Cable, seat lock
5 86620-60KA0-000 Leg, inner rh Leg, inner rh
6 86630-60KA0-000 Leg, outer rh Leg, outer rh
7 86876-61JA0-000 Rod Rod
8 86877-61JA0-000 Bush Bush
9 86878-61JA0-000 Bush Bush
10 87105-61JJ0-000 Cushion sub assy, rh Cushion sub assy, rh
11 87180-61JJ0-CRV Trim, cushion rh Trim, cushion rh
11 87180-61JJ0-EUM Trim, cushion rh Trim, cushion rh
12 87211-61JA0-P4Z Knob, reclining rh - Gray Knob, reclining rh - Gray
12 87211-61JA0-R8H Knob, reclining rh - Beige Knob, reclining rh - Beige
13 87221-61JA0-P4Z Cover, reclining outside - Gray Cover, reclining outside - Gray
13 87221-61JA0-R8H Cover, reclining outside - Beige Cover, reclining outside - Beige
14 87241-61JJ0-P4Z Cover, reclining inside - Gray Cover, reclining inside - Gray
14 87241-61JJ0-R8H Cover, reclining inside - Beige Cover, reclining inside - Beige
15 87285-61JA0-000 Cover, lock Cover, lock
16 87287-61JA0-000 Pin Pin
17 85341-58J00-P4Z GUIDE,HEADRESTRAINT GUIDE,HEADRESTRAINT
18 85840-58J00-P4Z GUIDE,HEADRESTRAINT GUIDE,HEADRESTRAINT
19 87305-60KK0-000 Back sub assy, rh Back sub assy, rh
20 87380-60KK0-CRV Trim, back rh Trim, back rh
20 87380-60KK0-EUM Trim, back rh Trim, back rh
21 87460-61JA0-000 Lock assy, rh Lock assy, rh
22 01550-1020A-000 Bolt - Bolt, bal sprocket Bolt - Bolt, bal sprocket
23 02142-0612A-000 SCREW SCREW
24 03241-0508A-000 SCREW SCREW
25 03211-0508B-000 SCREW SCREW
26 08316-1010A-000 NUT - Nut, kick starter NUT - Nut, kick starter
27 85293-79A00-000 BUSH,FR BACK FIX - Bush, fr back fix BUSH,FR BACK FIX - Bush, fr back fix
32 86650-60KA0-000 Leg, outer lh Leg, outer lh
33 86640-60KA0-000 Leg, inner rh Leg, inner rh
37 87106-61JA0-000 Cushion sub assy, lh Cushion sub assy, lh
38 87680-61JA0-CRV Trim, cushion lh Trim, cushion lh
38 87680-61JA0-EUM Trim, cushion lh Trim, cushion lh
40 87288-61JA0-000 Pin Pin
44 87306-60KB0-000 Back sub assy, lh Back sub assy, lh
45 87880-60KB0-CRV Trim, back lh Trim, back lh
45 87880-60KB0-EUM Trim, back lh Trim, back lh
46 87711-61JA0-P4Z Knob, reclining lh - Gray Knob, reclining lh - Gray
47 87721-61JA0-P4Z Cover, reclining outside - Gray Cover, reclining outside - Gray
48 87781-61JA0-P4Z Cover, back hinge lh - Gray Cover, back hinge lh - Gray
49 87785-61JA0-000 Cover, lock lh Cover, lock lh
50 87960-60KA0-000 Lock assy, lh Lock assy, lh
51 09116-06109-000 BOLT(6X12) BOLT(6X12)
57 87870-76AC0-000 STRIKER,3RD STRIKER,3RD
58 01551-1020A-000 Bolt Bolt
63 09387-19001-000 RING RING
