Search › Compare › EA11R × EA21R
EA11R
Suzuki CAPPUCCINO — 19 of 2,380 shared
EA21R
Suzuki CAPPUCCINO — 19 of 2,428 shared

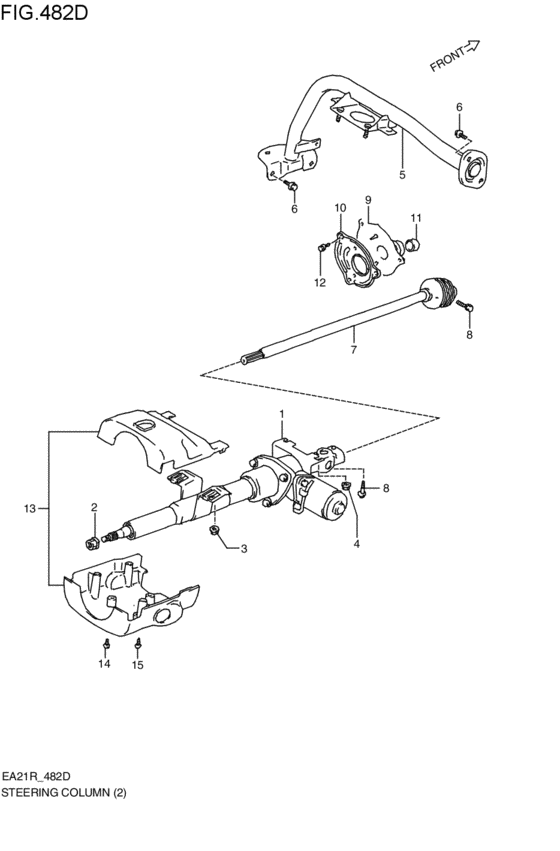

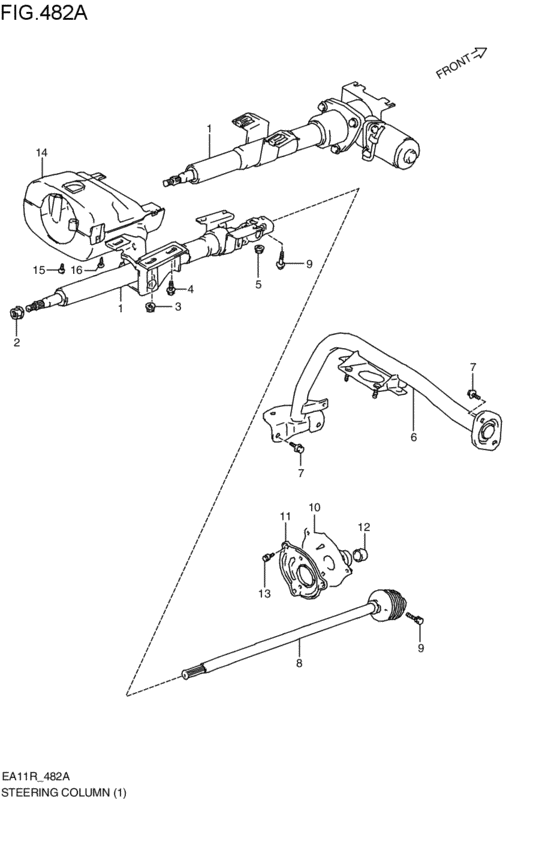

steering column (エアバッグナシ; STD,SA,SB,SC; 1991-10-01~1995-05-01) 19 / 22
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 2 | 09159-12025-000 | NUT | NUT |
| 3 | 09159-08069-000 | Nut | Nut |
| 3 | 09159-08135-000 | NUT | NUT |
| 4 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 4 | 01550-0816B-000 | Bolt | Bolt |
| 4 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 5 | 08316-10083-000 | Nut | Nut |
| 5 | 08316-1008B-000 | NUT | NUT |
| 6 | 75420-80F10-000 | MEMBER,STRG SUPPORT | MEMBER,STRG SUPPORT |
| 8 | 48220-80F00-000 | JOINT,STRG SHAFT | JOINT,STRG SHAFT |
| 9 | 09117-08053-000 | BOLT(8X30) | BOLT(8X30) |
| 10 | 48481-80F00-000 | BOOT,STRG MDL SHAFT | BOOT,STRG MDL SHAFT |
| 11 | 48482-80F00-000 | プレート,ステアリングミドルシャフトブーツ | プレート,ステアリングミドルシャフトブーツ |
| 12 | 48483-80F00-000 | Bush,strg mdl shaft boot | Bush,strg mdl shaft boot |
| 13 | 01550-06123-000 | Bolt | Bolt |
| 13 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 13 | 01550-0612A-000 | Bolt | Bolt |
| 16 | 03211-05163-000 | Screw - Tapping screw | Screw - Tapping screw |
| 16 | 03211-0516A-000 | SCREW | SCREW |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 31 | 01550-06123-000 | Bolt | Bolt |
| 31 | 01550-0612A-000 | Bolt | Bolt |
| 31 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 5 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 5 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 5 | 01550-0816B-000 | Bolt | Bolt |
| 35 | 03211-05163-000 | Screw - Tapping screw | Screw - Tapping screw |
| 35 | 03211-0516A-000 | SCREW | SCREW |
| 33 | 08316-10083-000 | Nut | Nut |
| 33 | 08316-1008B-000 | NUT | NUT |
| 9 | 09117-08053-000 | BOLT(8X30) | BOLT(8X30) |
| 14 | 09159-08069-000 | Nut | Nut |
| 14 | 09159-08135-000 | NUT | NUT |
| 2 | 09159-12025-000 | NUT | NUT |
| 8 | 48220-80F00-000 | JOINT,STRG SHAFT | JOINT,STRG SHAFT |
| 10 | 48481-80F00-000 | BOOT,STRG MDL SHAFT | BOOT,STRG MDL SHAFT |
| 11 | 48482-80F00-000 | プレート,ステアリングミドルシャフトブーツ | プレート,ステアリングミドルシャフトブーツ |
| 12 | 48483-80F00-000 | Bush,strg mdl shaft boot | Bush,strg mdl shaft boot |
| 6 | 75420-80F10-000 | MEMBER,STRG SUPPORT | MEMBER,STRG SUPPORT |
