Search › Compare › EA11R × EA21R
EA11R
Suzuki CAPPUCCINO — 15 of 2,380 shared
EA21R
Suzuki CAPPUCCINO — 15 of 2,428 shared

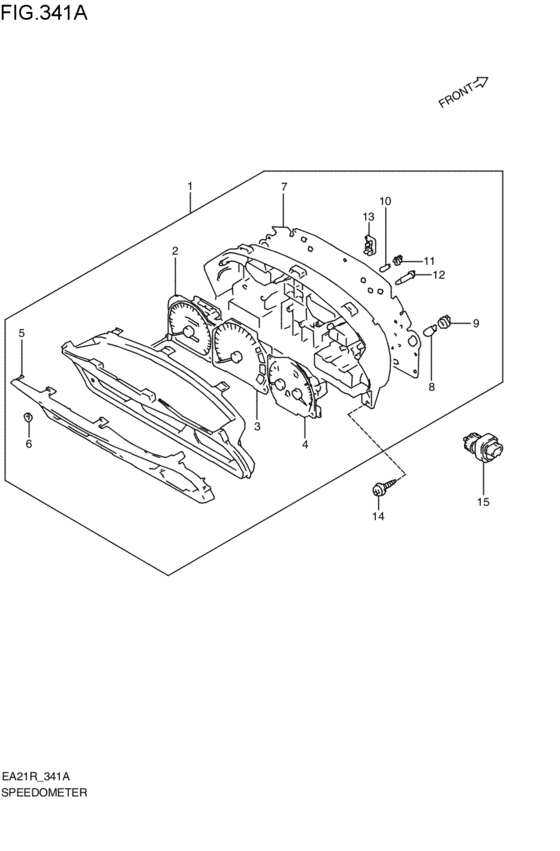

speed meter (1991-10-01~1995-05-01) 15 / 16
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 1 | 34100-80F23-000 | Speedometer assy,comb | Speedometer assy,comb |
| 2 | 34120-80F21-000 | BODY ASSY,SPEEDOMETER | BODY ASSY,SPEEDOMETER |
| 3 | 34220-80F20-000 | BODY ASSY,TACHOMETER | BODY ASSY,TACHOMETER |
| 5 | 34112-80F20-000 | GLASS,METER WINDOW | GLASS,METER WINDOW |
| 6 | 34145-60B00-000 | GROMMET | GROMMET |
| 7 | 34152-80F20-000 | Plate,printed | Plate,printed |
| 8 | 34171-50E10-000 | BULB,12V 3.4W | BULB,12V 3.4W |
| 9 | 34172-50E10-000 | SOCKET | SOCKET |
| 10 | 09471-12055-000 | BULB(14V1.4W,T5) | BULB(14V1.4W,T5) |
| 11 | 34175-78900-000 | SOCKET | SOCKET |
| 12 | 34171-68F70-000 | BULB,12V 1.12W | BULB,12V 1.12W |
| 13 | 34155-50E10-000 | CIRCUIT,ABS WARNING | CIRCUIT,ABS WARNING |
| 14 | 03541-05203-000 | Screw | Screw |
| 14 | 03541-0520A-000 | SCREW | SCREW |
| 15 | 34910-80F00-000 | SENSOR ASSY,SPEED | SENSOR ASSY,SPEED |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 14 | 03541-05203-000 | Screw | Screw |
| 14 | 03541-0520A-000 | SCREW | SCREW |
| 10 | 09471-12055-000 | BULB(14V1.4W,T5) | BULB(14V1.4W,T5) |
| 1 | 34100-80F23-000 | Speedometer assy,comb | Speedometer assy,comb |
| 5 | 34112-80F20-000 | GLASS,METER WINDOW | GLASS,METER WINDOW |
| 2 | 34120-80F21-000 | BODY ASSY,SPEEDOMETER | BODY ASSY,SPEEDOMETER |
| 6 | 34145-60B00-000 | GROMMET | GROMMET |
| 7 | 34152-80F20-000 | Plate,printed | Plate,printed |
| 13 | 34155-50E10-000 | CIRCUIT,ABS WARNING | CIRCUIT,ABS WARNING |
| 8 | 34171-50E10-000 | BULB,12V 3.4W | BULB,12V 3.4W |
| 12 | 34171-68F70-000 | BULB,12V 1.12W | BULB,12V 1.12W |
| 9 | 34172-50E10-000 | SOCKET | SOCKET |
| 11 | 34175-78900-000 | SOCKET | SOCKET |
| 3 | 34220-80F20-000 | BODY ASSY,TACHOMETER | BODY ASSY,TACHOMETER |
| 15 | 34910-80F00-000 | SENSOR ASSY,SPEED | SENSOR ASSY,SPEED |
