Search › Compare › EA11R × EA21R
EA11R
Suzuki CAPPUCCINO — 15 of 2,380 shared
EA21R
Suzuki CAPPUCCINO — 15 of 2,428 shared

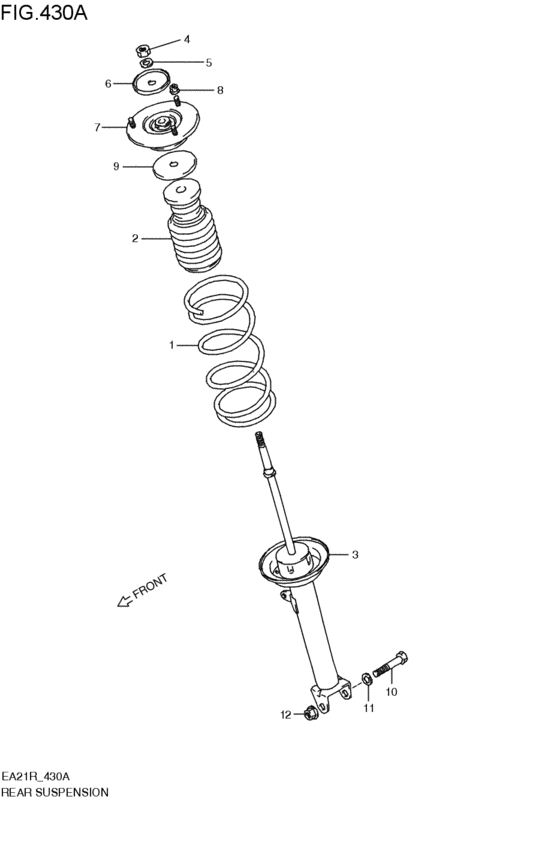

rear suspension (1991-10-01~1995-05-01) 15 / 16
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 1 | 41311-80F01-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 2 | 42251-80F02-000 | STOPPER,RR BUMP | STOPPER,RR BUMP |
| 3 | 41801-80F00-000 | ABSORBER,RR SHOCK | ABSORBER,RR SHOCK |
| 4 | 08310-00123-000 | Nut | Nut |
| 4 | 08310-0012A-000 | NUT | NUT |
| 5 | 08321-01123-000 | Washer - Lock washer | Washer - Lock washer |
| 5 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 6 | 41921-60B00-000 | SEAT,REAR STRUT LOWER | SEAT,REAR STRUT LOWER |
| 7 | 41910-80F00-000 | SUPPORT,RR SHOCK ABSORBER | SUPPORT,RR SHOCK ABSORBER |
| 8 | 08316-10083-000 | Nut | Nut |
| 8 | 08316-1008B-000 | NUT | NUT |
| 9 | 41731-60B00-000 | SEAT,FRONT STRUT BEARING | SEAT,FRONT STRUT BEARING |
| 10 | 45453-80F00-000 | BOLT,RR TRLG ROD,REAR | BOLT,RR TRLG ROD,REAR |
| 12 | 08316-10123-000 | Nut | Nut |
| 12 | 08316-1012A-000 | NUT | NUT |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 5 | 08310-00123-000 | Nut | Nut |
| 5 | 08310-0012A-000 | NUT | NUT |
| 33 | 08316-10083-000 | Nut | Nut |
| 33 | 08316-1008B-000 | NUT | NUT |
| 8 | 08316-10123-000 | Nut | Nut |
| 8 | 08316-1012A-000 | NUT | NUT |
| 6 | 08321-01123-000 | Washer - Lock washer | Washer - Lock washer |
| 6 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 1 | 41311-80F01-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 10 | 41731-60B00-000 | SEAT,FRONT STRUT BEARING | SEAT,FRONT STRUT BEARING |
| 3 | 41801-80F00-000 | ABSORBER,RR SHOCK | ABSORBER,RR SHOCK |
| 7 | 41910-80F00-000 | SUPPORT,RR SHOCK ABSORBER | SUPPORT,RR SHOCK ABSORBER |
| 6 | 41921-60B00-000 | SEAT,REAR STRUT LOWER | SEAT,REAR STRUT LOWER |
| 2 | 42251-80F02-000 | STOPPER,RR BUMP | STOPPER,RR BUMP |
| 14 | 45453-80F00-000 | BOLT,RR TRLG ROD,REAR | BOLT,RR TRLG ROD,REAR |
