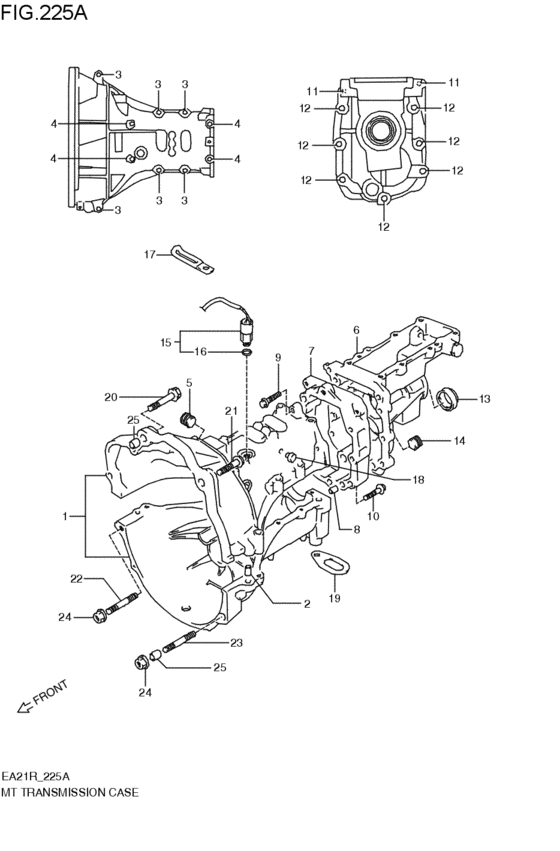

mt - transmission case (ボルト(ボルト オ-ダ- チャ-ト) / トランスミッション ケ-ス; 1991-10-01~1995-05-01) 38 / 40
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 1 | 24700-82C01-000 | Case assy,transmission | Case assy,transmission |
| 2 | 04211-09169-000 | PIN | PIN |
| 3 | 01550-08403-000 | Bolt | Bolt |
| 3 | 01550-0840B-000 | Bolt | Bolt |
| 3 | 01550-0840A-000 | Bolt | Bolt |
| 4 | 01550-08953-000 | Bolt - Bolt, crankcase (8x95) | Bolt - Bolt, crankcase (8x95) |
| 4 | 01550-0895B-000 | Bolt - Bolt, crankcase (8x95) | Bolt - Bolt, crankcase (8x95) |
| 4 | 01550-0895A-000 | Bolt | Bolt |
| 5 | 09246-16010-000 | PLUG | PLUG |
| 5 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 6 | 24770-80704-000 | CASE,EXTENSION NO.1 | CASE,EXTENSION NO.1 |
| 7 | 24781-85050-000 | Case,extension,no.2 | Case,extension,no.2 |
| 9 | 01550-08303-000 | Bolt | Bolt |
| 9 | 01550-0830B-000 | Bolt | Bolt |
| 9 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 10 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 10 | 01550-0835B-000 | Bolt | Bolt |
| 10 | 01550-0835A-000 | Bolt | Bolt |
| 13 | 01550-08703-000 | Bolt | Bolt |
| 13 | 01550-0870B-000 | Bolt - Bolt, sec case | Bolt - Bolt, sec case |
| 14 | 24780-79001-000 | OIL SEAL | OIL SEAL |
| 16 | 37610-83001-000 | SWITCH ASSY,BACK UP LAMP | SWITCH ASSY,BACK UP LAMP |
| 17 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| 18 | 09404-08420-000 | CLAMP(L:120 T:1.0) | CLAMP(L:120 T:1.0) |
| 19 | 09250-08001-000 | PLUG(OD:14) - Cap, remote control shaft | PLUG(OD:14) - Cap, remote control shaft |
| 20 | 11851-62B00-000 | HOOK | HOOK |
| 21 | 01550-10453-000 | Bolt | Bolt |
| 21 | 01550-1045B-000 | Bolt | Bolt |
| 22 | 01550-10403-000 | Bolt - Bolt, rear lh (10x40) | Bolt - Bolt, rear lh (10x40) |
| 22 | 01550-1040B-000 | Bolt | Bolt |
| 22 | 01550-1040A-000 | Bolt | Bolt |
| 23 | 01421-10403-000 | New Genuine Part | New Genuine Part |
| 23 | 01421-1040A-000 | BOLT,STUD | BOLT,STUD |
| 24 | 01421-10503-000 | Stud bolt (l:50) | Stud bolt (l:50) |
| 24 | 01421-1050A-000 | BOLT,STUD | BOLT,STUD |
| 25 | 08316-10103-000 | Nut | Nut |
| 25 | 08316-1010B-000 | NUT | NUT |
| 26 | 04211-13149-000 | PIN | PIN |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 23 | 01421-10403-000 | New Genuine Part | New Genuine Part |
| 23 | 01421-1040A-000 | BOLT,STUD | BOLT,STUD |
| 24 | 01421-10503-000 | Stud bolt (l:50) | Stud bolt (l:50) |
| 24 | 01421-1050A-000 | BOLT,STUD | BOLT,STUD |
| 4 | 01550-08303-000 | Bolt | Bolt |
| 4 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 4 | 01550-0830B-000 | Bolt | Bolt |
| 10 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 10 | 01550-0835A-000 | Bolt | Bolt |
| 10 | 01550-0835B-000 | Bolt | Bolt |
| 30 | 01550-08403-000 | Bolt | Bolt |
| 30 | 01550-0840A-000 | Bolt | Bolt |
| 30 | 01550-0840B-000 | Bolt | Bolt |
| 13 | 01550-08703-000 | Bolt | Bolt |
| 13 | 01550-0870B-000 | Bolt - Bolt, sec case | Bolt - Bolt, sec case |
| 4 | 01550-08953-000 | Bolt - Bolt, crankcase (8x95) | Bolt - Bolt, crankcase (8x95) |
| 4 | 01550-0895A-000 | Bolt | Bolt |
| 4 | 01550-0895B-000 | Bolt - Bolt, crankcase (8x95) | Bolt - Bolt, crankcase (8x95) |
| 22 | 01550-10403-000 | Bolt - Bolt, rear lh (10x40) | Bolt - Bolt, rear lh (10x40) |
| 22 | 01550-1040A-000 | Bolt | Bolt |
| 22 | 01550-1040B-000 | Bolt | Bolt |
| 21 | 01550-10453-000 | Bolt | Bolt |
| 21 | 01550-1045B-000 | Bolt | Bolt |
| 2 | 04211-09169-000 | PIN | PIN |
| 26 | 04211-13149-000 | PIN | PIN |
| 11 | 08316-10103-000 | Nut | Nut |
| 11 | 08316-1010B-000 | NUT | NUT |
| 5 | 09246-16010-000 | PLUG | PLUG |
| 5 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 19 | 09250-08001-000 | PLUG(OD:14) - Cap, remote control shaft | PLUG(OD:14) - Cap, remote control shaft |
| 17 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| 28 | 09404-08420-000 | CLAMP(L:120 T:1.0) | CLAMP(L:120 T:1.0) |
| 20 | 11851-62B00-000 | HOOK | HOOK |
| 1 | 24700-82C01-000 | Case assy,transmission | Case assy,transmission |
| 6 | 24770-80704-000 | CASE,EXTENSION NO.1 | CASE,EXTENSION NO.1 |
| 14 | 24780-79001-000 | OIL SEAL | OIL SEAL |
| 7 | 24781-85050-000 | Case,extension,no.2 | Case,extension,no.2 |
| 16 | 37610-83001-000 | SWITCH ASSY,BACK UP LAMP | SWITCH ASSY,BACK UP LAMP |
