Search › Compare › EA11R × EA21R
EA11R
Suzuki CAPPUCCINO — 42 of 2,380 shared
EA21R
Suzuki CAPPUCCINO — 42 of 2,428 shared

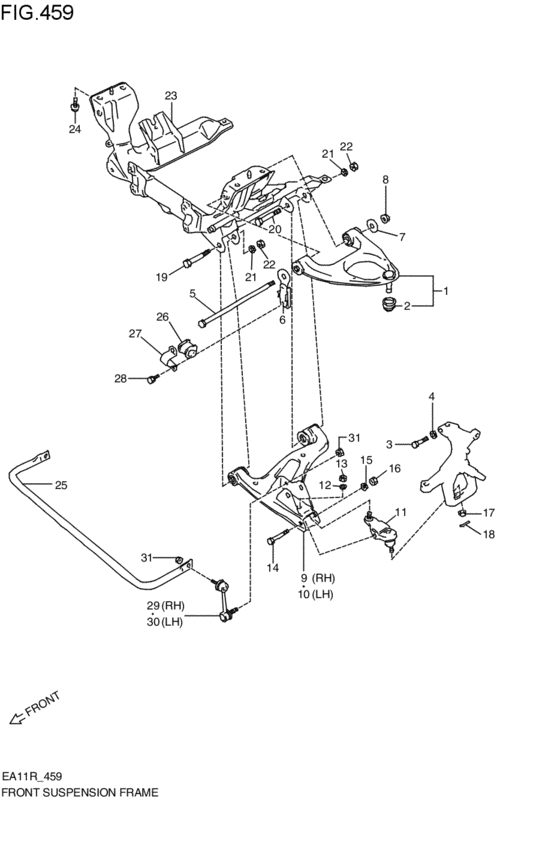

front suspension frame (1991-10-01~1995-05-01) 42 / 44
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 1 | 45200-80F01-000 | ARM ASSY,FR SPNSN | ARM ASSY,FR SPNSN |
| 2 | 45723-60B00-000 | SEAL SET,BALL JOINT | SEAL SET,BALL JOINT |
| 2 | 45723-60B01-000 | Seal Set,ball Joint | Seal Set,ball Joint |
| 2 | 45700-60820-000 | Seal Set,ball Joint | Seal Set,ball Joint |
| 3 | 09100-10184-000 | BOLT(10X40) | BOLT(10X40) |
| 4 | 08321-01103-000 | Washer - Lock washer | Washer - Lock washer |
| 4 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 4 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 5 | 46241-80F01-000 | ボルト,サスペンションアッパアーム | ボルト,サスペンションアッパアーム |
| 5 | 46241-80F0V-000 | BOLT,RR SPNSN UPPER ARM | BOLT,RR SPNSN UPPER ARM |
| 6 | 45240-80F00-000 | PLATE,FR UPPER ARM | PLATE,FR UPPER ARM |
| 7 | 46242-80F00-000 | WASHER,SPNSN UPR | WASHER,SPNSN UPR |
| 8 | 08316-10123-000 | Nut | Nut |
| 8 | 08316-1012A-000 | NUT | NUT |
| 9 | 45205-80F00-000 | ARM ASSY,FR SPNSN LWR,R | ARM ASSY,FR SPNSN LWR,R |
| 10 | 45206-80F00-000 | ARM ASSY,FR SPNSN LWR,L | ARM ASSY,FR SPNSN LWR,L |
| 11 | 45270-80F00-000 | JOINT,FR SPNSN LWR | JOINT,FR SPNSN LWR |
| 13 | 08310-00103-000 | Nut | Nut |
| 13 | 08310-0010B-000 | NUT | NUT |
| 13 | 08310-0010A-000 | NUT | NUT |
| 14 | 45453-80F00-000 | BOLT,RR TRLG ROD,REAR | BOLT,RR TRLG ROD,REAR |
| 15 | 08321-01123-000 | Washer - Lock washer | Washer - Lock washer |
| 15 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 16 | 08310-00123-000 | Nut | Nut |
| 16 | 08310-0012A-000 | NUT | NUT |
| 17 | 08314-40123-000 | Nut - Nut, knuckle end | Nut - Nut, knuckle end |
| 17 | 08314-4012A-000 | NUT | NUT |
| 18 | 04111-30208-000 | Cotter pin - Cotter pin, knuckle end | Cotter pin - Cotter pin, knuckle end |
| 18 | 04111-3020A-000 | PIN | PIN |
| 19 | 45331-80F00-000 | BOLT,FR LWR ARM BUSH FR | BOLT,FR LWR ARM BUSH FR |
| 20 | 09103-12048-000 | BOLT(12X90) | BOLT(12X90) |
| 24 | 01550-12303-000 | ボルト | ボルト |
| 24 | 01550-1230B-000 | Bolt | Bolt |
| 26 | 42431-80F00-000 | MOUNT,FR STAB | MOUNT,FR STAB |
| 27 | 42441-80F00-000 | Bracket,fr stab bar mount | Bracket,fr stab bar mount |
| 27 | 42441-80F0V-000 | BRACKET,FR STAB BAR BOUNT | BRACKET,FR STAB BAR BOUNT |
| 28 | 01570-08203-000 | Bolt | Bolt |
| 28 | 01570-0820B-000 | Bolt | Bolt |
| 28 | 01570-0820A-000 | Bolt | Bolt |
| 29 | 45630-80F00-000 | JOINT,FR STAB BAR LINK,R | JOINT,FR STAB BAR LINK,R |
| 30 | 45640-80F00-000 | JOINT,FR STAB BAR LINK,L | JOINT,FR STAB BAR LINK,L |
| 31 | 09159-10056-000 | NUT | NUT |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 24 | 01550-12303-000 | ボルト | ボルト |
| 24 | 01550-1230B-000 | Bolt | Bolt |
| 8 | 01570-08203-000 | Bolt | Bolt |
| 8 | 01570-0820A-000 | Bolt | Bolt |
| 8 | 01570-0820B-000 | Bolt | Bolt |
| 18 | 04111-30208-000 | Cotter pin - Cotter pin, knuckle end | Cotter pin - Cotter pin, knuckle end |
| 18 | 04111-3020A-000 | PIN | PIN |
| 4 | 08310-00103-000 | Nut | Nut |
| 4 | 08310-0010A-000 | NUT | NUT |
| 4 | 08310-0010B-000 | NUT | NUT |
| 5 | 08310-00123-000 | Nut | Nut |
| 5 | 08310-0012A-000 | NUT | NUT |
| 17 | 08314-40123-000 | Nut - Nut, knuckle end | Nut - Nut, knuckle end |
| 17 | 08314-4012A-000 | NUT | NUT |
| 8 | 08316-10123-000 | Nut | Nut |
| 8 | 08316-1012A-000 | NUT | NUT |
| 4 | 08321-01103-000 | Washer - Lock washer | Washer - Lock washer |
| 4 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 4 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 6 | 08321-01123-000 | Washer - Lock washer | Washer - Lock washer |
| 6 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 3 | 09100-10184-000 | BOLT(10X40) | BOLT(10X40) |
| 20 | 09103-12048-000 | BOLT(12X90) | BOLT(12X90) |
| 31 | 09159-10056-000 | NUT | NUT |
| 26 | 42431-80F00-000 | MOUNT,FR STAB | MOUNT,FR STAB |
| 27 | 42441-80F00-000 | Bracket,fr stab bar mount | Bracket,fr stab bar mount |
| 27 | 42441-80F0V-000 | BRACKET,FR STAB BAR BOUNT | BRACKET,FR STAB BAR BOUNT |
| 1 | 45200-80F01-000 | ARM ASSY,FR SPNSN | ARM ASSY,FR SPNSN |
| 9 | 45205-80F00-000 | ARM ASSY,FR SPNSN LWR,R | ARM ASSY,FR SPNSN LWR,R |
| 10 | 45206-80F00-000 | ARM ASSY,FR SPNSN LWR,L | ARM ASSY,FR SPNSN LWR,L |
| 6 | 45240-80F00-000 | PLATE,FR UPPER ARM | PLATE,FR UPPER ARM |
| 11 | 45270-80F00-000 | JOINT,FR SPNSN LWR | JOINT,FR SPNSN LWR |
| 19 | 45331-80F00-000 | BOLT,FR LWR ARM BUSH FR | BOLT,FR LWR ARM BUSH FR |
| 14 | 45453-80F00-000 | BOLT,RR TRLG ROD,REAR | BOLT,RR TRLG ROD,REAR |
| 29 | 45630-80F00-000 | JOINT,FR STAB BAR LINK,R | JOINT,FR STAB BAR LINK,R |
| 30 | 45640-80F00-000 | JOINT,FR STAB BAR LINK,L | JOINT,FR STAB BAR LINK,L |
| 2 | 45700-60820-000 | Seal Set,ball Joint | Seal Set,ball Joint |
| 2 | 45723-60B00-000 | SEAL SET,BALL JOINT | SEAL SET,BALL JOINT |
| 2 | 45723-60B01-000 | Seal Set,ball Joint | Seal Set,ball Joint |
| 5 | 46241-80F01-000 | ボルト,サスペンションアッパアーム | ボルト,サスペンションアッパアーム |
| 5 | 46241-80F0V-000 | BOLT,RR SPNSN UPPER ARM | BOLT,RR SPNSN UPPER ARM |
| 7 | 46242-80F00-000 | WASHER,SPNSN UPR | WASHER,SPNSN UPR |
