Search › Compare › EA11R × EA21R
EA11R
Suzuki CAPPUCCINO — 25 of 2,380 shared
EA21R
Suzuki CAPPUCCINO — 25 of 2,428 shared

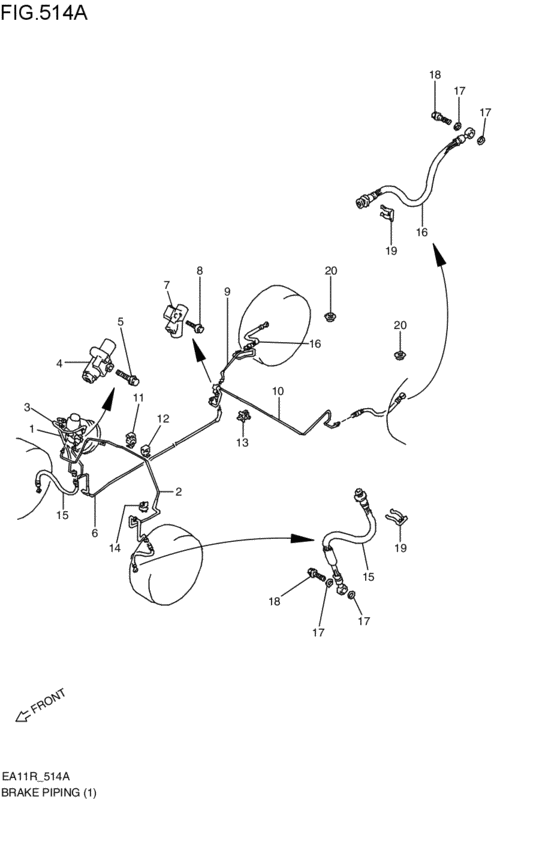

brakes piping (ABSイガイ; STD,SA,SB,SC; 1991-10-01~1995-05-01) 25 / 25
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 1 | 51420-80F00-000 | PIPE,MA PRI TO BK HOSE R | PIPE,MA PRI TO BK HOSE R |
| 2 | 51430-80F00-000 | PIPE,MA PRI TO BK HOSE L | PIPE,MA PRI TO BK HOSE L |
| 3 | 51440-80F00-000 | PIPE,MA SEC TO VALVE | PIPE,MA SEC TO VALVE |
| 4 | 51910-80F00-000 | VALVE ASSY,PROPORTIONING | VALVE ASSY,PROPORTIONING |
| 5 | 01550-06353-000 | Bolt | Bolt |
| 5 | 01550-0635B-000 | Bolt | Bolt |
| 5 | 01550-0635A-000 | Bolt | Bolt |
| 6 | 51450-80F00-000 | PIPE,VALVE TO JOINT | PIPE,VALVE TO JOINT |
| 7 | 51620-60B00-000 | JOINT,3WAY BRAKE | JOINT,3WAY BRAKE |
| 8 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 8 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 8 | 01550-0625A-000 | Bolt | Bolt |
| 9 | 51460-80F00-000 | PIPE,JOINT TO RR BK HOSE R | PIPE,JOINT TO RR BK HOSE R |
| 10 | 51470-80F00-000 | PIPE,JOINT TO RR BK HOSE L | PIPE,JOINT TO RR BK HOSE L |
| 11 | 51751-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 12 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
| 13 | 51771-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 14 | 51781-60B00-000 | CLAMP,BRAKE PIPE COVER | CLAMP,BRAKE PIPE COVER |
| 15 | 51560-80F00-000 | HOSE,FR DISK FLEXIBLE | HOSE,FR DISK FLEXIBLE |
| 16 | 51570-80F00-000 | HOSE,RR DISC FLEXIBLE | HOSE,RR DISC FLEXIBLE |
| 17 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 18 | 09360-10026-000 | Union bolt | Union bolt |
| 19 | 09383-13001-000 | E RING | E RING |
| 19 | 09383-13003-000 | E-RING | E-RING |
| 20 | 09250-16015-000 | PLUG(OD:24.5) - Cap, fr wheel house | PLUG(OD:24.5) - Cap, fr wheel house |
| # | OEM | EA11R | EA21R |
|---|---|---|---|
| 16 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 16 | 01550-0625A-000 | Bolt | Bolt |
| 16 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 12 | 01550-06353-000 | Bolt | Bolt |
| 1 | 01550-0635A-000 | Bolt | Bolt |
| 12 | 01550-0635B-000 | Bolt | Bolt |
| 17 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 20 | 09250-16015-000 | PLUG(OD:24.5) - Cap, fr wheel house | PLUG(OD:24.5) - Cap, fr wheel house |
| 18 | 09360-10026-000 | Union bolt | Union bolt |
| 19 | 09383-13001-000 | E RING | E RING |
| 19 | 09383-13003-000 | E-RING | E-RING |
| 1 | 51420-80F00-000 | PIPE,MA PRI TO BK HOSE R | PIPE,MA PRI TO BK HOSE R |
| 2 | 51430-80F00-000 | PIPE,MA PRI TO BK HOSE L | PIPE,MA PRI TO BK HOSE L |
| 3 | 51440-80F00-000 | PIPE,MA SEC TO VALVE | PIPE,MA SEC TO VALVE |
| 6 | 51450-80F00-000 | PIPE,VALVE TO JOINT | PIPE,VALVE TO JOINT |
| 9 | 51460-80F00-000 | PIPE,JOINT TO RR BK HOSE R | PIPE,JOINT TO RR BK HOSE R |
| 10 | 51470-80F00-000 | PIPE,JOINT TO RR BK HOSE L | PIPE,JOINT TO RR BK HOSE L |
| 15 | 51560-80F00-000 | HOSE,FR DISK FLEXIBLE | HOSE,FR DISK FLEXIBLE |
| 16 | 51570-80F00-000 | HOSE,RR DISC FLEXIBLE | HOSE,RR DISC FLEXIBLE |
| 7 | 51620-60B00-000 | JOINT,3WAY BRAKE | JOINT,3WAY BRAKE |
| 11 | 51751-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 12 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
| 13 | 51771-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 14 | 51781-60B00-000 | CLAMP,BRAKE PIPE COVER | CLAMP,BRAKE PIPE COVER |
| 4 | 51910-80F00-000 | VALVE ASSY,PROPORTIONING | VALVE ASSY,PROPORTIONING |
