Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 53 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 53 of 3,317 shared

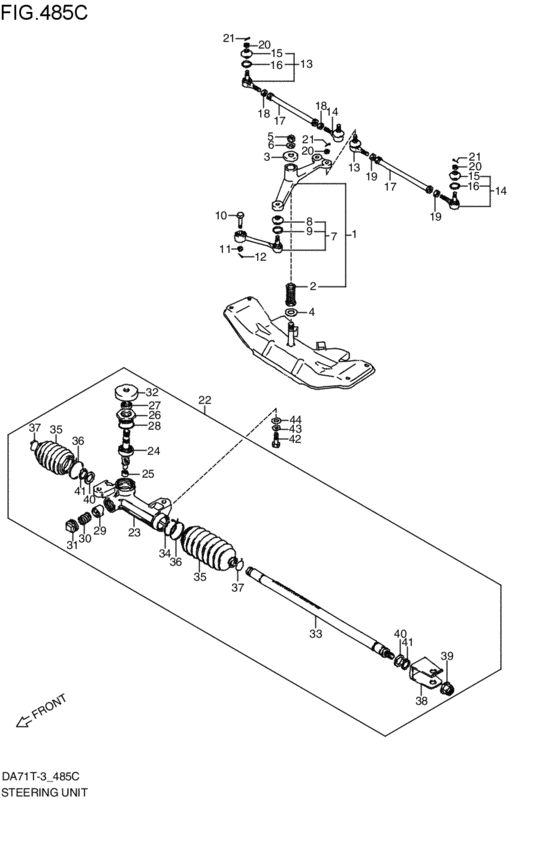

steering unit (1987-08-01~1989-04-01) 53 / 61
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 2 | 48750-85001-000 | BUSHING,INTERMEDIATE | BUSHING,INTERMEDIATE |
| 4 | 09160-20057-000 | WASHER(20.2X42X2.3) | WASHER(20.2X42X2.3) |
| 5 | 08310-0018A-000 | NUT | NUT |
| 7 | 48900-85000-000 | ROD STRG | ROD STRG |
| 7 | 48900-50F01-000 | ROD ASSY,STRG DRAG | ROD ASSY,STRG DRAG |
| 8 | 48819-82000-000 | BOOT SET,TIE ROD END | BOOT SET,TIE ROD END |
| 8 | 48819-82001-000 | Boot Set,tie Rod End | Boot Set,tie Rod End |
| 8 | 48800-82810-000 | Boot Set,tie Rod End | Boot Set,tie Rod End |
| 9 | 09401-23401-000 | Clip | Clip |
| 9 | 09401-23402-000 | CLIP | CLIP |
| 10 | 09101-12009-000 | BOLT(12X49) | BOLT(12X49) |
| 11 | 08314-41123-000 | Nut | Nut |
| 11 | 08314-4012A-000 | NUT | NUT |
| 12 | 04111-30206-000 | コッタピン | コッタピン |
| 12 | 04111-3020A-000 | PIN | PIN |
| 13 | 48810-79000-000 | END,TIE-ROD,R | END,TIE-ROD,R |
| 14 | 48820-79000-000 | END,TIE-ROD,L | END,TIE-ROD,L |
| 18 | 09140-14026-000 | ナット | ナット |
| 18 | 08310-0014A-000 | NUT | NUT |
| 19 | 09140-14027-000 | NUT | NUT |
| 22 | 48500-85003-000 | ボックスアッシ,ステアリングギヤ | ボックスアッシ,ステアリングギヤ |
| 22 | 48500-70D00-000 | BOX ASSY,STRG GEAR | BOX ASSY,STRG GEAR |
| 23 | 48510-85001-000 | CASE,STRG GEAR | CASE,STRG GEAR |
| 24 | 48550-85000-000 | PINION,STEERING | PINION,STEERING |
| 25 | 09263-10014-000 | BEARING(10X14X10) - Bearing, cl rlse low | BEARING(10X14X10) - Bearing, cl rlse low |
| 26 | 48562-82000-000 | Plug, pinion bearing | Plug, pinion bearing |
| 26 | 48562-82K00-000 | PLUG,PINION BEARING | PLUG,PINION BEARING |
| 27 | 09283-15002-000 | SEAL,OIL(15X25X5) | SEAL,OIL(15X25X5) |
| 28 | 09280-34003-000 | O RING(D:2,ID:34.1) | O RING(D:2,ID:34.1) |
| 29 | 48534-78000-000 | プランジャ,ステアリングラック | プランジャ,ステアリングラック |
| 29 | 48534-50F00-000 | PLUNGER,STEERING RACK | PLUNGER,STEERING RACK |
| 30 | 09440-19011-000 | SPRING | SPRING |
| 31 | 48535-85000-000 | SCREW,RACK DAMPER | SCREW,RACK DAMPER |
| 32 | 48581-85002-000 | CAP,STRG PINION | CAP,STRG PINION |
| 33 | 48531-85000-000 | RACK,STEERING | RACK,STEERING |
| 34 | 09381-32001-000 | CIRCLIP | CIRCLIP |
| 35 | 48571-85001-000 | BOOT,STEERING RACK | BOOT,STEERING RACK |
| 36 | 09460-01024-000 | ワイヤ | ワイヤ |
| 36 | 09460-01023-000 | WIRE | WIRE |
| 37 | 09401-20403-000 | クリップ | クリップ |
| 37 | 09401-20403-XC0 | CLIP | CLIP |
| 38 | 48591-85000-000 | YOKE,STEERING RACK | YOKE,STEERING RACK |
| 39 | 09159-12017-000 | NUT | NUT |
| 40 | 09160-20059-000 | WASHER(20X30X3.2) | WASHER(20X30X3.2) |
| 41 | 09380-20013-000 | CIRCLIP | CIRCLIP |
| 42 | 09100-10231-000 | ボルト,10X35 | ボルト,10X35 |
| 42 | 09118-10047-000 | BOLT(10X35) | BOLT(10X35) |
| 43 | 08321-31103-000 | ロックワッシャ | ロックワッシャ |
| 43 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 43 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 44 | 08322-21103-000 | WASHER 105X22X16 | WASHER 105X22X16 |
| 44 | 08322-0110A-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 44 | 08322-0110B-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 12 | 04111-30206-000 | コッタピン | コッタピン |
| 10 | 04111-3020A-000 | PIN | PIN |
| 9 | 08310-0014A-000 | NUT | NUT |
| 5 | 08310-0018A-000 | NUT | NUT |
| 9 | 08314-4012A-000 | NUT | NUT |
| 9 | 08314-41123-000 | Nut | Nut |
| 3 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 3 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 21 | 08321-31103-000 | ロックワッシャ | ロックワッシャ |
| 2 | 08322-0110A-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 2 | 08322-0110B-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 2 | 08322-21103-000 | WASHER 105X22X16 | WASHER 105X22X16 |
| 42 | 09100-10231-000 | ボルト,10X35 | ボルト,10X35 |
| 10 | 09101-12009-000 | BOLT(12X49) | BOLT(12X49) |
| 42 | 09118-10047-000 | BOLT(10X35) | BOLT(10X35) |
| 18 | 09140-14026-000 | ナット | ナット |
| 19 | 09140-14027-000 | NUT | NUT |
| 39 | 09159-12017-000 | NUT | NUT |
| 4 | 09160-20057-000 | WASHER(20.2X42X2.3) | WASHER(20.2X42X2.3) |
| 40 | 09160-20059-000 | WASHER(20X30X3.2) | WASHER(20X30X3.2) |
| 25 | 09263-10014-000 | BEARING(10X14X10) - Bearing, cl rlse low | BEARING(10X14X10) - Bearing, cl rlse low |
| 28 | 09280-34003-000 | O RING(D:2,ID:34.1) | O RING(D:2,ID:34.1) |
| 27 | 09283-15002-000 | SEAL,OIL(15X25X5) | SEAL,OIL(15X25X5) |
| 41 | 09380-20013-000 | CIRCLIP | CIRCLIP |
| 34 | 09381-32001-000 | CIRCLIP | CIRCLIP |
| 37 | 09401-20403-000 | クリップ | クリップ |
| 37 | 09401-20403-XC0 | CLIP | CLIP |
| 9 | 09401-23401-000 | Clip | Clip |
| 9 | 09401-23402-000 | CLIP | CLIP |
| 30 | 09440-19011-000 | SPRING | SPRING |
| 36 | 09460-01023-000 | WIRE | WIRE |
| 36 | 09460-01024-000 | ワイヤ | ワイヤ |
| 22 | 48500-70D00-000 | BOX ASSY,STRG GEAR | BOX ASSY,STRG GEAR |
| 22 | 48500-85003-000 | ボックスアッシ,ステアリングギヤ | ボックスアッシ,ステアリングギヤ |
| 23 | 48510-85001-000 | CASE,STRG GEAR | CASE,STRG GEAR |
| 33 | 48531-85000-000 | RACK,STEERING | RACK,STEERING |
| 29 | 48534-50F00-000 | PLUNGER,STEERING RACK | PLUNGER,STEERING RACK |
| 29 | 48534-78000-000 | プランジャ,ステアリングラック | プランジャ,ステアリングラック |
| 31 | 48535-85000-000 | SCREW,RACK DAMPER | SCREW,RACK DAMPER |
| 24 | 48550-85000-000 | PINION,STEERING | PINION,STEERING |
| 26 | 48562-82000-000 | Plug, pinion bearing | Plug, pinion bearing |
| 26 | 48562-82K00-000 | PLUG,PINION BEARING | PLUG,PINION BEARING |
| 35 | 48571-85001-000 | BOOT,STEERING RACK | BOOT,STEERING RACK |
| 32 | 48581-85002-000 | CAP,STRG PINION | CAP,STRG PINION |
| 38 | 48591-85000-000 | YOKE,STEERING RACK | YOKE,STEERING RACK |
| 2 | 48750-85001-000 | BUSHING,INTERMEDIATE | BUSHING,INTERMEDIATE |
| 8 | 48800-82810-000 | Boot Set,tie Rod End | Boot Set,tie Rod End |
| 13 | 48810-79000-000 | END,TIE-ROD,R | END,TIE-ROD,R |
| 8 | 48819-82000-000 | BOOT SET,TIE ROD END | BOOT SET,TIE ROD END |
| 8 | 48819-82001-000 | Boot Set,tie Rod End | Boot Set,tie Rod End |
| 14 | 48820-79000-000 | END,TIE-ROD,L | END,TIE-ROD,L |
| 7 | 48900-50F01-000 | ROD ASSY,STRG DRAG | ROD ASSY,STRG DRAG |
| 7 | 48900-85000-000 | ROD STRG | ROD STRG |
