Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 47 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 47 of 3,317 shared

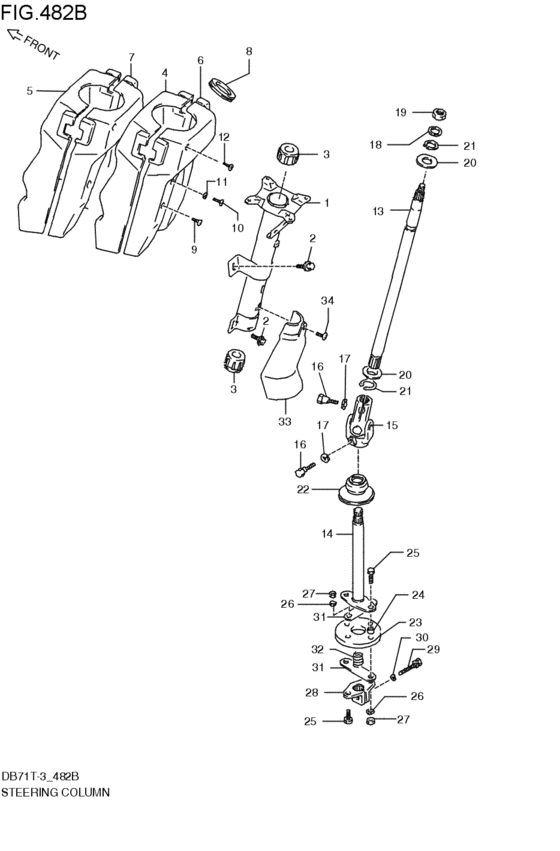

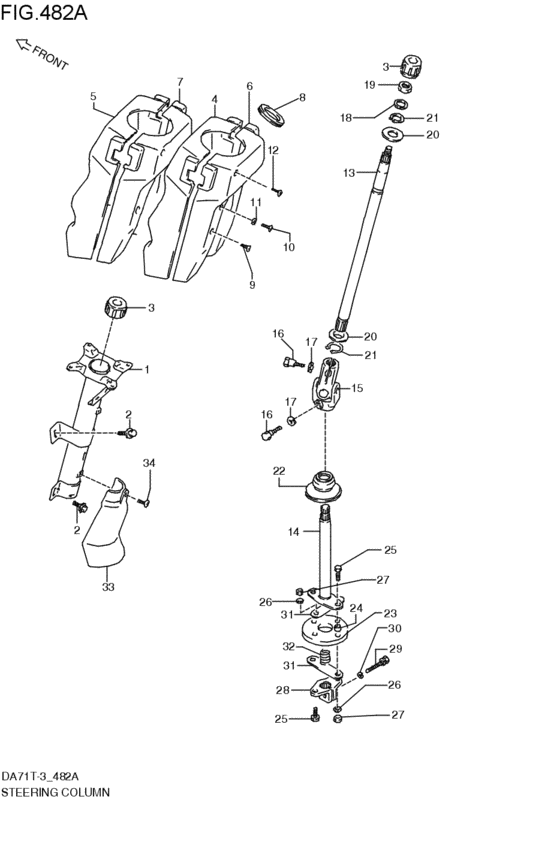

steering column (1987-08-01~1989-04-01) 47 / 47
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 48310-85011-000 | コラム,ステアリング | コラム,ステアリング |
| 2 | 01517-08166-000 | Bolt 8x16 | Bolt 8x16 |
| 2 | 01550-0816B-000 | Bolt | Bolt |
| 3 | 48381-51040-000 | BUSHING STEERING | BUSHING STEERING |
| 3 | 48381-51041-000 | BUSHING,STRG COLUMN | BUSHING,STRG COLUMN |
| 5 | 48411-85500-5ES | カバー,ステアリングコラム,アッパ(ブラック) | カバー,ステアリングコラム,アッパ(ブラック) |
| 5 | 48400-85500-5RT | COVER SET,STRG COLUMN (gray) | COVER SET,STRG COLUMN (gray) |
| 7 | 48421-85500-5ES | カバー,ステアリングコラム,ロア(ブラック) | カバー,ステアリングコラム,ロア(ブラック) |
| 8 | 48419-85000-000 | SEAL,STEERING COVER | SEAL,STEERING COVER |
| 9 | 02142-05086-000 | スクリュ | スクリュ |
| 9 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 10 | 02112-05126-000 | Screw m5x.08x12 | Screw m5x.08x12 |
| 10 | 02112-0512A-000 | SCREW | SCREW |
| 11 | 09160-05034-000 | Washer,5.3x10x1 | Washer,5.3x10x1 |
| 11 | 09160-05044-000 | WASHER(5.5X10X1) | WASHER(5.5X10X1) |
| 12 | 03211-05166-000 | Screw, l:16 - Vis | Screw, l:16 - Vis |
| 12 | 03211-0516A-000 | SCREW | SCREW |
| 13 | 48211-85000-000 | SHAFT,STEERING UPPER | SHAFT,STEERING UPPER |
| 14 | 48220-85000-000 | SHAFT,STEERING LOWER | SHAFT,STEERING LOWER |
| 15 | 48230-85000-000 | JOINT,STEERING | JOINT,STEERING |
| 16 | 09111-08052-000 | ボルト | ボルト |
| 16 | 09111-08066-000 | BOLT(8X30) | BOLT(8X30) |
| 17 | 08321-31086-000 | Lock washer | Lock washer |
| 17 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 17 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 18 | 08321-31126-000 | Washer lock | Washer lock |
| 18 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 19 | 09140-12022-000 | ナット | ナット |
| 19 | 09159-12025-000 | NUT | NUT |
| 20 | 09160-17021-000 | Washer | Washer |
| 20 | 09160-17501-XC0 | WASHER(17.5X34X2) | WASHER(17.5X34X2) |
| 21 | 08331-31176-000 | Circlip | Circlip |
| 21 | 08331-31179-000 | CIRCLIP | CIRCLIP |
| 22 | 48491-85000-000 | SEAL RUBBER,STEERING SHAFT | SEAL RUBBER,STEERING SHAFT |
| 23 | 48251-52000-000 | JOINT,RUBBER | JOINT,RUBBER |
| 24 | 09180-08007-000 | SPACER(8.1X11X9) | SPACER(8.1X11X9) |
| 25 | 01107-08256-000 | Bolt | Bolt |
| 25 | 01500-0825A-000 | Bolt | Bolt |
| 27 | 08310-12086-000 | NUT | NUT |
| 27 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 27 | 08310-0008B-000 | NUT | NUT |
| 28 | 48270-85000-000 | FLANGE,STRG RUBBER JOINT | FLANGE,STRG RUBBER JOINT |
| 30 | 08321-31083-000 | New Genuine Part | New Genuine Part |
| 31 | 48262-58001-000 | PLATE,STRG RUBBER JOINT | PLATE,STRG RUBBER JOINT |
| 32 | 48281-85000-000 | Spring | Spring |
| 32 | 09440-18002-000 | SPRING | SPRING |
| 33 | 48291-85000-000 | COVER,STRG JOINT | COVER,STRG JOINT |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 25 | 01107-08256-000 | Bolt | Bolt |
| 25 | 01500-0825A-000 | Bolt | Bolt |
| 2 | 01517-08166-000 | Bolt 8x16 | Bolt 8x16 |
| 2 | 01550-0816B-000 | Bolt | Bolt |
| 15 | 02112-05126-000 | Screw m5x.08x12 | Screw m5x.08x12 |
| 15 | 02112-0512A-000 | SCREW | SCREW |
| 25 | 02142-05086-000 | スクリュ | スクリュ |
| 25 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 12 | 03211-05166-000 | Screw, l:16 - Vis | Screw, l:16 - Vis |
| 12 | 03211-0516A-000 | SCREW | SCREW |
| 23 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 23 | 08310-0008B-000 | NUT | NUT |
| 11 | 08310-12086-000 | NUT | NUT |
| 23 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 23 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 14 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 9 | 08321-31083-000 | New Genuine Part | New Genuine Part |
| 17 | 08321-31086-000 | Lock washer | Lock washer |
| 18 | 08321-31126-000 | Washer lock | Washer lock |
| 21 | 08331-31176-000 | Circlip | Circlip |
| 21 | 08331-31179-000 | CIRCLIP | CIRCLIP |
| 16 | 09111-08052-000 | ボルト | ボルト |
| 16 | 09111-08066-000 | BOLT(8X30) | BOLT(8X30) |
| 19 | 09140-12022-000 | ナット | ナット |
| 19 | 09159-12025-000 | NUT | NUT |
| 11 | 09160-05034-000 | Washer,5.3x10x1 | Washer,5.3x10x1 |
| 11 | 09160-05044-000 | WASHER(5.5X10X1) | WASHER(5.5X10X1) |
| 20 | 09160-17021-000 | Washer | Washer |
| 20 | 09160-17501-XC0 | WASHER(17.5X34X2) | WASHER(17.5X34X2) |
| 24 | 09180-08007-000 | SPACER(8.1X11X9) | SPACER(8.1X11X9) |
| 32 | 09440-18002-000 | SPRING | SPRING |
| 13 | 48211-85000-000 | SHAFT,STEERING UPPER | SHAFT,STEERING UPPER |
| 14 | 48220-85000-000 | SHAFT,STEERING LOWER | SHAFT,STEERING LOWER |
| 15 | 48230-85000-000 | JOINT,STEERING | JOINT,STEERING |
| 23 | 48251-52000-000 | JOINT,RUBBER | JOINT,RUBBER |
| 31 | 48262-58001-000 | PLATE,STRG RUBBER JOINT | PLATE,STRG RUBBER JOINT |
| 28 | 48270-85000-000 | FLANGE,STRG RUBBER JOINT | FLANGE,STRG RUBBER JOINT |
| 32 | 48281-85000-000 | Spring | Spring |
| 33 | 48291-85000-000 | COVER,STRG JOINT | COVER,STRG JOINT |
| 1 | 48310-85011-000 | コラム,ステアリング | コラム,ステアリング |
| 3 | 48381-51040-000 | BUSHING STEERING | BUSHING STEERING |
| 3 | 48381-51041-000 | BUSHING,STRG COLUMN | BUSHING,STRG COLUMN |
| 5 | 48400-85500-5RT | COVER SET,STRG COLUMN (gray) | COVER SET,STRG COLUMN (gray) |
| 5 | 48411-85500-5ES | カバー,ステアリングコラム,アッパ(ブラック) | カバー,ステアリングコラム,アッパ(ブラック) |
| 8 | 48419-85000-000 | SEAL,STEERING COVER | SEAL,STEERING COVER |
| 7 | 48421-85500-5ES | カバー,ステアリングコラム,ロア(ブラック) | カバー,ステアリングコラム,ロア(ブラック) |
| 22 | 48491-85000-000 | SEAL RUBBER,STEERING SHAFT | SEAL RUBBER,STEERING SHAFT |
