Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 19 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 19 of 3,317 shared

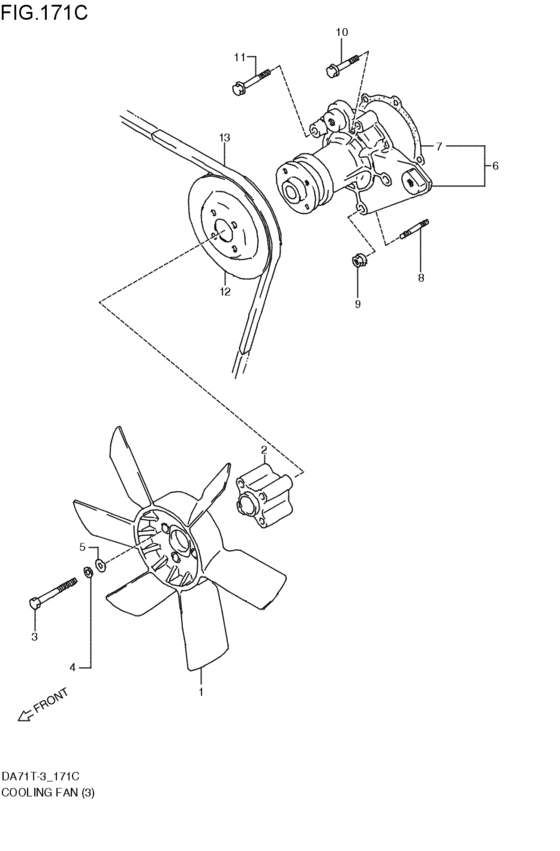

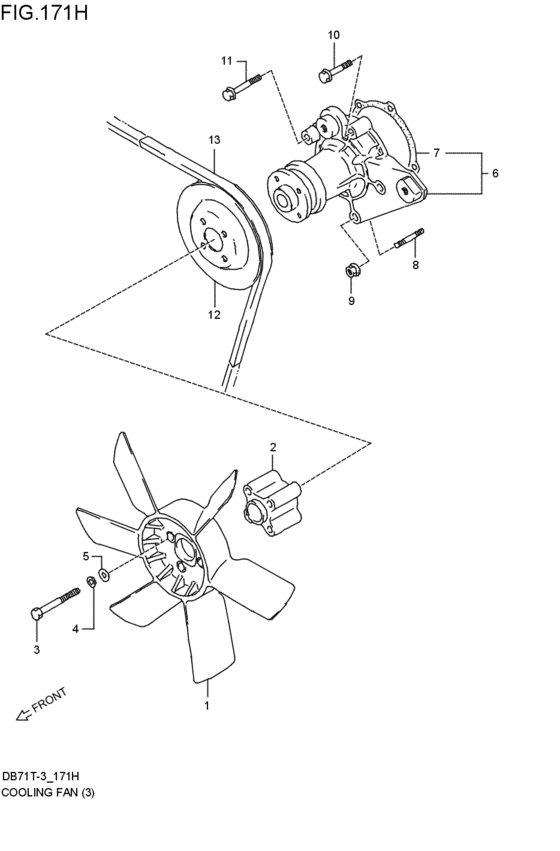

ク - ring fan (CARB:AT,TURBO; 1987-08-01~1989-04-01) 19 / 19
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 17110-77300-000 | FAN,ENG COOLING | FAN,ENG COOLING |
| 2 | 17131-80000-000 | HUB,COOLING FAN | HUB,COOLING FAN |
| 3 | 01107-06503-000 | ボルト | ボルト |
| 3 | 01500-0650A-000 | Bolt | Bolt |
| 4 | 08321-21063-000 | Lock washer | Lock washer |
| 4 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 5 | 08322-21063-000 | Washer | Washer |
| 5 | 08322-0106B-000 | WASHER | WASHER |
| 6 | 17400-78821-000 | PUMP ASSY,WATER | PUMP ASSY,WATER |
| 7 | 17431-73001-000 | GASKET,WATER PUMP | GASKET,WATER PUMP |
| 8 | 09108-06040-000 | BOLT,STUD | BOLT,STUD |
| 9 | 08316-16063-000 | Nut | Nut |
| 9 | 08316-1006B-000 | NUT | NUT |
| 10 | 01517-06303-000 | BOLT M6X1X30 | BOLT M6X1X30 |
| 10 | 01550-0630A-000 | Bolt | Bolt |
| 11 | 01517-06403-000 | ボルト | ボルト |
| 11 | 01550-0640B-000 | Bolt | Bolt |
| 12 | 17511-85550-000 | プーリ,ウォータポンプ | プーリ,ウォータポンプ |
| 13 | 17521-75100-000 | V-BELT, L:771 - FM-30.5 | V-BELT, L:771 - FM-30.5 |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 3 | 01107-06503-000 | ボルト | ボルト |
| 3 | 01500-0650A-000 | Bolt | Bolt |
| 10 | 01517-06303-000 | BOLT M6X1X30 | BOLT M6X1X30 |
| 14 | 01517-06403-000 | ボルト | ボルト |
| 10 | 01550-0630A-000 | Bolt | Bolt |
| 14 | 01550-0640B-000 | Bolt | Bolt |
| 5 | 08316-1006B-000 | NUT | NUT |
| 5 | 08316-16063-000 | Nut | Nut |
| 23 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 23 | 08321-21063-000 | Lock washer | Lock washer |
| 4 | 08322-0106B-000 | WASHER | WASHER |
| 14 | 08322-21063-000 | Washer | Washer |
| 8 | 09108-06040-000 | BOLT,STUD | BOLT,STUD |
| 1 | 17110-77300-000 | FAN,ENG COOLING | FAN,ENG COOLING |
| 2 | 17131-80000-000 | HUB,COOLING FAN | HUB,COOLING FAN |
| 6 | 17400-78821-000 | PUMP ASSY,WATER | PUMP ASSY,WATER |
| 10 | 17431-73001-000 | GASKET,WATER PUMP | GASKET,WATER PUMP |
| 12 | 17511-85550-000 | プーリ,ウォータポンプ | プーリ,ウォータポンプ |
| 13 | 17521-75100-000 | V-BELT, L:771 - FM-30.5 | V-BELT, L:771 - FM-30.5 |
