Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 33 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 33 of 3,317 shared

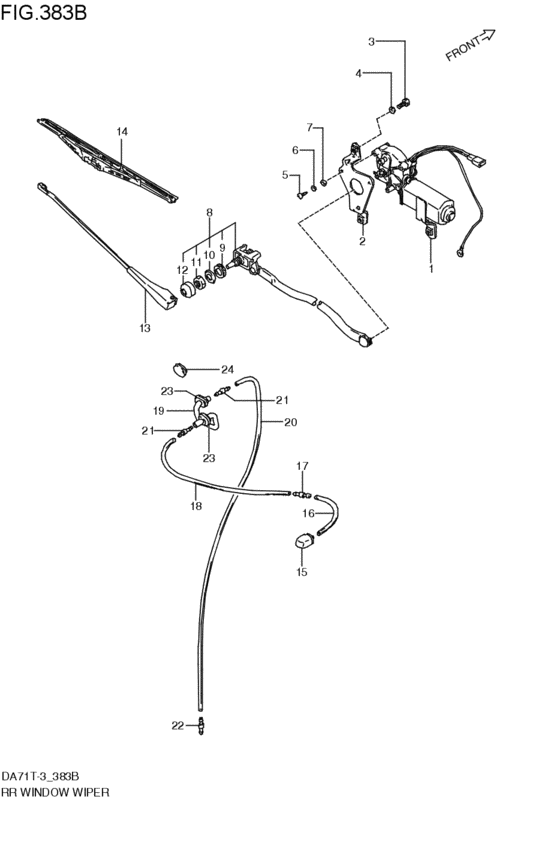

rear wind windshield wiper (V; 1987-08-01~1989-04-01) 33 / 33
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 38811-85500-000 | MOTOR ASSY,RR WIPER | MOTOR ASSY,RR WIPER |
| 2 | 38812-85500-000 | BRACKET,WIPER | BRACKET,WIPER |
| 3 | 01104-05088-000 | Bolt | Bolt |
| 3 | 01500-05087-000 | Bolt | Bolt |
| 4 | 08321-21057-000 | Washer lock - Lock washer | Washer lock - Lock washer |
| 4 | 08321-0105A-000 | WASHER,LOCK | WASHER,LOCK |
| 5 | 02112-06128-000 | Screw | Screw |
| 5 | 02112-06127-000 | SCREW | SCREW |
| 6 | 08321-21067-000 | Lock washer | Lock washer |
| 6 | 08321-01067-000 | WASHER,LOCK | WASHER,LOCK |
| 7 | 08322-21067-000 | Washer | Washer |
| 7 | 08322-01067-000 | WASHER | WASHER |
| 8 | 38813-85500-000 | Link assy,rear wiper | Link assy,rear wiper |
| 9 | 38272-71310-000 | パッキン | パッキン |
| 9 | 38272-82C00-000 | PACKING,WIPER PIVOT | PACKING,WIPER PIVOT |
| 9 | 38271-82C00-000 | WASHER,WIPER PIVOT | WASHER,WIPER PIVOT |
| 10 | 38271-71310-000 | ワッシャ | ワッシャ |
| 11 | 38278-67011-000 | NUT | NUT |
| 12 | 38274-78000-000 | CAP | CAP |
| 13 | 38821-85500-000 | Arm assy,rear wiper | Arm assy,rear wiper |
| 14 | 38340-71701-000 | BALDE WINDOW WIPER | BALDE WINDOW WIPER |
| 14 | 38340-71B00-000 | BLADE ASSY,WIPER | BLADE ASSY,WIPER |
| 15 | 38841-85500-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
| 16 | 38491-55111-000 | ホース,ウォッシャ,L:1000 | ホース,ウォッシャ,L:1000 |
| 16 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 17 | 38833-79500-000 | VALVE | VALVE |
| 17 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 18 | 38492-85500-000 | ホース | ホース |
| 19 | 38835-85500-000 | ホース | ホース |
| 21 | 38838-82000-000 | CONNECTOR | CONNECTOR |
| 22 | 38496-66010-000 | CONNECTER REAR WASHER HOSE | CONNECTER REAR WASHER HOSE |
| 22 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 23 | 38839-82000-000 | GROMMET | GROMMET |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 3 | 01104-05088-000 | Bolt | Bolt |
| 3 | 01500-05087-000 | Bolt | Bolt |
| 5 | 02112-06127-000 | SCREW | SCREW |
| 5 | 02112-06128-000 | Screw | Screw |
| 24 | 08321-0105A-000 | WASHER,LOCK | WASHER,LOCK |
| 9 | 08321-01067-000 | WASHER,LOCK | WASHER,LOCK |
| 4 | 08321-21057-000 | Washer lock - Lock washer | Washer lock - Lock washer |
| 9 | 08321-21067-000 | Lock washer | Lock washer |
| 13 | 08322-01067-000 | WASHER | WASHER |
| 13 | 08322-21067-000 | Washer | Washer |
| 6 | 38271-71310-000 | ワッシャ | ワッシャ |
| 5 | 38271-82C00-000 | WASHER,WIPER PIVOT | WASHER,WIPER PIVOT |
| 5 | 38272-71310-000 | パッキン | パッキン |
| 5 | 38272-82C00-000 | PACKING,WIPER PIVOT | PACKING,WIPER PIVOT |
| 12 | 38274-78000-000 | CAP | CAP |
| 7 | 38278-67011-000 | NUT | NUT |
| 14 | 38340-71701-000 | BALDE WINDOW WIPER | BALDE WINDOW WIPER |
| 14 | 38340-71B00-000 | BLADE ASSY,WIPER | BLADE ASSY,WIPER |
| 17 | 38491-55111-000 | ホース,ウォッシャ,L:1000 | ホース,ウォッシャ,L:1000 |
| 17 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 18 | 38492-85500-000 | ホース | ホース |
| 18 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 17 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 18 | 38496-66010-000 | CONNECTER REAR WASHER HOSE | CONNECTER REAR WASHER HOSE |
| 1 | 38811-85500-000 | MOTOR ASSY,RR WIPER | MOTOR ASSY,RR WIPER |
| 2 | 38812-85500-000 | BRACKET,WIPER | BRACKET,WIPER |
| 8 | 38813-85500-000 | Link assy,rear wiper | Link assy,rear wiper |
| 13 | 38821-85500-000 | Arm assy,rear wiper | Arm assy,rear wiper |
| 17 | 38833-79500-000 | VALVE | VALVE |
| 19 | 38835-85500-000 | ホース | ホース |
| 21 | 38838-82000-000 | CONNECTOR | CONNECTOR |
| 23 | 38839-82000-000 | GROMMET | GROMMET |
| 15 | 38841-85500-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
