Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 39 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 39 of 3,317 shared

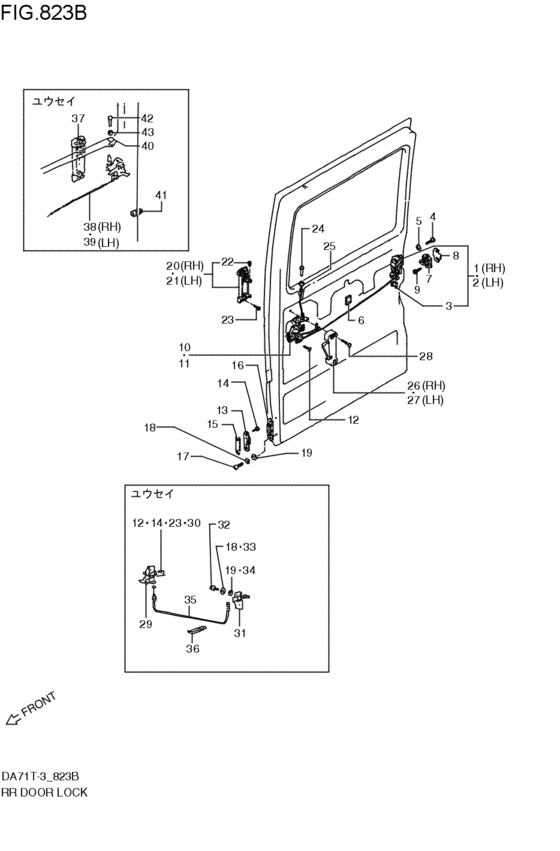

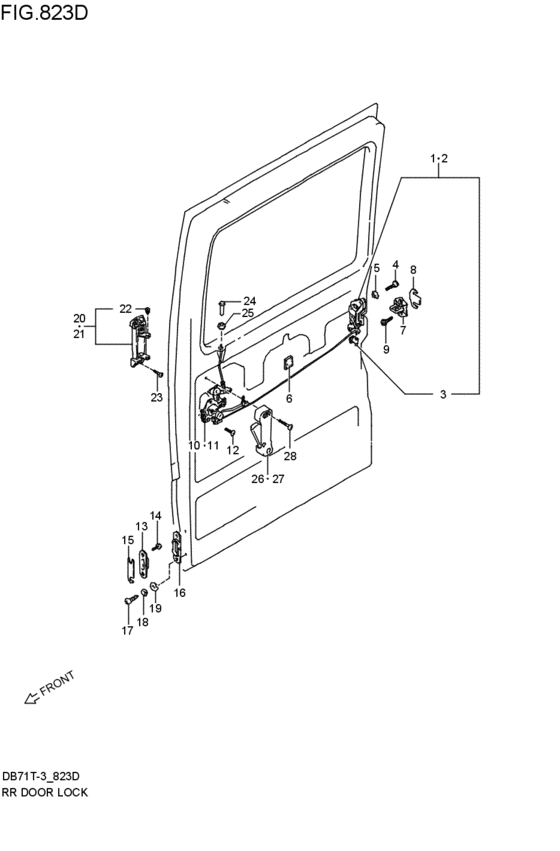

rear door lock (V; 1987-08-01~1989-04-01) 39 / 39
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 82301-85501-000 | LATCH ASSY,RR DR,R | LATCH ASSY,RR DR,R |
| 2 | 82302-85501-000 | LATCH ASSY,RR DR,L | LATCH ASSY,RR DR,L |
| 3 | 82321-85500-000 | HOLDER,ROD | HOLDER,ROD |
| 4 | 02132-06166-000 | スクリュ | スクリュ |
| 4 | 02122-0616B-000 | SCREW - Screw, intake pipe | SCREW - Screw, intake pipe |
| 5 | 08323-31066-000 | ワッシャ | ワッシャ |
| 5 | 08323-3106A-000 | WASHER,LOCK | WASHER,LOCK |
| 6 | 77591-75000-000 | PAD | PAD |
| 7 | 82630-85500-000 | STRIKER,RR DOOR LATCH | STRIKER,RR DOOR LATCH |
| 8 | 82681-80100-000 | SPACER,STRIKER | SPACER,STRIKER |
| 9 | 09137-08004-000 | SCREW(8X18) | SCREW(8X18) |
| 9 | 09137-08011-000 | SCREW(8X18) | SCREW(8X18) |
| 10 | 83140-85500-000 | リンク,リヤドアインサイド,ライト | リンク,リヤドアインサイド,ライト |
| 10 | 83140-70D00-000 | LINK,RR DR INSIDE,R | LINK,RR DR INSIDE,R |
| 11 | 83160-85500-000 | リンク,リヤドアインサイド,レフト | リンク,リヤドアインサイド,レフト |
| 11 | 83160-70D00-000 | LINK,RR DR INSIDE,L | LINK,RR DR INSIDE,L |
| 12 | 02142-06106-000 | Screw - Vis | Screw - Vis |
| 12 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | SCREW - Stopper, cl rlse cam shaft |
| 12 | 02142-0610A-000 | SCREW | SCREW |
| 13 | 78231-79500-000 | STOPPER,SIDE DR CNTNR | STOPPER,SIDE DR CNTNR |
| 15 | 78281-79500-000 | SPACER RR DOOR STOPPER | SPACER RR DOOR STOPPER |
| 15 | 82795-54F00-000 | SPACER,RR DR STPR BODY | SPACER,RR DR STPR BODY |
| 16 | 78232-79500-000 | STOPPER,SIDE DOOR | STOPPER,SIDE DOOR |
| 17 | 02112-06166-000 | Screw | Screw |
| 17 | 02112-0616B-000 | SCREW | SCREW |
| 17 | 02112-0616A-000 | SCREW | SCREW |
| 18 | 08321-21066-000 | Lock washer | Lock washer |
| 18 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 19 | 08322-21066-000 | Washer | Washer |
| 19 | 08322-0106B-000 | WASHER | WASHER |
| 20 | 82830-85500-5PK | HANDLE,REAR DOOR OUT,R | HANDLE,REAR DOOR OUT,R |
| 21 | 82840-85500-5PK | HANDLE,REAR DOOR OUT,L | HANDLE,REAR DOOR OUT,L |
| 22 | 82816-82001-000 | SNAP,ADJUSTING JOINT | SNAP,ADJUSTING JOINT |
| 24 | 78241-60002-000 | KNOB | KNOB |
| 25 | 82991-84000-000 | CAP,DR INSIDE LOCK KNOB | CAP,DR INSIDE LOCK KNOB |
| 26 | 78430-79600-281 | HANDLE,R | HANDLE,R |
| 27 | 78440-79600-281 | HANDLE,L | HANDLE,L |
| 28 | 02142-06355-000 | Screw | Screw |
| 28 | 02142-0635A-000 | SCREW | SCREW |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 3 | 02112-06166-000 | Screw | Screw |
| 3 | 02112-0616A-000 | SCREW | SCREW |
| 3 | 02112-0616B-000 | SCREW | SCREW |
| 6 | 02122-0616B-000 | SCREW - Screw, intake pipe | SCREW - Screw, intake pipe |
| 6 | 02132-06166-000 | スクリュ | スクリュ |
| 15 | 02142-06106-000 | Screw - Vis | Screw - Vis |
| 12 | 02142-0610A-000 | SCREW | SCREW |
| 12 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | SCREW - Stopper, cl rlse cam shaft |
| 28 | 02142-06355-000 | Screw | Screw |
| 28 | 02142-0635A-000 | SCREW | SCREW |
| 23 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 3 | 08321-21066-000 | Lock washer | Lock washer |
| 4 | 08322-0106B-000 | WASHER | WASHER |
| 4 | 08322-21066-000 | Washer | Washer |
| 7 | 08323-31066-000 | ワッシャ | ワッシャ |
| 7 | 08323-3106A-000 | WASHER,LOCK | WASHER,LOCK |
| 27 | 09137-08004-000 | SCREW(8X18) | SCREW(8X18) |
| 27 | 09137-08011-000 | SCREW(8X18) | SCREW(8X18) |
| 14 | 77591-75000-000 | PAD | PAD |
| 13 | 78231-79500-000 | STOPPER,SIDE DR CNTNR | STOPPER,SIDE DR CNTNR |
| 16 | 78232-79500-000 | STOPPER,SIDE DOOR | STOPPER,SIDE DOOR |
| 22 | 78241-60002-000 | KNOB | KNOB |
| 15 | 78281-79500-000 | SPACER RR DOOR STOPPER | SPACER RR DOOR STOPPER |
| 26 | 78430-79600-281 | HANDLE,R | HANDLE,R |
| 27 | 78440-79600-281 | HANDLE,L | HANDLE,L |
| 1 | 82301-85501-000 | LATCH ASSY,RR DR,R | LATCH ASSY,RR DR,R |
| 2 | 82302-85501-000 | LATCH ASSY,RR DR,L | LATCH ASSY,RR DR,L |
| 3 | 82321-85500-000 | HOLDER,ROD | HOLDER,ROD |
| 7 | 82630-85500-000 | STRIKER,RR DOOR LATCH | STRIKER,RR DOOR LATCH |
| 25 | 82681-80100-000 | SPACER,STRIKER | SPACER,STRIKER |
| 15 | 82795-54F00-000 | SPACER,RR DR STPR BODY | SPACER,RR DR STPR BODY |
| 17 | 82816-82001-000 | SNAP,ADJUSTING JOINT | SNAP,ADJUSTING JOINT |
| 20 | 82830-85500-5PK | HANDLE,REAR DOOR OUT,R | HANDLE,REAR DOOR OUT,R |
| 21 | 82840-85500-5PK | HANDLE,REAR DOOR OUT,L | HANDLE,REAR DOOR OUT,L |
| 23 | 82991-84000-000 | CAP,DR INSIDE LOCK KNOB | CAP,DR INSIDE LOCK KNOB |
| 10 | 83140-70D00-000 | LINK,RR DR INSIDE,R | LINK,RR DR INSIDE,R |
| 10 | 83140-85500-000 | リンク,リヤドアインサイド,ライト | リンク,リヤドアインサイド,ライト |
| 11 | 83160-70D00-000 | LINK,RR DR INSIDE,L | LINK,RR DR INSIDE,L |
| 11 | 83160-85500-000 | リンク,リヤドアインサイド,レフト | リンク,リヤドアインサイド,レフト |
