Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 9 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 9 of 3,317 shared

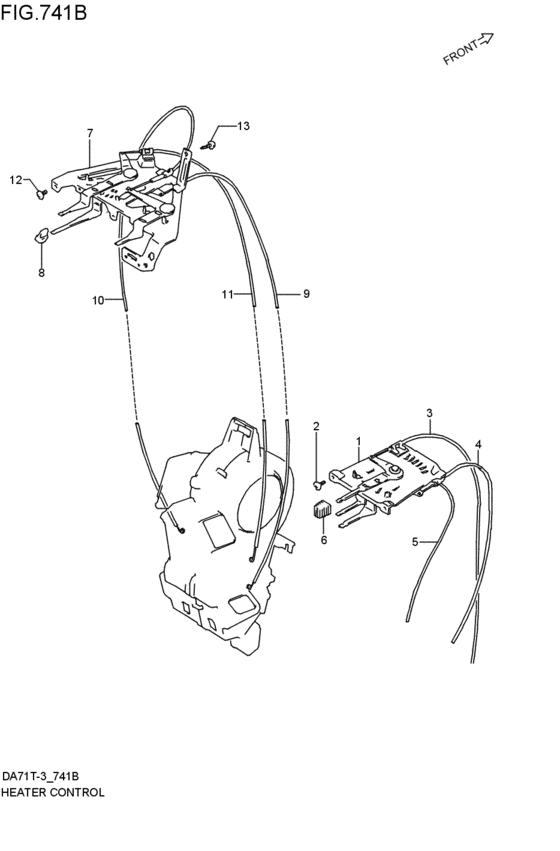

heater control (1987-08-01~1989-04-01) 9 / 9
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 7 | 74400-85501-000 | LEVER ASSY,HTR CONT | LEVER ASSY,HTR CONT |
| 8 | 74417-85500-000 | KNOB,HTR CONTROL LEVER | KNOB,HTR CONTROL LEVER |
| 9 | 74442-85000-000 | CABLE,COOL&HOT | CABLE,COOL&HOT |
| 10 | 74513-85500-000 | CABLE,CRCLT&FRESH | CABLE,CRCLT&FRESH |
| 11 | 74514-85500-000 | CABLE,MODE CONTROL | CABLE,MODE CONTROL |
| 12 | 03242-05129-000 | Screw | Screw |
| 12 | 03241-0512A-000 | SCREW | SCREW |
| 13 | 03541-05166-000 | スクリュ | スクリュ |
| 13 | 03541-0516A-000 | SCREW | SCREW |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 17 | 03241-0512A-000 | SCREW | SCREW |
| 37 | 03242-05129-000 | Screw | Screw |
| 13 | 03541-05166-000 | スクリュ | スクリュ |
| 13 | 03541-0516A-000 | SCREW | SCREW |
| 7 | 74400-85501-000 | LEVER ASSY,HTR CONT | LEVER ASSY,HTR CONT |
| 8 | 74417-85500-000 | KNOB,HTR CONTROL LEVER | KNOB,HTR CONTROL LEVER |
| 9 | 74442-85000-000 | CABLE,COOL&HOT | CABLE,COOL&HOT |
| 10 | 74513-85500-000 | CABLE,CRCLT&FRESH | CABLE,CRCLT&FRESH |
| 11 | 74514-85500-000 | CABLE,MODE CONTROL | CABLE,MODE CONTROL |
