Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 29 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 29 of 3,317 shared

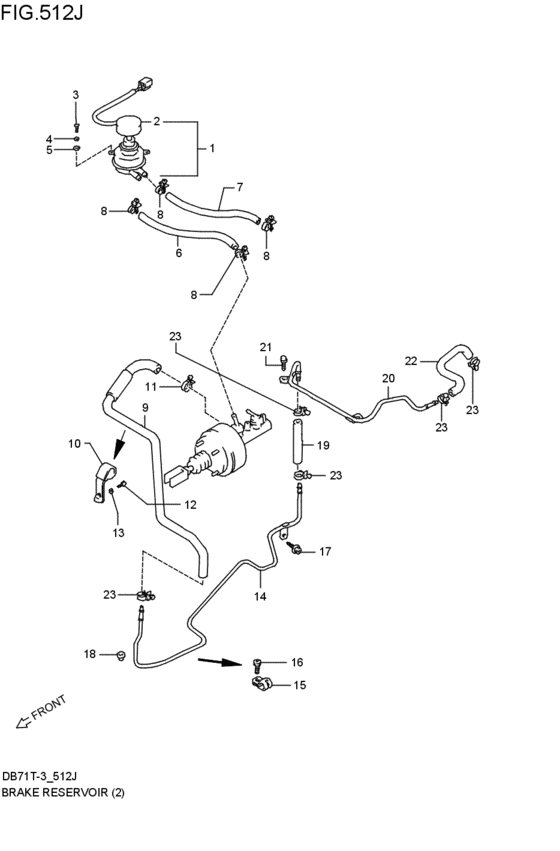

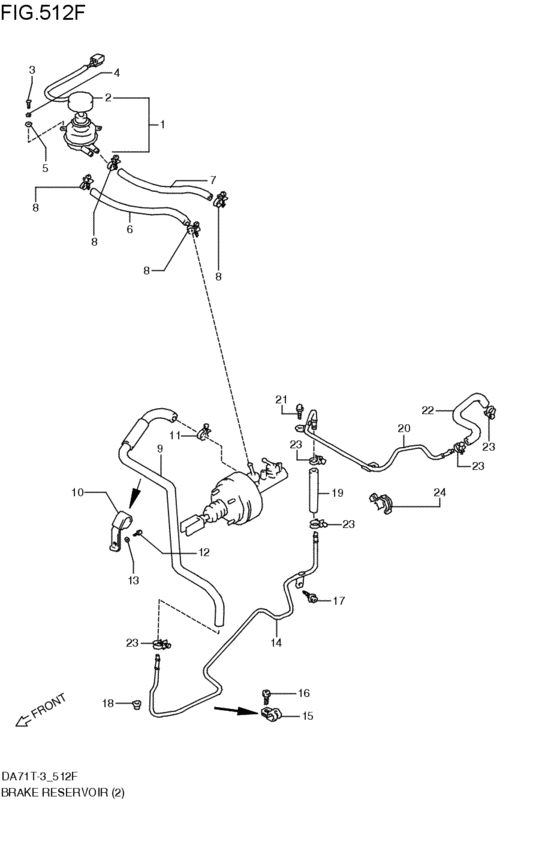

brakes reservoir (V; 1987-08-01~1989-04-01) 29 / 36
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 51200-85110-000 | RESERVOIR ASSY,BRAKE MASTER | RESERVOIR ASSY,BRAKE MASTER |
| 2 | 51220-82010-000 | CAP,RESERVOIR | CAP,RESERVOIR |
| 3 | 02112-06166-000 | Screw | Screw |
| 3 | 02112-0616B-000 | SCREW | SCREW |
| 3 | 02112-0616A-000 | SCREW | SCREW |
| 4 | 08321-21066-000 | Lock washer | Lock washer |
| 4 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 5 | 08322-21066-000 | Washer | Washer |
| 5 | 08322-0106B-000 | WASHER | WASHER |
| 6 | 51241-85330-000 | ホース,ブレーキリザーバプライマリ | ホース,ブレーキリザーバプライマリ |
| 6 | 51241-85X50-000 | HOSE,BRAKE RESERVOIR | HOSE,BRAKE RESERVOIR |
| 7 | 51242-85130-000 | ホース,ブレーキリザーバセカンダリ | ホース,ブレーキリザーバセカンダリ |
| 8 | 09400-15303-000 | CLAMP | CLAMP |
| 9 | 51010-85011-000 | ホース,ブレーキバキューム,NO.1 | ホース,ブレーキバキューム,NO.1 |
| 9 | 51010-70D00-000 | Hose,brake vacuum no.1 | Hose,brake vacuum no.1 |
| 10 | 09403-18405-000 | CLAMP | CLAMP |
| 11 | 09400-19302-000 | Сlamp | Сlamp |
| 11 | 09401-15404-000 | CLIP | CLIP |
| 12 | 01107-06123-000 | Bolt 6x1x16 - Bolt, front | Bolt 6x1x16 - Bolt, front |
| 12 | 01500-0612A-000 | Bolt | Bolt |
| 12 | 01500-06123-000 | Bolt, front | Bolt, front |
| 13 | 08321-21063-000 | Lock washer | Lock washer |
| 15 | 51252-85400-000 | CLAMP,VACUUM PIPE | CLAMP,VACUUM PIPE |
| 16 | 09128-08005-000 | BOLT(8X11) | BOLT(8X11) |
| 17 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 18 | 09308-09016-000 | GROMMET | GROMMET |
| 21 | 01517-06123-000 | Bolt | Bolt |
| 21 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 21 | 01550-0612A-000 | Bolt | Bolt |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 30 | 01107-06123-000 | Bolt 6x1x16 - Bolt, front | Bolt 6x1x16 - Bolt, front |
| 30 | 01500-06123-000 | Bolt, front | Bolt, front |
| 30 | 01500-0612A-000 | Bolt | Bolt |
| 5 | 01517-06123-000 | Bolt | Bolt |
| 5 | 01550-0612A-000 | Bolt | Bolt |
| 5 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 3 | 02112-06166-000 | Screw | Screw |
| 3 | 02112-0616A-000 | SCREW | SCREW |
| 3 | 02112-0616B-000 | SCREW | SCREW |
| 23 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 23 | 08321-21063-000 | Lock washer | Lock washer |
| 3 | 08321-21066-000 | Lock washer | Lock washer |
| 4 | 08322-0106B-000 | WASHER | WASHER |
| 4 | 08322-21066-000 | Washer | Washer |
| 16 | 09128-08005-000 | BOLT(8X11) | BOLT(8X11) |
| 27 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 18 | 09308-09016-000 | GROMMET | GROMMET |
| 8 | 09400-15303-000 | CLAMP | CLAMP |
| 11 | 09400-19302-000 | Сlamp | Сlamp |
| 11 | 09401-15404-000 | CLIP | CLIP |
| 10 | 09403-18405-000 | CLAMP | CLAMP |
| 9 | 51010-70D00-000 | Hose,brake vacuum no.1 | Hose,brake vacuum no.1 |
| 9 | 51010-85011-000 | ホース,ブレーキバキューム,NO.1 | ホース,ブレーキバキューム,NO.1 |
| 1 | 51200-85110-000 | RESERVOIR ASSY,BRAKE MASTER | RESERVOIR ASSY,BRAKE MASTER |
| 2 | 51220-82010-000 | CAP,RESERVOIR | CAP,RESERVOIR |
| 6 | 51241-85330-000 | ホース,ブレーキリザーバプライマリ | ホース,ブレーキリザーバプライマリ |
| 6 | 51241-85X50-000 | HOSE,BRAKE RESERVOIR | HOSE,BRAKE RESERVOIR |
| 7 | 51242-85130-000 | ホース,ブレーキリザーバセカンダリ | ホース,ブレーキリザーバセカンダリ |
| 15 | 51252-85400-000 | CLAMP,VACUUM PIPE | CLAMP,VACUUM PIPE |
