Search › Compare › DA71V × DB71V
DA71V
Suzuki CARRY-EVERY — 29 of 2,985 shared
DB71V
Suzuki CARRY-EVERY — 29 of 3,317 shared

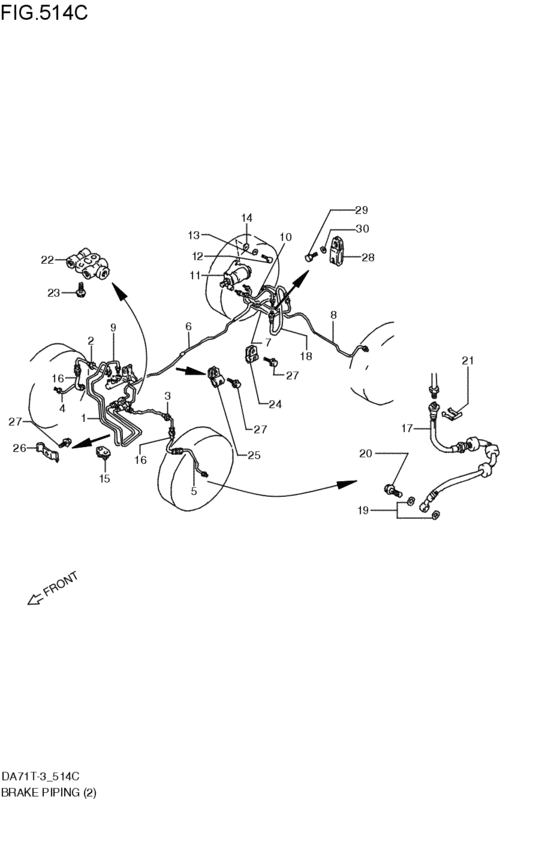

brakes piping (V; 1987-08-01~1989-04-01) 29 / 35
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 1 | 51410-85410-000 | パイプ,ブレーキ,NO.1 | パイプ,ブレーキ,NO.1 |
| 6 | 51460-85111-000 | パイプ,ブレーキ,NO.6 | パイプ,ブレーキ,NO.6 |
| 7 | 51470-85000-000 | PIPE,RR BK HOSE TO R BK ASSY | PIPE,RR BK HOSE TO R BK ASSY |
| 8 | 51480-85000-000 | PIPE,R BK ASSY TO L BK ASSY | PIPE,R BK ASSY TO L BK ASSY |
| 9 | 51510-85410-000 | パイプ,ブレーキ,NO.12 | パイプ,ブレーキ,NO.12 |
| 11 | 51940-85102-000 | バルブアッシ,G.P | バルブアッシ,G.P |
| 12 | 01107-06123-000 | Bolt 6x1x16 - Bolt, front | Bolt 6x1x16 - Bolt, front |
| 12 | 01500-0612A-000 | Bolt | Bolt |
| 12 | 01500-06123-000 | Bolt, front | Bolt, front |
| 13 | 08321-21063-000 | Lock washer | Lock washer |
| 13 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 14 | 08322-21063-000 | Washer | Washer |
| 14 | 08322-0106B-000 | WASHER | WASHER |
| 15 | 51751-85000-000 | GROMMET,BRAKE PIPE | GROMMET,BRAKE PIPE |
| 16 | 51540-85050-000 | ホース,リヤブレーキフレキシブル | ホース,リヤブレーキフレキシブル |
| 16 | 51560-70F00-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 19 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 20 | 09360-10026-000 | Union bolt | Union bolt |
| 21 | 09383-13001-000 | E RING | E RING |
| 21 | 09383-13003-000 | E-RING | E-RING |
| 22 | 51640-85030-000 | JOINT,5WAY BRAKE | JOINT,5WAY BRAKE |
| 23 | 01517-06203-000 | Bolt | Bolt |
| 23 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 23 | 01550-0620A-000 | Bolt | Bolt |
| 24 | 09403-06401-000 | CLAMP | CLAMP |
| 25 | 09403-06407-000 | CLAMP | CLAMP |
| 26 | 09403-07312-000 | CLAMP | CLAMP |
| 27 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 28 | 09403-06404-000 | CLAMP | CLAMP |
| # | OEM | DA71V | DB71V |
|---|---|---|---|
| 30 | 01107-06123-000 | Bolt 6x1x16 - Bolt, front | Bolt 6x1x16 - Bolt, front |
| 30 | 01500-06123-000 | Bolt, front | Bolt, front |
| 30 | 01500-0612A-000 | Bolt | Bolt |
| 29 | 01517-06203-000 | Bolt | Bolt |
| 29 | 01550-0620A-000 | Bolt | Bolt |
| 29 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 23 | 08321-0106A-000 | WASHER,LOCK | WASHER,LOCK |
| 23 | 08321-21063-000 | Lock washer | Lock washer |
| 4 | 08322-0106B-000 | WASHER | WASHER |
| 14 | 08322-21063-000 | Washer | Washer |
| 27 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 19 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 20 | 09360-10026-000 | Union bolt | Union bolt |
| 21 | 09383-13001-000 | E RING | E RING |
| 21 | 09383-13003-000 | E-RING | E-RING |
| 24 | 09403-06401-000 | CLAMP | CLAMP |
| 28 | 09403-06404-000 | CLAMP | CLAMP |
| 25 | 09403-06407-000 | CLAMP | CLAMP |
| 26 | 09403-07312-000 | CLAMP | CLAMP |
| 1 | 51410-85410-000 | パイプ,ブレーキ,NO.1 | パイプ,ブレーキ,NO.1 |
| 6 | 51460-85111-000 | パイプ,ブレーキ,NO.6 | パイプ,ブレーキ,NO.6 |
| 7 | 51470-85000-000 | PIPE,RR BK HOSE TO R BK ASSY | PIPE,RR BK HOSE TO R BK ASSY |
| 8 | 51480-85000-000 | PIPE,R BK ASSY TO L BK ASSY | PIPE,R BK ASSY TO L BK ASSY |
| 9 | 51510-85410-000 | パイプ,ブレーキ,NO.12 | パイプ,ブレーキ,NO.12 |
| 16 | 51540-85050-000 | ホース,リヤブレーキフレキシブル | ホース,リヤブレーキフレキシブル |
| 16 | 51560-70F00-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 22 | 51640-85030-000 | JOINT,5WAY BRAKE | JOINT,5WAY BRAKE |
| 15 | 51751-85000-000 | GROMMET,BRAKE PIPE | GROMMET,BRAKE PIPE |
| 11 | 51940-85102-000 | バルブアッシ,G.P | バルブアッシ,G.P |
