Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 60 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 60 of 3,090 shared

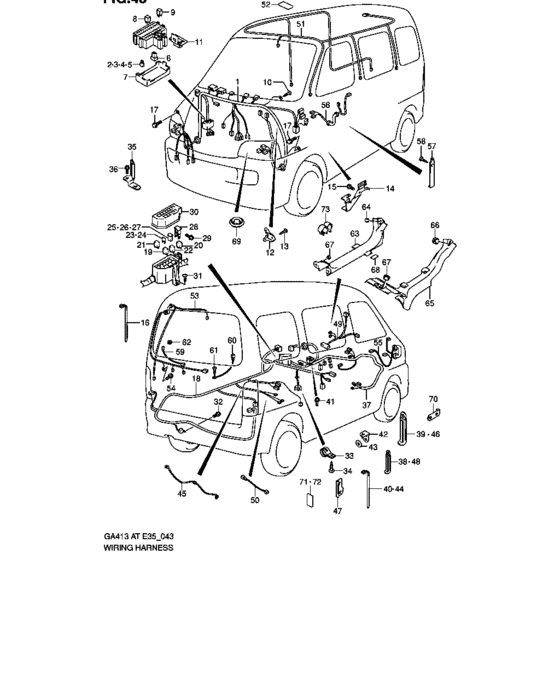

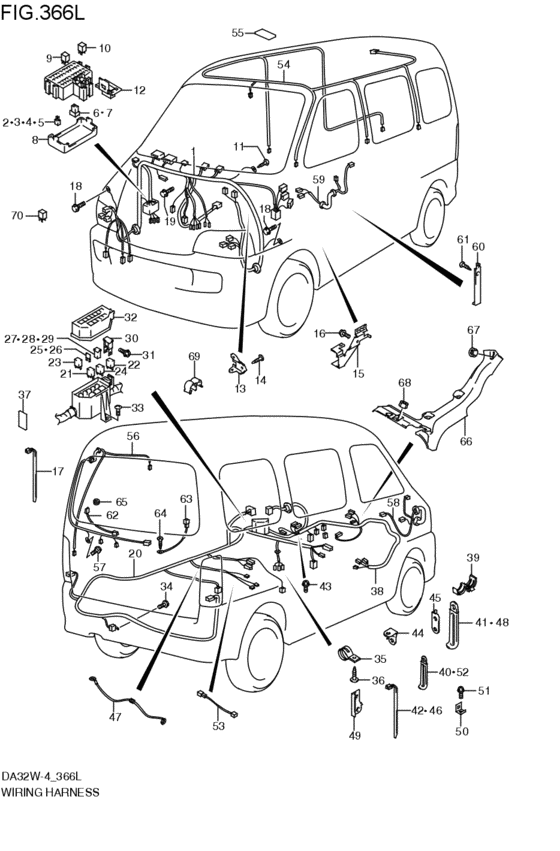

wire ring harness (2001-05-01~) 60 / 78
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 2 | 09481-10501-000 | FUSE(10A) | FUSE(10A) |
| 3 | 09481-15501-000 | FUSE(15A) | FUSE(15A) |
| 4 | 09481-20501-000 | FUSE(20A) | FUSE(20A) |
| 5 | 09481-30501-000 | FUSE(30A) | FUSE(30A) |
| 7 | 09481-30401-000 | FUSE(30A) | FUSE(30A) |
| 8 | 36717-66H00-000 | COVER,FUSE BOX | COVER,FUSE BOX |
| 9 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 11 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 11 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 12 | 33941-78A00-000 | BRACKET,ALDL CONN,R | BRACKET,ALDL CONN,R |
| 13 | 36614-78A00-000 | BRACKET,MAIN HARN | BRACKET,MAIN HARN |
| 14 | 03541-05123-000 | Screw | Screw |
| 14 | 03541-0512B-000 | SCREW | SCREW |
| 15 | 36614-79A00-000 | BRACKET,CONN | BRACKET,CONN |
| 16 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 16 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 16 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 09407-12404-000 | CLAMP(L:140) | CLAMP(L:140) |
| 18 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 18 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 19 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 19 | 02142-0612B-000 | SCREW | SCREW |
| 19 | 02142-0612A-000 | SCREW | SCREW |
| 28 | 09481-50401-000 | FUSE(50A) | FUSE(50A) |
| 29 | 09481-60401-000 | FUSE(60A) | FUSE(60A) |
| 30 | 09481-70301-000 | FUSE(70A) | FUSE(70A) |
| 31 | 09138-06040-000 | BOLT(6X10) | BOLT(6X10) |
| 32 | 36738-66H00-000 | COVER,FUSE BOX | COVER,FUSE BOX |
| 33 | 03141-06163-000 | Screw 6x16 | Screw 6x16 |
| 33 | 03141-0616A-000 | SCREW | SCREW |
| 35 | 36649-79A00-000 | CLAMP,CABLE&HARN | CLAMP,CABLE&HARN |
| 36 | 03141-06123-000 | Screw 6x12 | Screw 6x12 |
| 36 | 03141-0612A-000 | SCREW | SCREW |
| 37 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 38 | 36650-64H31-000 | HARNESS ASSY,ENGINE | HARNESS ASSY,ENGINE |
| 40 | 09404-06434-000 | CLAMP(L:80 T:1.0) | CLAMP(L:80 T:1.0) |
| 40 | 09404-06036-000 | Clamp(L:80) | Clamp(L:80) |
| 41 | 09404-08206-000 | CLAMP(L:65 T:0.8) | CLAMP(L:65 T:0.8) |
| 43 | 01550-06123-000 | Bolt | Bolt |
| 43 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 43 | 01550-0612A-000 | Bolt | Bolt |
| 44 | 36995-57B30-000 | BRACKET,HARN | BRACKET,HARN |
| 45 | 36651-51G00-000 | BRACKET,ENG HARN | BRACKET,ENG HARN |
| 46 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | CLAMP(L:125) - Clamp, spark plug cap |
| 47 | 33851-76A10-000 | CABLE,BTRY GND NO.2 | CABLE,BTRY GND NO.2 |
| 48 | 09404-10417-000 | CLAMP(L:97) | CLAMP(L:97) |
| 49 | 36651-78A20-000 | BRACKET,HARN | BRACKET,HARN |
| 51 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 51 | 02162-0610A-000 | SCREW | SCREW |
| 53 | 36840-79A00-000 | WIRE,FUEL PUMP&GAUGE | WIRE,FUEL PUMP&GAUGE |
| 57 | 09139-05028-000 | SCREW(5X14) | SCREW(5X14) |
| 59 | 36757-66H10-000 | WIRE,FR DR ASST | WIRE,FR DR ASST |
| 60 | 36759-78A00-000 | BRACKET,FRT DR WIRE | BRACKET,FRT DR WIRE |
| 62 | 36890-79A00-000 | WIRE,RR DF PLUS | WIRE,RR DF PLUS |
| 63 | 36891-79A00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 65 | 09308-03005-000 | GROMMET | GROMMET |
| 66 | 75161-63H01-000 | COVER,INTLK CABLE&HARNESS | COVER,INTLK CABLE&HARNESS |
| 67 | 75162-63H00-000 | NUT | NUT |
| 68 | 09159-06076-000 | NUT | NUT |
| 69 | 09408-00100-000 | CLIP | CLIP |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 11 | 01550-06123-000 | Bolt | Bolt |
| 11 | 01550-0612A-000 | Bolt | Bolt |
| 11 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 10 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 10 | 02142-0612A-000 | SCREW | SCREW |
| 10 | 02142-0612B-000 | SCREW | SCREW |
| 7 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 7 | 02162-0610A-000 | SCREW | SCREW |
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 6 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 17 | 03141-06123-000 | Screw 6x12 | Screw 6x12 |
| 17 | 03141-0612A-000 | SCREW | SCREW |
| 10 | 03141-06163-000 | Screw 6x16 | Screw 6x16 |
| 10 | 03141-0616A-000 | SCREW | SCREW |
| 6 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 28 | 03541-05123-000 | Screw | Screw |
| 28 | 03541-0512B-000 | SCREW | SCREW |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 31 | 09138-06040-000 | BOLT(6X10) | BOLT(6X10) |
| 45 | 09139-05028-000 | SCREW(5X14) | SCREW(5X14) |
| 5 | 09159-06076-000 | NUT | NUT |
| 65 | 09308-03005-000 | GROMMET | GROMMET |
| 40 | 09404-06036-000 | Clamp(L:80) | Clamp(L:80) |
| 40 | 09404-06434-000 | CLAMP(L:80 T:1.0) | CLAMP(L:80 T:1.0) |
| 41 | 09404-08206-000 | CLAMP(L:65 T:0.8) | CLAMP(L:65 T:0.8) |
| 23 | 09404-10417-000 | CLAMP(L:97) | CLAMP(L:97) |
| 17 | 09407-12404-000 | CLAMP(L:140) | CLAMP(L:140) |
| 11 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | CLAMP(L:125) - Clamp, spark plug cap |
| 69 | 09408-00100-000 | CLIP | CLIP |
| 2 | 09481-10501-000 | FUSE(10A) | FUSE(10A) |
| 3 | 09481-15501-000 | FUSE(15A) | FUSE(15A) |
| 4 | 09481-20501-000 | FUSE(20A) | FUSE(20A) |
| 7 | 09481-30401-000 | FUSE(30A) | FUSE(30A) |
| 5 | 09481-30501-000 | FUSE(30A) | FUSE(30A) |
| 28 | 09481-50401-000 | FUSE(50A) | FUSE(50A) |
| 29 | 09481-60401-000 | FUSE(60A) | FUSE(60A) |
| 30 | 09481-70301-000 | FUSE(70A) | FUSE(70A) |
| 47 | 33851-76A10-000 | CABLE,BTRY GND NO.2 | CABLE,BTRY GND NO.2 |
| 12 | 33941-78A00-000 | BRACKET,ALDL CONN,R | BRACKET,ALDL CONN,R |
| 13 | 36614-78A00-000 | BRACKET,MAIN HARN | BRACKET,MAIN HARN |
| 15 | 36614-79A00-000 | BRACKET,CONN | BRACKET,CONN |
| 35 | 36649-79A00-000 | CLAMP,CABLE&HARN | CLAMP,CABLE&HARN |
| 38 | 36650-64H31-000 | HARNESS ASSY,ENGINE | HARNESS ASSY,ENGINE |
| 45 | 36651-51G00-000 | BRACKET,ENG HARN | BRACKET,ENG HARN |
| 49 | 36651-78A20-000 | BRACKET,HARN | BRACKET,HARN |
| 8 | 36717-66H00-000 | COVER,FUSE BOX | COVER,FUSE BOX |
| 32 | 36738-66H00-000 | COVER,FUSE BOX | COVER,FUSE BOX |
| 59 | 36757-66H10-000 | WIRE,FR DR ASST | WIRE,FR DR ASST |
| 60 | 36759-78A00-000 | BRACKET,FRT DR WIRE | BRACKET,FRT DR WIRE |
| 53 | 36840-79A00-000 | WIRE,FUEL PUMP&GAUGE | WIRE,FUEL PUMP&GAUGE |
| 62 | 36890-79A00-000 | WIRE,RR DF PLUS | WIRE,RR DF PLUS |
| 63 | 36891-79A00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 24 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 44 | 36995-57B30-000 | BRACKET,HARN | BRACKET,HARN |
| 4 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 66 | 75161-63H01-000 | COVER,INTLK CABLE&HARNESS | COVER,INTLK CABLE&HARNESS |
| 67 | 75162-63H00-000 | NUT | NUT |
