Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 53 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 53 of 3,090 shared

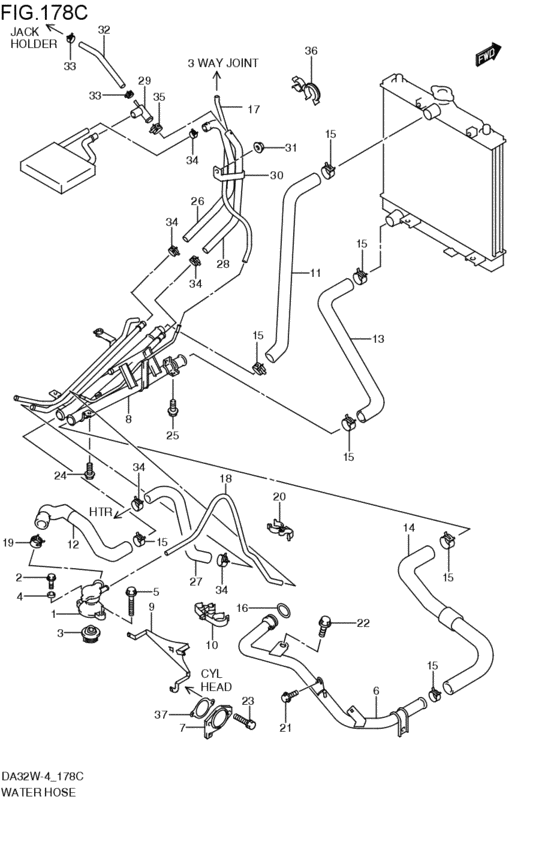

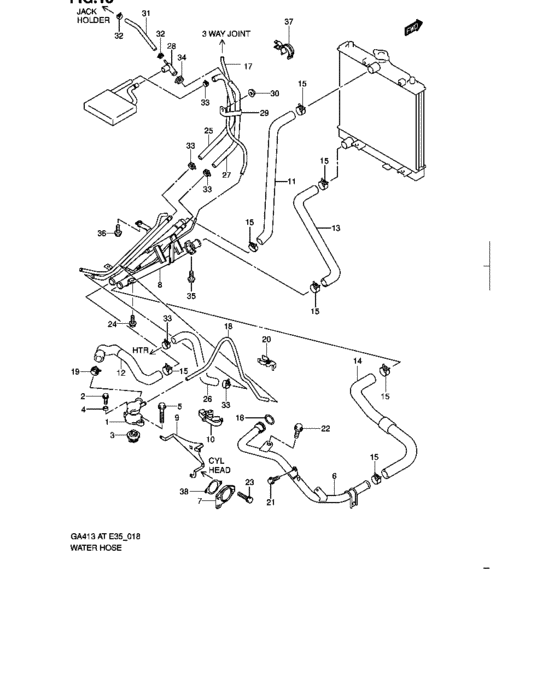

water hose (ラジエターサイド / ヒータサイド; 2001-05-01~) 53 / 53
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 17560-76A32-000 | CAP,WATER THERMOSTAT | CAP,WATER THERMOSTAT |
| 2 | 17568-50F00-000 | UNION BOLT,AIR VENT - Bolt, thermostat cover | UNION BOLT,AIR VENT - Bolt, thermostat cover |
| 3 | 17670-76A01-000 | Thermostat,water(82?c) | Thermostat,water(82?c) |
| 3 | 17670-76A02-000 | THERMOSTAT,WATER 82 DEG | THERMOSTAT,WATER 82 DEG |
| 4 | 09168-06026-000 | GASKET(6.4X11.5X0.8) | GASKET(6.4X11.5X0.8) |
| 5 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 5 | 01550-0825B-000 | Bolt | Bolt |
| 5 | 01550-0825A-000 | Bolt | Bolt |
| 6 | 17550-76A30-000 | Pipe, water inlet rh | Pipe, water inlet rh |
| 6 | 17550-76A31-000 | PIPE,WATER INLET | PIPE,WATER INLET |
| 7 | 17570-80C00-000 | CAP,WATER OUTLET | CAP,WATER OUTLET |
| 7 | 17570-81A02-000 | プレート,ウォータ,アウトレット | プレート,ウォータ,アウトレット |
| 7 | 01570-0825B-000 | Bolt | Bolt |
| 7 | 17699-60B02-000 | GASKET,THERMO CASE | GASKET,THERMO CASE |
| 7 | 01570-0825A-000 | Bolt | Bolt |
| 7 | 01570-08253-000 | Bolt, upper | Bolt, upper |
| 8 | 17820-76A00-000 | PIPE,WATER FLOOR | PIPE,WATER FLOOR |
| 9 | 17843-76A31-000 | BRACKET,WATER HOSE | BRACKET,WATER HOSE |
| 10 | 17844-77A02-000 | CLAMP,WATER HOSE | CLAMP,WATER HOSE |
| 11 | 17846-76A20-000 | HOSE,RADIATOR INLET | HOSE,RADIATOR INLET |
| 12 | 17847-76A30-000 | HOSE,RADIATOR INLET ENG | HOSE,RADIATOR INLET ENG |
| 13 | 17856-76A12-000 | HOSE,RADIATOR OUTLET | HOSE,RADIATOR OUTLET |
| 14 | 17857-77A11-000 | HOSE,RADIATOR OUTLET ENG | HOSE,RADIATOR OUTLET ENG |
| 15 | 09402-32502-000 | CLAMP | CLAMP |
| 16 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 17 | 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) | HOSE(7X12.1X600) - Hose (inmani to iac) |
| 19 | 09401-31406-000 | CLIP | CLIP |
| 20 | 09408-00157-000 | CLAMP | CLAMP |
| 21 | 01550-06123-000 | Bolt | Bolt |
| 21 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 22 | 09103-10209-000 | BOLT(10X23) | BOLT(10X23) |
| 23 | 01570-08203-000 | Bolt | Bolt |
| 23 | 01570-0820B-000 | Bolt | Bolt |
| 23 | 01570-0820A-000 | Bolt | Bolt |
| 24 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 24 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 24 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 25 | 09116-06165-000 | BOLT(6X16) - Bolt, joint | BOLT(6X16) - Bolt, joint |
| 26 | 17873-62H01-000 | HOSE,HEATER INLET | HOSE,HEATER INLET |
| 27 | 17874-76A31-000 | HOSE,HEATER INLET | HOSE,HEATER INLET |
| 28 | 17875-62H01-000 | HOSE,HEATER OUTLET | HOSE,HEATER OUTLET |
| 29 | 17880-78A01-000 | JOINT,HEATER | JOINT,HEATER |
| 30 | 17889-62H00-000 | CLAMP,HEATER HOSE | CLAMP,HEATER HOSE |
| 31 | 09159-06076-000 | NUT | NUT |
| 32 | 09352-50901-600 | HOSE(5X9X600) - Hose, lubrication no.2 | HOSE(5X9X600) - Hose, lubrication no.2 |
| 32 | 09356-58121-600 | HOSE | HOSE |
| 33 | 09401-08411-000 | CLIP | CLIP |
| 33 | 09401-11415-000 | CLIP | CLIP |
| 34 | 09401-18403-000 | CLIP - Clip, heater hose | CLIP - Clip, heater hose |
| 35 | 09401-20405-000 | CLIP - Clip, tank | CLIP - Clip, tank |
| 35 | 09401-21405-000 | CLIP | CLIP |
| 36 | 09408-00194-000 | CLAMP | CLAMP |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 11 | 01550-06123-000 | Bolt | Bolt |
| 11 | 01550-0612A-000 | Bolt | Bolt |
| 11 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 3 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 3 | 01550-0825A-000 | Bolt | Bolt |
| 3 | 01550-0825B-000 | Bolt | Bolt |
| 31 | 01570-08203-000 | Bolt | Bolt |
| 31 | 01570-0820A-000 | Bolt | Bolt |
| 31 | 01570-0820B-000 | Bolt | Bolt |
| 7 | 01570-08253-000 | Bolt, upper | Bolt, upper |
| 7 | 01570-0825A-000 | Bolt | Bolt |
| 7 | 01570-0825B-000 | Bolt | Bolt |
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 3 | 09103-10209-000 | BOLT(10X23) | BOLT(10X23) |
| 25 | 09116-06165-000 | BOLT(6X16) - Bolt, joint | BOLT(6X16) - Bolt, joint |
| 5 | 09159-06076-000 | NUT | NUT |
| 4 | 09168-06026-000 | GASKET(6.4X11.5X0.8) | GASKET(6.4X11.5X0.8) |
| 7 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 32 | 09352-50901-600 | HOSE(5X9X600) - Hose, lubrication no.2 | HOSE(5X9X600) - Hose, lubrication no.2 |
| 13 | 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) | HOSE(7X12.1X600) - Hose (inmani to iac) |
| 32 | 09356-58121-600 | HOSE | HOSE |
| 18 | 09401-08411-000 | CLIP | CLIP |
| 17 | 09401-11415-000 | CLIP | CLIP |
| 11 | 09401-18403-000 | CLIP - Clip, heater hose | CLIP - Clip, heater hose |
| 35 | 09401-20405-000 | CLIP - Clip, tank | CLIP - Clip, tank |
| 35 | 09401-21405-000 | CLIP | CLIP |
| 19 | 09401-31406-000 | CLIP | CLIP |
| 15 | 09402-32502-000 | CLAMP | CLAMP |
| 29 | 09408-00157-000 | CLAMP | CLAMP |
| 36 | 09408-00194-000 | CLAMP | CLAMP |
| 6 | 17550-76A30-000 | Pipe, water inlet rh | Pipe, water inlet rh |
| 6 | 17550-76A31-000 | PIPE,WATER INLET | PIPE,WATER INLET |
| 1 | 17560-76A32-000 | CAP,WATER THERMOSTAT | CAP,WATER THERMOSTAT |
| 2 | 17568-50F00-000 | UNION BOLT,AIR VENT - Bolt, thermostat cover | UNION BOLT,AIR VENT - Bolt, thermostat cover |
| 7 | 17570-80C00-000 | CAP,WATER OUTLET | CAP,WATER OUTLET |
| 7 | 17570-81A02-000 | プレート,ウォータ,アウトレット | プレート,ウォータ,アウトレット |
| 3 | 17670-76A01-000 | Thermostat,water(82?c) | Thermostat,water(82?c) |
| 3 | 17670-76A02-000 | THERMOSTAT,WATER 82 DEG | THERMOSTAT,WATER 82 DEG |
| 7 | 17699-60B02-000 | GASKET,THERMO CASE | GASKET,THERMO CASE |
| 8 | 17820-76A00-000 | PIPE,WATER FLOOR | PIPE,WATER FLOOR |
| 9 | 17843-76A31-000 | BRACKET,WATER HOSE | BRACKET,WATER HOSE |
| 10 | 17844-77A02-000 | CLAMP,WATER HOSE | CLAMP,WATER HOSE |
| 11 | 17846-76A20-000 | HOSE,RADIATOR INLET | HOSE,RADIATOR INLET |
| 12 | 17847-76A30-000 | HOSE,RADIATOR INLET ENG | HOSE,RADIATOR INLET ENG |
| 13 | 17856-76A12-000 | HOSE,RADIATOR OUTLET | HOSE,RADIATOR OUTLET |
| 14 | 17857-77A11-000 | HOSE,RADIATOR OUTLET ENG | HOSE,RADIATOR OUTLET ENG |
| 26 | 17873-62H01-000 | HOSE,HEATER INLET | HOSE,HEATER INLET |
| 27 | 17874-76A31-000 | HOSE,HEATER INLET | HOSE,HEATER INLET |
| 28 | 17875-62H01-000 | HOSE,HEATER OUTLET | HOSE,HEATER OUTLET |
| 29 | 17880-78A01-000 | JOINT,HEATER | JOINT,HEATER |
| 30 | 17889-62H00-000 | CLAMP,HEATER HOSE | CLAMP,HEATER HOSE |
