Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 21 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 21 of 3,090 shared

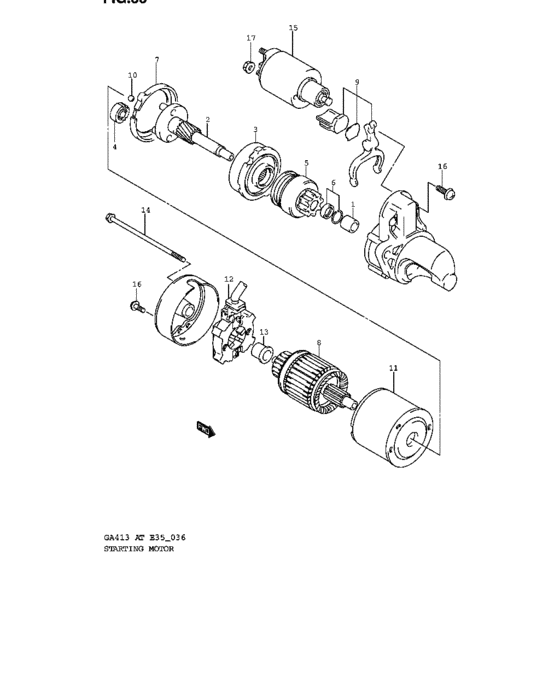

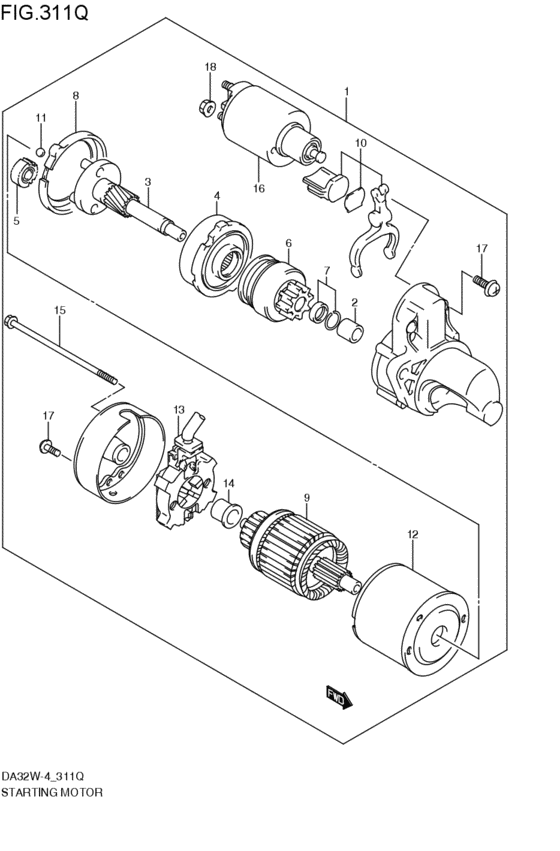

starting motor (2001-05-01~) 21 / 21
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 31100-76A00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 2 | 31152-79030-000 | BEARING,FRONT | BEARING,FRONT |
| 3 | 31341-76A00-000 | SHAFT,GEAR | SHAFT,GEAR |
| 4 | 31343-80G00-000 | INTERNAL GEAR | INTERNAL GEAR |
| 5 | 31344-86030-000 | GEAR,PLNTY | GEAR,PLNTY |
| 6 | 31320-64B60-000 | Clutch,over running | Clutch,over running |
| 7 | 31313-86030-000 | STOPPER SET | STOPPER SET |
| 7 | 31314-86030-000 | Stopper Set | Stopper Set |
| 8 | 31345-80G00-000 | PACKING | PACKING |
| 9 | 31311-75F10-000 | ARMATURE | ARMATURE |
| 10 | 31191-76A00-000 | LEVER ASSY | LEVER ASSY |
| 11 | 31193-86030-000 | BALL | BALL |
| 12 | 31110-76A00-000 | Yoke assy | Yoke assy |
| 13 | 31173-76A00-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 14 | 31172-64B60-000 | BEARING,REAR | BEARING,REAR |
| 15 | 31261-75F10-000 | Bolt | Bolt |
| 16 | 31220-86032-000 | SWITCH ASSY | SWITCH ASSY |
| 17 | 31136-79030-000 | SCREW ASSY | SCREW ASSY |
| 17 | 31175-79030-000 | Screw Set | Screw Set |
| 18 | 08316-10083-000 | Nut | Nut |
| 18 | 08316-1008B-000 | NUT | NUT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 3 | 08316-10083-000 | Nut | Nut |
| 3 | 08316-1008B-000 | NUT | NUT |
| 1 | 31100-76A00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 12 | 31110-76A00-000 | Yoke assy | Yoke assy |
| 17 | 31136-79030-000 | SCREW ASSY | SCREW ASSY |
| 2 | 31152-79030-000 | BEARING,FRONT | BEARING,FRONT |
| 14 | 31172-64B60-000 | BEARING,REAR | BEARING,REAR |
| 13 | 31173-76A00-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 17 | 31175-79030-000 | Screw Set | Screw Set |
| 10 | 31191-76A00-000 | LEVER ASSY | LEVER ASSY |
| 11 | 31193-86030-000 | BALL | BALL |
| 16 | 31220-86032-000 | SWITCH ASSY | SWITCH ASSY |
| 15 | 31261-75F10-000 | Bolt | Bolt |
| 9 | 31311-75F10-000 | ARMATURE | ARMATURE |
| 7 | 31313-86030-000 | STOPPER SET | STOPPER SET |
| 7 | 31314-86030-000 | Stopper Set | Stopper Set |
| 6 | 31320-64B60-000 | Clutch,over running | Clutch,over running |
| 3 | 31341-76A00-000 | SHAFT,GEAR | SHAFT,GEAR |
| 4 | 31343-80G00-000 | INTERNAL GEAR | INTERNAL GEAR |
| 5 | 31344-86030-000 | GEAR,PLNTY | GEAR,PLNTY |
| 8 | 31345-80G00-000 | PACKING | PACKING |
