Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 16 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 16 of 3,090 shared

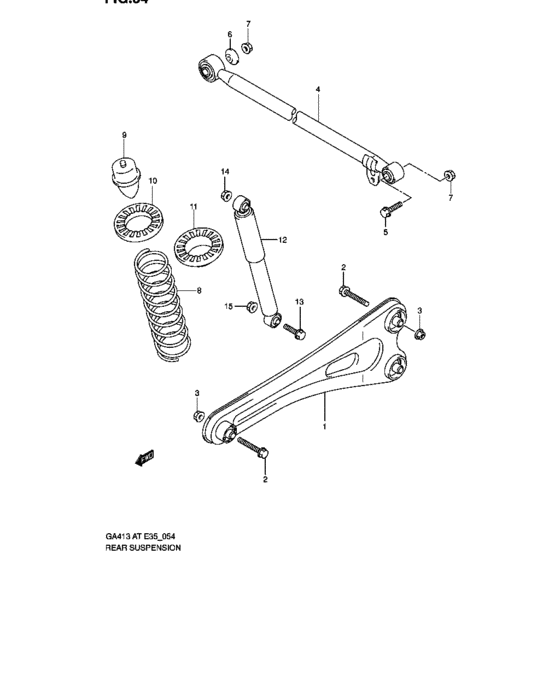

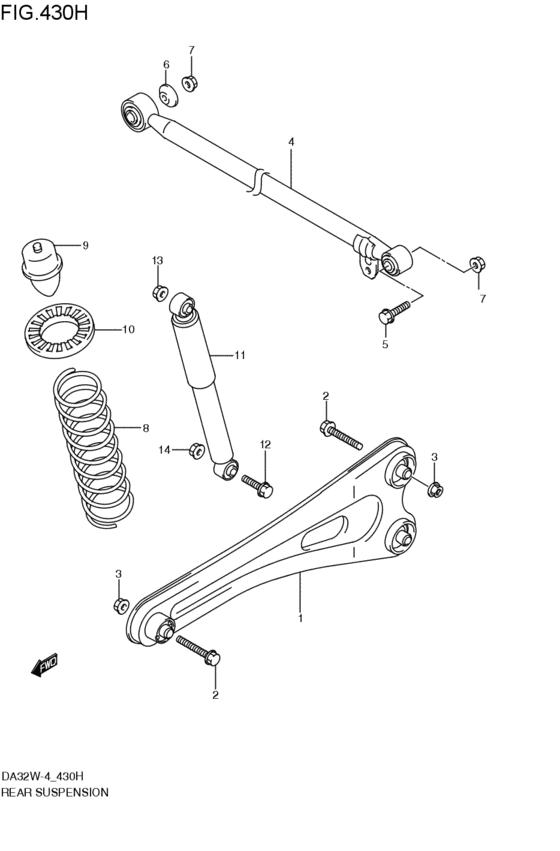

rear suspension (2001-05-01~) 16 / 16
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 46200-77A00-000 | ARM ASSY,RR TRAILING | ARM ASSY,RR TRAILING |
| 2 | 09103-12044-000 | BOLT(12X87) | BOLT(12X87) |
| 3 | 08316-10123-000 | Nut | Nut |
| 3 | 08316-1012A-000 | NUT | NUT |
| 4 | 46300-61HA0-000 | ROD ASSY,LATERAL | ROD ASSY,LATERAL |
| 5 | 09135-12003-000 | BOLT(12X71) | BOLT(12X71) |
| 6 | 09164-12017-000 | WASHER | WASHER |
| 8 | 41311-64H00-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 9 | 42110-77A00-000 | STOPPER,BUMP | STOPPER,BUMP |
| 10 | 41341-66H00-000 | SEAT,REAR SPRING UPPER | SEAT,REAR SPRING UPPER |
| 10 | 41341-79A00-000 | SEAT,REAR SPRING UPPER | SEAT,REAR SPRING UPPER |
| 11 | 41700-77A01-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 11 | 41700-77A02-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 12 | 09103-12501-000 | BOLT(12X55) | BOLT(12X55) |
| 13 | 08316-10103-000 | Nut | Nut |
| 13 | 08316-1010B-000 | NUT | NUT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 31 | 08316-10103-000 | Nut | Nut |
| 31 | 08316-1010B-000 | NUT | NUT |
| 19 | 08316-10123-000 | Nut | Nut |
| 19 | 08316-1012A-000 | NUT | NUT |
| 2 | 09103-12044-000 | BOLT(12X87) | BOLT(12X87) |
| 12 | 09103-12501-000 | BOLT(12X55) | BOLT(12X55) |
| 5 | 09135-12003-000 | BOLT(12X71) | BOLT(12X71) |
| 6 | 09164-12017-000 | WASHER | WASHER |
| 8 | 41311-64H00-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 10 | 41341-66H00-000 | SEAT,REAR SPRING UPPER | SEAT,REAR SPRING UPPER |
| 10 | 41341-79A00-000 | SEAT,REAR SPRING UPPER | SEAT,REAR SPRING UPPER |
| 11 | 41700-77A01-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 11 | 41700-77A02-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 9 | 42110-77A00-000 | STOPPER,BUMP | STOPPER,BUMP |
| 1 | 46200-77A00-000 | ARM ASSY,RR TRAILING | ARM ASSY,RR TRAILING |
| 4 | 46300-61HA0-000 | ROD ASSY,LATERAL | ROD ASSY,LATERAL |
