Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 38 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 38 of 3,090 shared

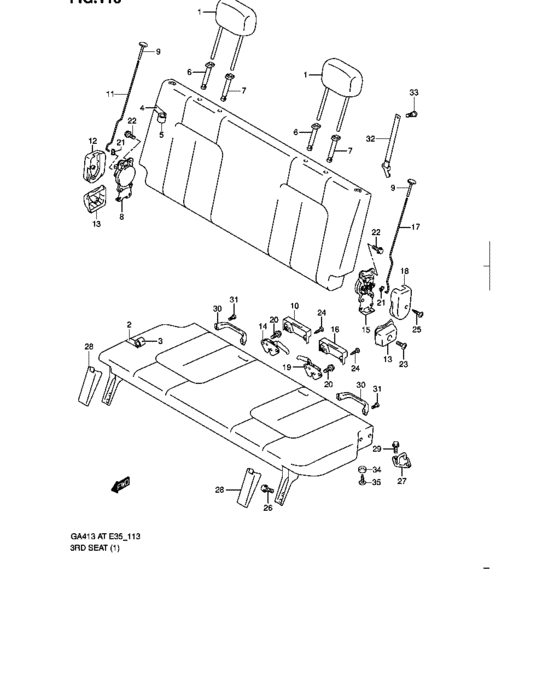

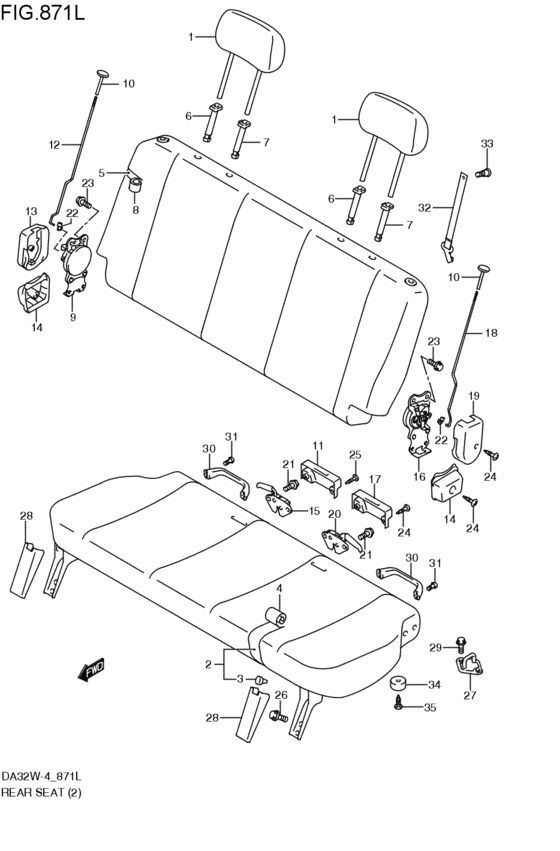

rear seat (サードシート,200105 カラ 200308 マデ; 2001-05-01~2003-08-01) 38 / 42
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 86401-64H00-FY7 | HEADRESTRAINT ASSY,3RD | HEADRESTRAINT ASSY,3RD |
| 2 | 88105-64H00-000 | Cushion sub assy,3rd | Cushion sub assy,3rd |
| 5 | 88305-64H00-000 | BACK S/ASSY,3RD | BACK S/ASSY,3RD |
| 6 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 7 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 9 | 87210-76A11-000 | RECLINING ASSY,RR,R | RECLINING ASSY,RR,R |
| 10 | 87211-74G00-P4Z | Knob,3rd rclng(gray) | Knob,3rd rclng(gray) |
| 10 | 87211-74G10-P4Z | KNOB,RR BACK | KNOB,RR BACK |
| 11 | 88213-76AC0-P4Z | COVER,3RD LOCK | COVER,3RD LOCK |
| 12 | 87215-64H00-000 | ROD,RR RCLNG,R | ROD,RR RCLNG,R |
| 13 | 87222-79A10-P4Z | COVER,RR RECL UPPER,R | COVER,RR RECL UPPER,R |
| 14 | 87223-76A00-P4Z | COVER,2ND RECL LOWER | COVER,2ND RECL LOWER |
| 15 | 87460-64H20-000 | LOCK ASSY,3RD,R | LOCK ASSY,3RD,R |
| 16 | 87710-76A11-000 | RECLINING ASSY,RR,L | RECLINING ASSY,RR,L |
| 18 | 87715-64H00-000 | ROD,RR RCLNG,L | ROD,RR RCLNG,L |
| 19 | 87722-79A10-P4Z | COVER,RR RECL UPPER,L | COVER,RR RECL UPPER,L |
| 20 | 87960-64H20-000 | Lock assy,3rd,l | Lock assy,3rd,l |
| 21 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | BOLT(7/16X22) - Bolt, fr belt buckle |
| 22 | 09403-04306-000 | CLAMP - Connector, choke rod | CLAMP - Connector, choke rod |
| 23 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 23 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 24 | 03241-05083-000 | Screw | Screw |
| 24 | 03241-0508A-000 | SCREW | SCREW |
| 26 | 01551-0816A-000 | ボルト | ボルト |
| 26 | 01551-0816C-000 | Bolt | Bolt |
| 27 | 87870-76AC0-000 | STRIKER,3RD | STRIKER,3RD |
| 28 | 88491-76AC0-P4Z | COVER,3RD LEG | COVER,3RD LEG |
| 29 | 01551-10203-000 | Bolt, 3rd striker | Bolt, 3rd striker |
| 29 | 01551-1020A-000 | Bolt | Bolt |
| 30 | 76411-70G00-P4Z | GRIP,ASST | GRIP,ASST |
| 30 | 76411-70G00-6GS | GRIP ASSISTANT GREY | GRIP ASSISTANT GREY |
| 30 | 76400-70820-6GS | GRIP,ASST | GRIP,ASST |
| 31 | 09125-06041-000 | SCREW(6X20) | SCREW(6X20) |
| 32 | 88270-76AC0-000 | BAND,3RD SEAT STOPPER | BAND,3RD SEAT STOPPER |
| 33 | 09139-06040-000 | SCREW(6X20) | SCREW(6X20) |
| 34 | 88114-76AC0-000 | CUSHION,RR SEAT STOPPER,RR | CUSHION,RR SEAT STOPPER,RR |
| 35 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 35 | 03241-0512A-000 | SCREW | SCREW |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 12 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 12 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 10 | 01551-0816A-000 | ボルト | ボルト |
| 10 | 01551-0816C-000 | Bolt | Bolt |
| 61 | 01551-10203-000 | Bolt, 3rd striker | Bolt, 3rd striker |
| 61 | 01551-1020A-000 | Bolt | Bolt |
| 32 | 03241-05083-000 | Screw | Screw |
| 32 | 03241-0508A-000 | SCREW | SCREW |
| 12 | 03241-0512A-000 | SCREW | SCREW |
| 12 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 10 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | BOLT(7/16X22) - Bolt, fr belt buckle |
| 37 | 09125-06041-000 | SCREW(6X20) | SCREW(6X20) |
| 33 | 09139-06040-000 | SCREW(6X20) | SCREW(6X20) |
| 22 | 09403-04306-000 | CLAMP - Connector, choke rod | CLAMP - Connector, choke rod |
| 36 | 76400-70820-6GS | GRIP,ASST | GRIP,ASST |
| 36 | 76411-70G00-6GS | GRIP ASSISTANT GREY | GRIP ASSISTANT GREY |
| 30 | 76411-70G00-P4Z | GRIP,ASST | GRIP,ASST |
| 8 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 9 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 1 | 86401-64H00-FY7 | HEADRESTRAINT ASSY,3RD | HEADRESTRAINT ASSY,3RD |
| 9 | 87210-76A11-000 | RECLINING ASSY,RR,R | RECLINING ASSY,RR,R |
| 10 | 87211-74G00-P4Z | Knob,3rd rclng(gray) | Knob,3rd rclng(gray) |
| 10 | 87211-74G10-P4Z | KNOB,RR BACK | KNOB,RR BACK |
| 12 | 87215-64H00-000 | ROD,RR RCLNG,R | ROD,RR RCLNG,R |
| 13 | 87222-79A10-P4Z | COVER,RR RECL UPPER,R | COVER,RR RECL UPPER,R |
| 14 | 87223-76A00-P4Z | COVER,2ND RECL LOWER | COVER,2ND RECL LOWER |
| 15 | 87460-64H20-000 | LOCK ASSY,3RD,R | LOCK ASSY,3RD,R |
| 16 | 87710-76A11-000 | RECLINING ASSY,RR,L | RECLINING ASSY,RR,L |
| 18 | 87715-64H00-000 | ROD,RR RCLNG,L | ROD,RR RCLNG,L |
| 19 | 87722-79A10-P4Z | COVER,RR RECL UPPER,L | COVER,RR RECL UPPER,L |
| 27 | 87870-76AC0-000 | STRIKER,3RD | STRIKER,3RD |
| 20 | 87960-64H20-000 | Lock assy,3rd,l | Lock assy,3rd,l |
| 2 | 88105-64H00-000 | Cushion sub assy,3rd | Cushion sub assy,3rd |
| 34 | 88114-76AC0-000 | CUSHION,RR SEAT STOPPER,RR | CUSHION,RR SEAT STOPPER,RR |
| 11 | 88213-76AC0-P4Z | COVER,3RD LOCK | COVER,3RD LOCK |
| 32 | 88270-76AC0-000 | BAND,3RD SEAT STOPPER | BAND,3RD SEAT STOPPER |
| 5 | 88305-64H00-000 | BACK S/ASSY,3RD | BACK S/ASSY,3RD |
| 28 | 88491-76AC0-P4Z | COVER,3RD LEG | COVER,3RD LEG |
