Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 32 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 32 of 3,090 shared

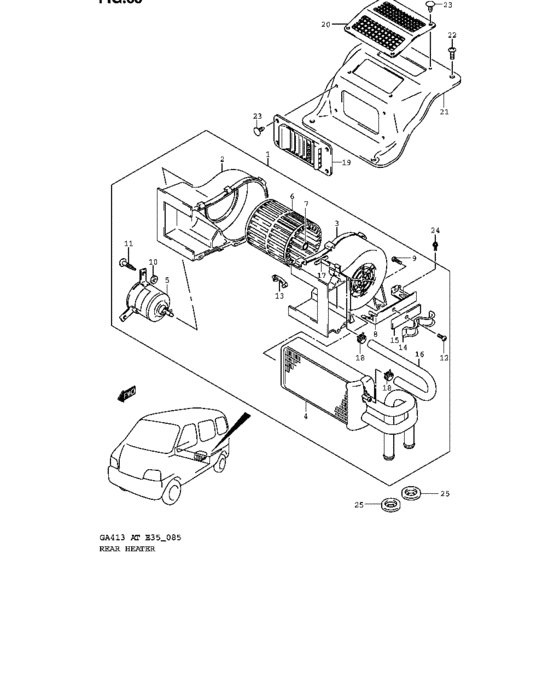

rear heater (2001-05-01~) 32 / 32
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 74300-78A11-000 | HEATER UNIT,RR | HEATER UNIT,RR |
| 2 | 74311-85501-000 | CASE,HTR,R | CASE,HTR,R |
| 3 | 74312-85501-000 | CASE,RR HTR,LOWER | CASE,RR HTR,LOWER |
| 4 | 74320-50F00-000 | C0RE,RR HEATER | C0RE,RR HEATER |
| 5 | 74330-50X50-000 | MOTOR ASSY | MOTOR ASSY |
| 6 | 74341-85501-000 | BLOWER,RR HEATER | BLOWER,RR HEATER |
| 7 | 08331-31066-000 | CIRCLIP | CIRCLIP |
| 8 | 74361-50F01-000 | STAY,REAR HEATER | STAY,REAR HEATER |
| 9 | 74366-85500-000 | SCREW,STAY | SCREW,STAY |
| 10 | 74363-85500-000 | CUSHION,MOTOR | CUSHION,MOTOR |
| 11 | 03542-06123-000 | Screw | Screw |
| 11 | 03542-0612B-000 | SCREW | SCREW |
| 12 | 03112-05123-000 | Screw | Screw |
| 12 | 03111-0512A-000 | SCREW | SCREW |
| 13 | 74316-85500-000 | CLAMP - Clamp, case | CLAMP - Clamp, case |
| 14 | 74329-50F00-000 | CLAMP,HTR RR | CLAMP,HTR RR |
| 15 | 74328-50F00-000 | CUSHION,HTR PIPE | CUSHION,HTR PIPE |
| 16 | 74191-50F00-000 | HOSE,HTR AIR | HOSE,HTR AIR |
| 17 | 74319-78A00-000 | PLUG | PLUG |
| 18 | 09401-08411-000 | CLIP | CLIP |
| 19 | 74351-79A00-P4Z | GARNISH,RR HTR | GARNISH,RR HTR |
| 20 | 74351-76A00-P4Z | GARNISH,AIR INLET | GARNISH,AIR INLET |
| 21 | 74352-76A00-000 | LID,RR HTR | LID,RR HTR |
| 22 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 22 | 02142-0612B-000 | SCREW | SCREW |
| 22 | 02142-0612A-000 | SCREW | SCREW |
| 23 | 09409-05307-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 23 | 09409-05307-T01 | CLIP(GRAY) - Clip (gray) | CLIP(GRAY) - Clip (gray) |
| 24 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 24 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 24 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 25 | 09308-10005-000 | GROMMET - Grommet, rr lead | GROMMET - Grommet, rr lead |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 10 | 02142-0612A-000 | SCREW | SCREW |
| 10 | 02142-0612B-000 | SCREW | SCREW |
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 12 | 03111-0512A-000 | SCREW | SCREW |
| 12 | 03112-05123-000 | Screw | Screw |
| 11 | 03542-06123-000 | Screw | Screw |
| 11 | 03542-0612B-000 | SCREW | SCREW |
| 7 | 08331-31066-000 | CIRCLIP | CIRCLIP |
| 25 | 09308-10005-000 | GROMMET - Grommet, rr lead | GROMMET - Grommet, rr lead |
| 18 | 09401-08411-000 | CLIP | CLIP |
| 23 | 09409-05307-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 23 | 09409-05307-T01 | CLIP(GRAY) - Clip (gray) | CLIP(GRAY) - Clip (gray) |
| 16 | 74191-50F00-000 | HOSE,HTR AIR | HOSE,HTR AIR |
| 1 | 74300-78A11-000 | HEATER UNIT,RR | HEATER UNIT,RR |
| 2 | 74311-85501-000 | CASE,HTR,R | CASE,HTR,R |
| 3 | 74312-85501-000 | CASE,RR HTR,LOWER | CASE,RR HTR,LOWER |
| 16 | 74316-85500-000 | CLAMP - Clamp, case | CLAMP - Clamp, case |
| 17 | 74319-78A00-000 | PLUG | PLUG |
| 4 | 74320-50F00-000 | C0RE,RR HEATER | C0RE,RR HEATER |
| 15 | 74328-50F00-000 | CUSHION,HTR PIPE | CUSHION,HTR PIPE |
| 14 | 74329-50F00-000 | CLAMP,HTR RR | CLAMP,HTR RR |
| 5 | 74330-50X50-000 | MOTOR ASSY | MOTOR ASSY |
| 6 | 74341-85501-000 | BLOWER,RR HEATER | BLOWER,RR HEATER |
| 20 | 74351-76A00-P4Z | GARNISH,AIR INLET | GARNISH,AIR INLET |
| 19 | 74351-79A00-P4Z | GARNISH,RR HTR | GARNISH,RR HTR |
| 21 | 74352-76A00-000 | LID,RR HTR | LID,RR HTR |
| 8 | 74361-50F01-000 | STAY,REAR HEATER | STAY,REAR HEATER |
| 10 | 74363-85500-000 | CUSHION,MOTOR | CUSHION,MOTOR |
| 9 | 74366-85500-000 | SCREW,STAY | SCREW,STAY |
