Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 38 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 38 of 3,090 shared

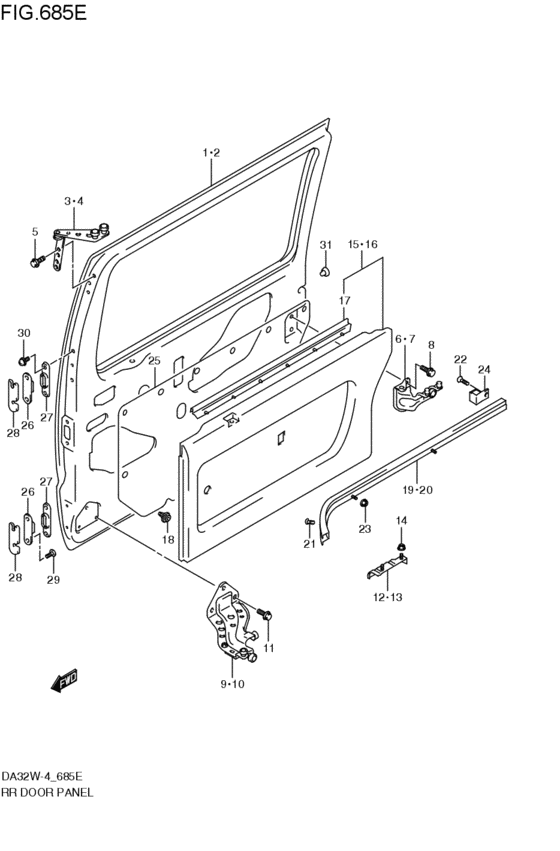

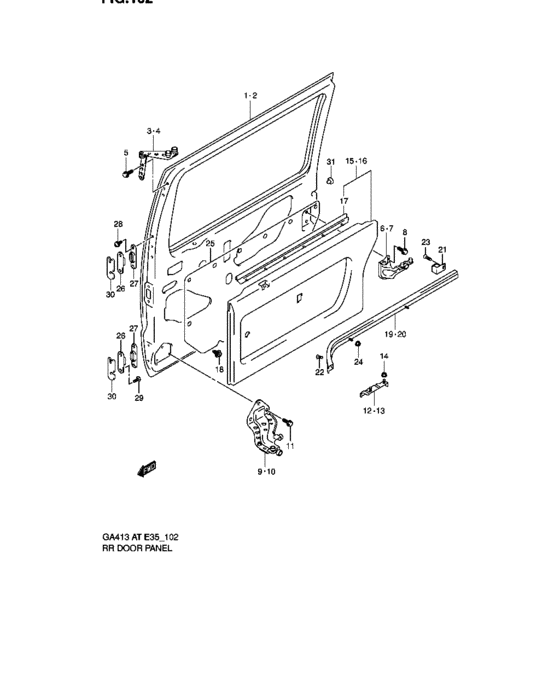

rear door panel (2001-05-01~) 38 / 38
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 68500-79AP0-000 | PANEL ASSY,REAR DOOR,R | PANEL ASSY,REAR DOOR,R |
| 2 | 68700-79AP0-000 | PANEL ASSY,REAR DOOR,L | PANEL ASSY,REAR DOOR,L |
| 3 | 84120-79A01-000 | ARM,RR DR UPR,R | ARM,RR DR UPR,R |
| 4 | 84220-79A01-000 | ARM,RR DR UPR,L | ARM,RR DR UPR,L |
| 5 | 01551-08163-000 | Bolt | Bolt |
| 5 | 01551-0816C-000 | Bolt | Bolt |
| 5 | 01551-0816A-000 | ボルト | ボルト |
| 6 | 84110-79A00-000 | HINGE,RR DOOR SLIDE,R | HINGE,RR DOOR SLIDE,R |
| 7 | 84210-79A00-000 | HINGE,RR DOOR SLIDE,L | HINGE,RR DOOR SLIDE,L |
| 9 | 84130-77A01-000 | ARM,RR DR LWR,R | ARM,RR DR LWR,R |
| 10 | 84230-77A01-000 | ARM,RR DR LWR,L | ARM,RR DR LWR,L |
| 12 | 84140-79A00-000 | SPRING,RR DOOR OPEN STOP,R | SPRING,RR DOOR OPEN STOP,R |
| 13 | 84240-79A00-000 | SPRING,RR DOOR OPEN STOP,L | SPRING,RR DOOR OPEN STOP,L |
| 14 | 08316-20063-000 | Nut | Nut |
| 14 | 08316-2006A-000 | NUT | NUT |
| 15 | 83703-61H80-AJB | TRIM ASSY,RR DOOR,R | TRIM ASSY,RR DOOR,R |
| 15 | 83703-61H80-FY9 | TRIM ASSY,RR DOOR,R | TRIM ASSY,RR DOOR,R |
| 16 | 83704-61H80-AJB | TRIM ASSY,RR DOOR,L | TRIM ASSY,RR DOOR,L |
| 16 | 83704-61H80-FY9 | Trim assy,rear door,l | Trim assy,rear door,l |
| 17 | 83851-77A51-000 | WEATHERSTRIP,DR INR | WEATHERSTRIP,DR INR |
| 18 | 09409-08320-000 | CLIP | CLIP |
| 19 | 84150-63H00-000 | RAIL,RR DOOR CENTER,R | RAIL,RR DOOR CENTER,R |
| 20 | 84250-63H00-000 | RAIL,RR DOOR CENTER,L | RAIL,RR DOOR CENTER,L |
| 21 | 02122-06123-000 | Screw | Screw |
| 21 | 02122-0612B-000 | SCREW | SCREW |
| 21 | 02122-0612A-000 | SCREW | SCREW |
| 22 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 22 | 02142-0612B-000 | SCREW | SCREW |
| 22 | 02142-0612A-000 | SCREW | SCREW |
| 24 | 84160-77A00-000 | STOPPER,RR DR HINGE SLIDE OPEN | STOPPER,RR DR HINGE SLIDE OPEN |
| 25 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 25 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 26 | 82741-79A00-000 | STOPPER,RR DR FR BODY | STOPPER,RR DR FR BODY |
| 27 | 82751-70D00-000 | STOPPER,DR FR DR | STOPPER,DR FR DR |
| 28 | 82795-54F00-000 | SPACER,RR DR STPR BODY | SPACER,RR DR STPR BODY |
| 30 | 02112-76163-000 | Screw | Screw |
| 30 | 02112-7616A-000 | SCREW | SCREW |
| 31 | 77222-54F00-000 | CUSHION,REAR DR STOPPER,UPR | CUSHION,REAR DR STOPPER,UPR |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 01551-08163-000 | Bolt | Bolt |
| 10 | 01551-0816A-000 | ボルト | ボルト |
| 10 | 01551-0816C-000 | Bolt | Bolt |
| 30 | 02112-76163-000 | Screw | Screw |
| 30 | 02112-7616A-000 | SCREW | SCREW |
| 21 | 02122-06123-000 | Screw | Screw |
| 21 | 02122-0612A-000 | SCREW | SCREW |
| 21 | 02122-0612B-000 | SCREW | SCREW |
| 10 | 02142-06123-000 | Screw - Screw, tilt up handle | Screw - Screw, tilt up handle |
| 10 | 02142-0612A-000 | SCREW | SCREW |
| 10 | 02142-0612B-000 | SCREW | SCREW |
| 14 | 08316-20063-000 | Nut | Nut |
| 14 | 08316-2006A-000 | NUT | NUT |
| 10 | 09409-08320-000 | CLIP | CLIP |
| 1 | 68500-79AP0-000 | PANEL ASSY,REAR DOOR,R | PANEL ASSY,REAR DOOR,R |
| 2 | 68700-79AP0-000 | PANEL ASSY,REAR DOOR,L | PANEL ASSY,REAR DOOR,L |
| 31 | 77222-54F00-000 | CUSHION,REAR DR STOPPER,UPR | CUSHION,REAR DR STOPPER,UPR |
| 26 | 82741-79A00-000 | STOPPER,RR DR FR BODY | STOPPER,RR DR FR BODY |
| 27 | 82751-70D00-000 | STOPPER,DR FR DR | STOPPER,DR FR DR |
| 28 | 82795-54F00-000 | SPACER,RR DR STPR BODY | SPACER,RR DR STPR BODY |
| 15 | 83703-61H80-AJB | TRIM ASSY,RR DOOR,R | TRIM ASSY,RR DOOR,R |
| 15 | 83703-61H80-FY9 | TRIM ASSY,RR DOOR,R | TRIM ASSY,RR DOOR,R |
| 16 | 83704-61H80-AJB | TRIM ASSY,RR DOOR,L | TRIM ASSY,RR DOOR,L |
| 16 | 83704-61H80-FY9 | Trim assy,rear door,l | Trim assy,rear door,l |
| 8 | 83851-77A51-000 | WEATHERSTRIP,DR INR | WEATHERSTRIP,DR INR |
| 11 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 11 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 6 | 84110-79A00-000 | HINGE,RR DOOR SLIDE,R | HINGE,RR DOOR SLIDE,R |
| 3 | 84120-79A01-000 | ARM,RR DR UPR,R | ARM,RR DR UPR,R |
| 9 | 84130-77A01-000 | ARM,RR DR LWR,R | ARM,RR DR LWR,R |
| 12 | 84140-79A00-000 | SPRING,RR DOOR OPEN STOP,R | SPRING,RR DOOR OPEN STOP,R |
| 19 | 84150-63H00-000 | RAIL,RR DOOR CENTER,R | RAIL,RR DOOR CENTER,R |
| 24 | 84160-77A00-000 | STOPPER,RR DR HINGE SLIDE OPEN | STOPPER,RR DR HINGE SLIDE OPEN |
| 7 | 84210-79A00-000 | HINGE,RR DOOR SLIDE,L | HINGE,RR DOOR SLIDE,L |
| 4 | 84220-79A01-000 | ARM,RR DR UPR,L | ARM,RR DR UPR,L |
| 10 | 84230-77A01-000 | ARM,RR DR LWR,L | ARM,RR DR LWR,L |
| 13 | 84240-79A00-000 | SPRING,RR DOOR OPEN STOP,L | SPRING,RR DOOR OPEN STOP,L |
| 20 | 84250-63H00-000 | RAIL,RR DOOR CENTER,L | RAIL,RR DOOR CENTER,L |
