Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 41 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 41 of 3,090 shared

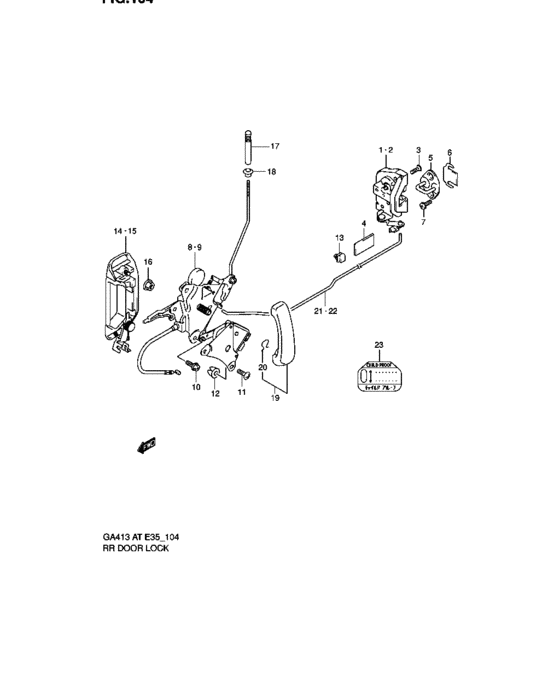

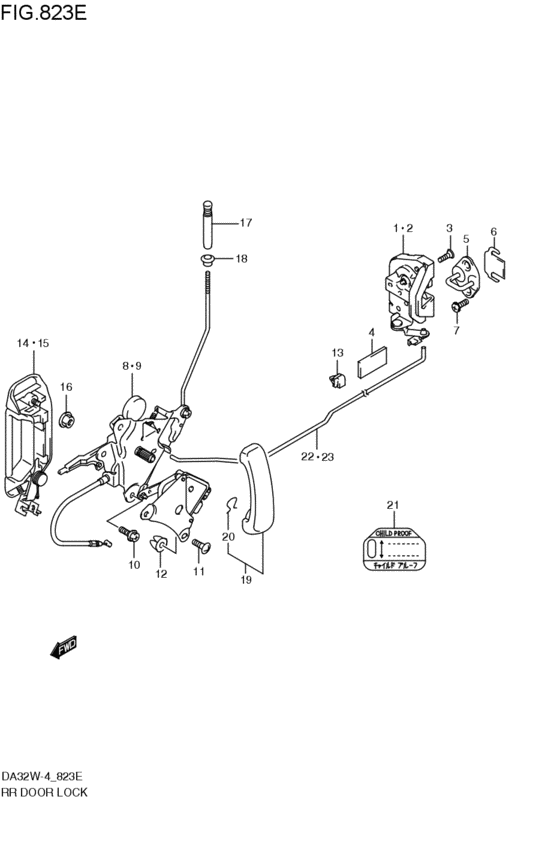

rear door lock (2001-05-01~) 41 / 41
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 82301-54F01-000 | LATCH ASSY,RR DR,R | LATCH ASSY,RR DR,R |
| 2 | 82302-54F01-000 | LATCH ASSY,RR DR,L | LATCH ASSY,RR DR,L |
| 3 | 09137-06024-000 | SCREW(6X18) | SCREW(6X18) |
| 4 | 77591-75000-000 | PAD | PAD |
| 5 | 82630-54F01-000 | STRIKER,RR DOOR LATCH | STRIKER,RR DOOR LATCH |
| 6 | 82681-84000-000 | SPACER,BACK DOOR LATCH STRIKER | SPACER,BACK DOOR LATCH STRIKER |
| 7 | 09137-08006-000 | Screw - Screw (8x18) | Screw - Screw (8x18) |
| 7 | 09137-08011-000 | SCREW(8X18) | SCREW(8X18) |
| 7 | 09137-08004-000 | SCREW(8X18) | SCREW(8X18) |
| 8 | 83105-79A62-000 | Link assy,rear door,r | Link assy,rear door,r |
| 8 | 83105-79A63-000 | LINK ASSY,RR DR,R | LINK ASSY,RR DR,R |
| 9 | 83106-79A62-000 | Link assy,rear door,l | Link assy,rear door,l |
| 9 | 83106-79A63-000 | LINK ASSY,RR DR,L | LINK ASSY,RR DR,L |
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 11 | 03542-06163-000 | Screw | Screw |
| 11 | 03541-0616A-000 | SCREW | SCREW |
| 12 | 09148-06007-000 | NUT | NUT |
| 13 | 83271-63D10-000 | CLIP,DR R/CON ROD | CLIP,DR R/CON ROD |
| 14 | 82830-77A01-ZA4 | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-ZJ3 | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-Z2T | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-Z2U | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-799 | Handle,rr Dr Outer,r(Primary) | Handle,rr Dr Outer,r(Primary) |
| 14 | 82830-77A01-Z7T | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 15 | 82840-77A01-ZA4 | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 15 | 82840-77A01-ZJ3 | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 15 | 82840-77A01-Z2T | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 15 | 82840-77A01-Z2U | HANDLE,REAR OUTER,L | HANDLE,REAR OUTER,L |
| 15 | 82840-77A01-799 | Handle,Rr Door Out,L(Primary) | Handle,Rr Door Out,L(Primary) |
| 15 | 82840-77A01-Z7T | HANDLE,REAR OUTER,L | HANDLE,REAR OUTER,L |
| 16 | 08316-10063-000 | Nut | Nut |
| 16 | 08316-1006B-000 | NUT | NUT |
| 17 | 82982-65D00-P4Z | KNOB,DOOR INSIDE LOCK (GRAY) | KNOB,DOOR INSIDE LOCK (GRAY) |
| 18 | 82991-84000-000 | CAP,DR INSIDE LOCK KNOB | CAP,DR INSIDE LOCK KNOB |
| 19 | 82930-77A00-P4Z | HANDLE,REAR DOOR INR | HANDLE,REAR DOOR INR |
| 20 | 78463-78000-000 | SNAP | SNAP |
| 21 | 86951-78004-000 | CAUTION PLATE,CHILD PROOF | CAUTION PLATE,CHILD PROOF |
| 22 | 83151-77A00-000 | ROD,RR DOOR LOCK CONTROL,R | ROD,RR DOOR LOCK CONTROL,R |
| 23 | 83171-77A00-000 | ROD,RR DOOR LOCK CONTROL,L | ROD,RR DOOR LOCK CONTROL,L |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 28 | 03541-0616A-000 | SCREW | SCREW |
| 28 | 03542-06163-000 | Screw | Screw |
| 15 | 08316-10063-000 | Nut | Nut |
| 15 | 08316-1006B-000 | NUT | NUT |
| 8 | 09137-06024-000 | SCREW(6X18) | SCREW(6X18) |
| 10 | 09137-08004-000 | SCREW(8X18) | SCREW(8X18) |
| 10 | 09137-08006-000 | Screw - Screw (8x18) | Screw - Screw (8x18) |
| 10 | 09137-08011-000 | SCREW(8X18) | SCREW(8X18) |
| 18 | 09148-06007-000 | NUT | NUT |
| 26 | 77591-75000-000 | PAD | PAD |
| 20 | 78463-78000-000 | SNAP | SNAP |
| 1 | 82301-54F01-000 | LATCH ASSY,RR DR,R | LATCH ASSY,RR DR,R |
| 2 | 82302-54F01-000 | LATCH ASSY,RR DR,L | LATCH ASSY,RR DR,L |
| 5 | 82630-54F01-000 | STRIKER,RR DOOR LATCH | STRIKER,RR DOOR LATCH |
| 18 | 82681-84000-000 | SPACER,BACK DOOR LATCH STRIKER | SPACER,BACK DOOR LATCH STRIKER |
| 14 | 82830-77A01-799 | Handle,rr Dr Outer,r(Primary) | Handle,rr Dr Outer,r(Primary) |
| 14 | 82830-77A01-Z2T | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-Z2U | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-Z7T | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-ZA4 | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 14 | 82830-77A01-ZJ3 | HANDLE,RR DR OUTER,R | HANDLE,RR DR OUTER,R |
| 15 | 82840-77A01-799 | Handle,Rr Door Out,L(Primary) | Handle,Rr Door Out,L(Primary) |
| 15 | 82840-77A01-Z2T | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 15 | 82840-77A01-Z2U | HANDLE,REAR OUTER,L | HANDLE,REAR OUTER,L |
| 15 | 82840-77A01-Z7T | HANDLE,REAR OUTER,L | HANDLE,REAR OUTER,L |
| 15 | 82840-77A01-ZA4 | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 15 | 82840-77A01-ZJ3 | HANDLE,RR DR OUTER,L | HANDLE,RR DR OUTER,L |
| 19 | 82930-77A00-P4Z | HANDLE,REAR DOOR INR | HANDLE,REAR DOOR INR |
| 15 | 82982-65D00-P4Z | KNOB,DOOR INSIDE LOCK (GRAY) | KNOB,DOOR INSIDE LOCK (GRAY) |
| 16 | 82991-84000-000 | CAP,DR INSIDE LOCK KNOB | CAP,DR INSIDE LOCK KNOB |
| 8 | 83105-79A62-000 | Link assy,rear door,r | Link assy,rear door,r |
| 8 | 83105-79A63-000 | LINK ASSY,RR DR,R | LINK ASSY,RR DR,R |
| 9 | 83106-79A62-000 | Link assy,rear door,l | Link assy,rear door,l |
| 9 | 83106-79A63-000 | LINK ASSY,RR DR,L | LINK ASSY,RR DR,L |
| 22 | 83151-77A00-000 | ROD,RR DOOR LOCK CONTROL,R | ROD,RR DOOR LOCK CONTROL,R |
| 23 | 83171-77A00-000 | ROD,RR DOOR LOCK CONTROL,L | ROD,RR DOOR LOCK CONTROL,L |
| 11 | 83271-63D10-000 | CLIP,DR R/CON ROD | CLIP,DR R/CON ROD |
| 21 | 86951-78004-000 | CAUTION PLATE,CHILD PROOF | CAUTION PLATE,CHILD PROOF |
