Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 22 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 22 of 3,090 shared

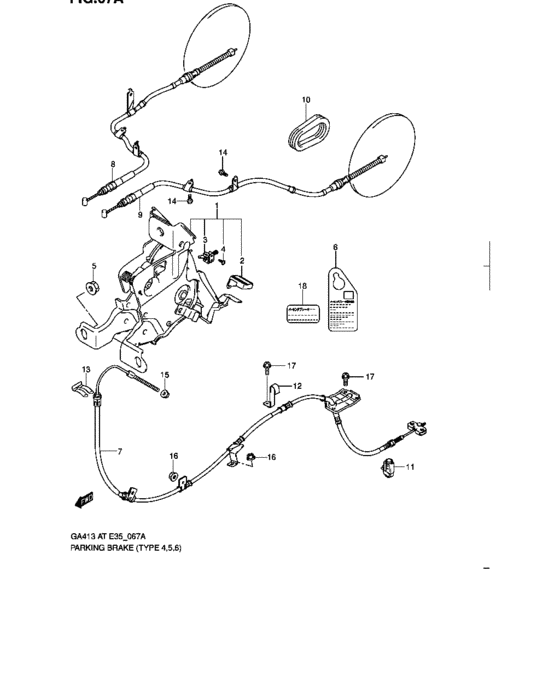

parking brakes (2001-05-01~) 22 / 22
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 54100-66H01-000 | PEDAL ASSY,PARKING BRAKE | PEDAL ASSY,PARKING BRAKE |
| 2 | 54112-66H00-000 | PAD,PARKING PEDAL | PAD,PARKING PEDAL |
| 3 | 37940-76G00-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 4 | 54115-76G00-000 | SCREW | SCREW |
| 5 | 08316-10083-000 | Nut | Nut |
| 5 | 08316-1008B-000 | NUT | NUT |
| 6 | 54851-74F02-000 | TAG,PARKING BRAKE WARNING | TAG,PARKING BRAKE WARNING |
| 7 | 54410-66H01-000 | ケーブル,パーキングブレーキ,NO.1 | ケーブル,パーキングブレーキ,NO.1 |
| 7 | 54410-66H02-000 | CABLE,PARKING BRAKE NO.1 | CABLE,PARKING BRAKE NO.1 |
| 8 | 54430-76A10-000 | CABLE,PARKING BK NO.2,R | CABLE,PARKING BK NO.2,R |
| 9 | 54440-76A10-000 | CABLE,PARKING BK NO.2,L | CABLE,PARKING BK NO.2,L |
| 10 | 54411-77A01-000 | GROMMET,PARKING CABLE | GROMMET,PARKING CABLE |
| 11 | 54415-77A00-000 | CLAMP,PARKING CABLE | CLAMP,PARKING CABLE |
| 12 | 54417-66H00-000 | CLAMP,PARKING CABLE | CLAMP,PARKING CABLE |
| 13 | 09383-08007-000 | CLIP | CLIP |
| 14 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 15 | 09159-06071-000 | NUT | NUT |
| 16 | 09159-06076-000 | NUT | NUT |
| 17 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 17 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 17 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 18 | 79251-74F02-000 | LABEL,PARKING BRAKE WARNING | LABEL,PARKING BRAKE WARNING |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 3 | 08316-10083-000 | Nut | Nut |
| 3 | 08316-1008B-000 | NUT | NUT |
| 9 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 15 | 09159-06071-000 | NUT | NUT |
| 5 | 09159-06076-000 | NUT | NUT |
| 13 | 09383-08007-000 | CLIP | CLIP |
| 3 | 37940-76G00-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 1 | 54100-66H01-000 | PEDAL ASSY,PARKING BRAKE | PEDAL ASSY,PARKING BRAKE |
| 2 | 54112-66H00-000 | PAD,PARKING PEDAL | PAD,PARKING PEDAL |
| 4 | 54115-76G00-000 | SCREW | SCREW |
| 7 | 54410-66H01-000 | ケーブル,パーキングブレーキ,NO.1 | ケーブル,パーキングブレーキ,NO.1 |
| 7 | 54410-66H02-000 | CABLE,PARKING BRAKE NO.1 | CABLE,PARKING BRAKE NO.1 |
| 10 | 54411-77A01-000 | GROMMET,PARKING CABLE | GROMMET,PARKING CABLE |
| 11 | 54415-77A00-000 | CLAMP,PARKING CABLE | CLAMP,PARKING CABLE |
| 12 | 54417-66H00-000 | CLAMP,PARKING CABLE | CLAMP,PARKING CABLE |
| 8 | 54430-76A10-000 | CABLE,PARKING BK NO.2,R | CABLE,PARKING BK NO.2,R |
| 9 | 54440-76A10-000 | CABLE,PARKING BK NO.2,L | CABLE,PARKING BK NO.2,L |
| 6 | 54851-74F02-000 | TAG,PARKING BRAKE WARNING | TAG,PARKING BRAKE WARNING |
| 18 | 79251-74F02-000 | LABEL,PARKING BRAKE WARNING | LABEL,PARKING BRAKE WARNING |
