Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 29 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 29 of 3,090 shared

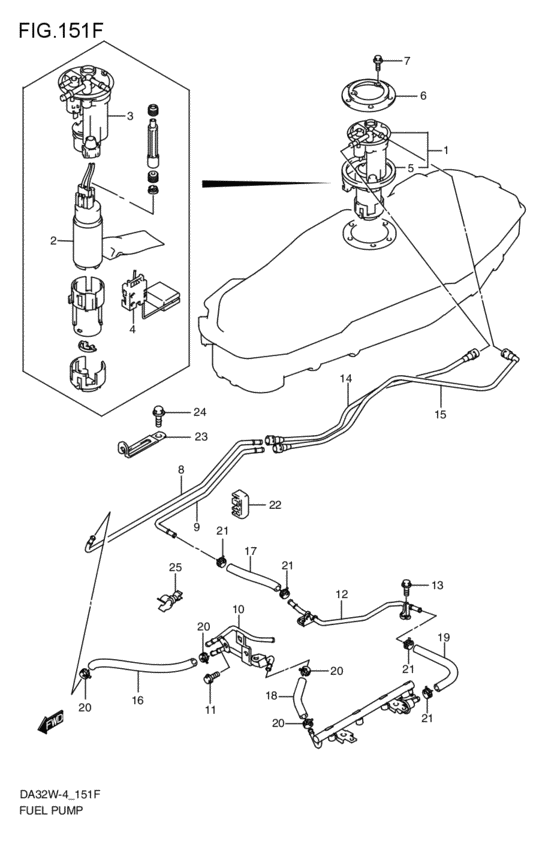

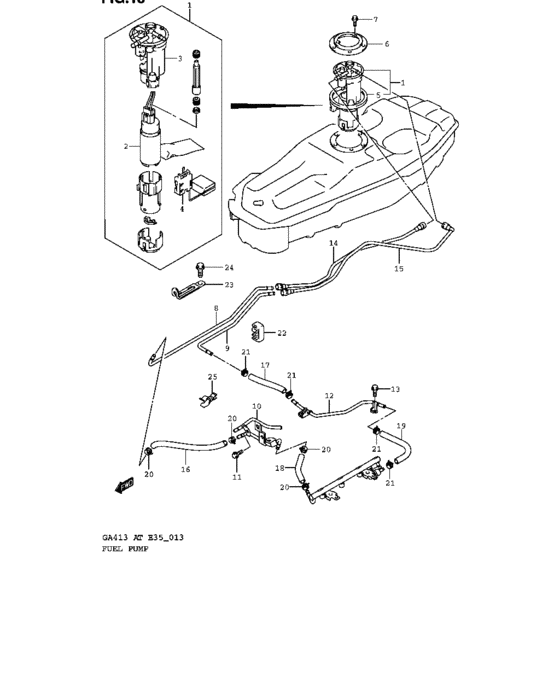

Fuel Pump (2001-05-01~) 29 / 29
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 15100-76842-000 | PUMP SET,FUEL | PUMP SET,FUEL |
| 2 | 15110-76G50-000 | PUMP ASSY,FUEL | PUMP ASSY,FUEL |
| 3 | 15310-76A31-000 | FILTER ASSY,FUEL | FILTER ASSY,FUEL |
| 4 | 34810-76A30-000 | GAUGE ASSY,FUEL LEVEL | GAUGE ASSY,FUEL LEVEL |
| 5 | 15111-75F01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 6 | 15121-75F01-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 7 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 7 | 02162-0610A-000 | SCREW | SCREW |
| 8 | 15811-60H00-000 | PIPE,FUEL BODY SIDE | PIPE,FUEL BODY SIDE |
| 9 | 15861-77A00-000 | PIPE,FUEL RTN BODY SIDE | PIPE,FUEL RTN BODY SIDE |
| 10 | 15830-76A30-000 | Pipe, fuel (eng side) | Pipe, fuel (eng side) |
| 10 | 15830-76A3V-000 | Pipe comp,fuel eng side | Pipe comp,fuel eng side |
| 11 | 01550-06123-000 | Bolt | Bolt |
| 11 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 11 | 01550-0612A-000 | Bolt | Bolt |
| 12 | 15850-76A30-000 | PIPE,FUEL RTN ENG SIDE | PIPE,FUEL RTN ENG SIDE |
| 14 | 15812-67H00-000 | パイプ,フューエル(ポンプツーパイプ) | パイプ,フューエル(ポンプツーパイプ) |
| 14 | 15812-67H20-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 15 | 15862-78A02-000 | PIPE,FUEL RTN PIPE TO PUMP | PIPE,FUEL RTN PIPE TO PUMP |
| 16 | 09356-75147-600 | HOSE(7.5X14.3X600) - Hose, fuel (body side) | HOSE(7.5X14.3X600) - Hose, fuel (body side) |
| 17 | 09356-55117-600 | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) |
| 20 | 09401-13419-000 | CLIP | CLIP |
| 21 | 09401-10409-000 | CLIP | CLIP |
| 22 | 15893-60A11-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 23 | 09404-10417-000 | CLAMP(L:97) | CLAMP(L:97) |
| 24 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 24 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 24 | 01550-0812A-000 | Bolt | Bolt |
| 25 | 09408-00152-000 | CLAMP | CLAMP |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 11 | 01550-06123-000 | Bolt | Bolt |
| 11 | 01550-0612A-000 | Bolt | Bolt |
| 11 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 24 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 24 | 01550-0812A-000 | Bolt | Bolt |
| 24 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 7 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 7 | 02162-0610A-000 | SCREW | SCREW |
| 17 | 09356-55117-600 | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) | HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) |
| 16 | 09356-75147-600 | HOSE(7.5X14.3X600) - Hose, fuel (body side) | HOSE(7.5X14.3X600) - Hose, fuel (body side) |
| 21 | 09401-10409-000 | CLIP | CLIP |
| 20 | 09401-13419-000 | CLIP | CLIP |
| 23 | 09404-10417-000 | CLAMP(L:97) | CLAMP(L:97) |
| 25 | 09408-00152-000 | CLAMP | CLAMP |
| 1 | 15100-76842-000 | PUMP SET,FUEL | PUMP SET,FUEL |
| 2 | 15110-76G50-000 | PUMP ASSY,FUEL | PUMP ASSY,FUEL |
| 5 | 15111-75F01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 6 | 15121-75F01-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 3 | 15310-76A31-000 | FILTER ASSY,FUEL | FILTER ASSY,FUEL |
| 8 | 15811-60H00-000 | PIPE,FUEL BODY SIDE | PIPE,FUEL BODY SIDE |
| 14 | 15812-67H00-000 | パイプ,フューエル(ポンプツーパイプ) | パイプ,フューエル(ポンプツーパイプ) |
| 14 | 15812-67H20-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 10 | 15830-76A30-000 | Pipe, fuel (eng side) | Pipe, fuel (eng side) |
| 10 | 15830-76A3V-000 | Pipe comp,fuel eng side | Pipe comp,fuel eng side |
| 12 | 15850-76A30-000 | PIPE,FUEL RTN ENG SIDE | PIPE,FUEL RTN ENG SIDE |
| 9 | 15861-77A00-000 | PIPE,FUEL RTN BODY SIDE | PIPE,FUEL RTN BODY SIDE |
| 15 | 15862-78A02-000 | PIPE,FUEL RTN PIPE TO PUMP | PIPE,FUEL RTN PIPE TO PUMP |
| 22 | 15893-60A11-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 4 | 34810-76A30-000 | GAUGE ASSY,FUEL LEVEL | GAUGE ASSY,FUEL LEVEL |
