Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 23 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 23 of 3,090 shared

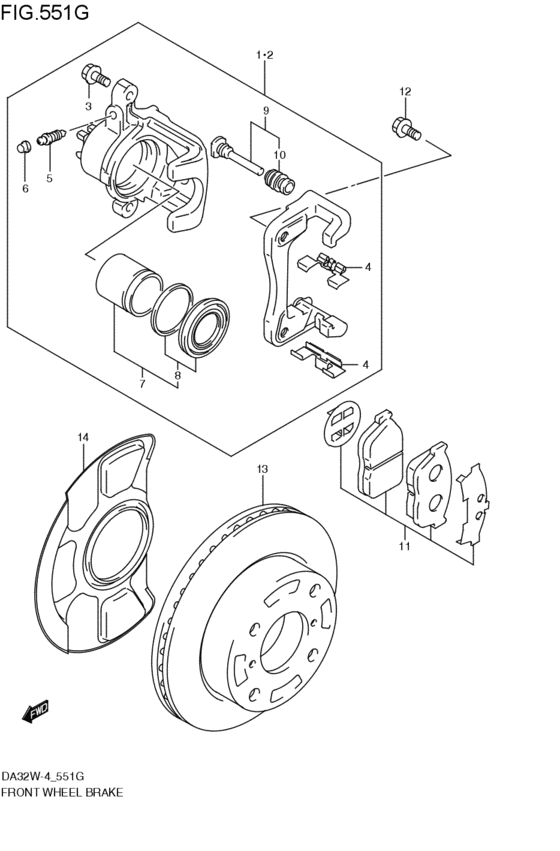

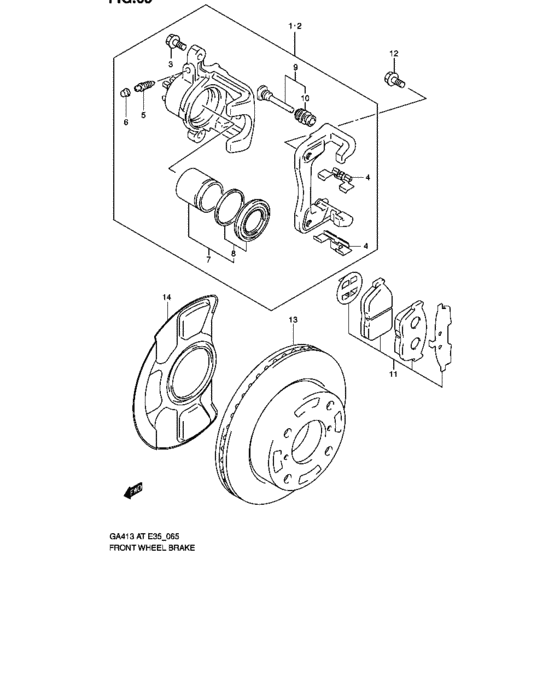

front wheel brakes (2001-05-01~) 23 / 24
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 55101-76A02-999 | キャリパ,フロントブレーキ,ライト | キャリパ,フロントブレーキ,ライト |
| 1 | 55101-76A03-999 | CALIPER,FR BRAKE,RH | CALIPER,FR BRAKE,RH |
| 2 | 55102-76A02-999 | CALIPERFR BRAKEL | CALIPERFR BRAKEL |
| 2 | 55102-76A03-999 | CALIPER,FR BRAKE,LH | CALIPER,FR BRAKE,LH |
| 3 | 55206-78451-000 | Bolt, pin | Bolt, pin |
| 3 | 55206-78452-000 | BOLT,PIN | BOLT,PIN |
| 4 | 55234-76G10-000 | SPRING,PAD | SPRING,PAD |
| 5 | 55473-82030-000 | Plug, bleeder - Plug, bleeder (m10x1.0) | Plug, bleeder - Plug, bleeder (m10x1.0) |
| 5 | 55151-78451-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 6 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
| 7 | 55840-76G00-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 7 | 55840-76G01-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 8 | 55830-76G00-000 | SEAL SET,PISTON | SEAL SET,PISTON |
| 8 | 55830-76G01-000 | SEAL SET,PISTON | SEAL SET,PISTON |
| 9 | 55850-76G00-000 | PIN / BOOT SET | PIN / BOOT SET |
| 9 | 55850-76G01-000 | PIN / BOOT SET | PIN / BOOT SET |
| 10 | 55201-60A00-000 | BOOT,PIN | BOOT,PIN |
| 11 | 55810-76A11-000 | PAD SET,DISC BRAKE | PAD SET,DISC BRAKE |
| 12 | 09117-12006-000 | BOLT(12X27) | BOLT(12X27) |
| 13 | 55311-76A00-000 | Disc, fr brake | Disc, fr brake |
| 13 | 55311-76A01-000 | DISC,FR BRAKE | DISC,FR BRAKE |
| 14 | 55221-78A00-000 | Cover, brake disc dust | Cover, brake disc dust |
| 14 | 55221-78A01-000 | COVER,BRAKE DISC DUST | COVER,BRAKE DISC DUST |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 12 | 09117-12006-000 | BOLT(12X27) | BOLT(12X27) |
| 1 | 55101-76A02-999 | キャリパ,フロントブレーキ,ライト | キャリパ,フロントブレーキ,ライト |
| 1 | 55101-76A03-999 | CALIPER,FR BRAKE,RH | CALIPER,FR BRAKE,RH |
| 2 | 55102-76A02-999 | CALIPERFR BRAKEL | CALIPERFR BRAKEL |
| 2 | 55102-76A03-999 | CALIPER,FR BRAKE,LH | CALIPER,FR BRAKE,LH |
| 5 | 55151-78451-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 6 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
| 10 | 55201-60A00-000 | BOOT,PIN | BOOT,PIN |
| 3 | 55206-78451-000 | Bolt, pin | Bolt, pin |
| 3 | 55206-78452-000 | BOLT,PIN | BOLT,PIN |
| 14 | 55221-78A00-000 | Cover, brake disc dust | Cover, brake disc dust |
| 14 | 55221-78A01-000 | COVER,BRAKE DISC DUST | COVER,BRAKE DISC DUST |
| 4 | 55234-76G10-000 | SPRING,PAD | SPRING,PAD |
| 13 | 55311-76A00-000 | Disc, fr brake | Disc, fr brake |
| 13 | 55311-76A01-000 | DISC,FR BRAKE | DISC,FR BRAKE |
| 5 | 55473-82030-000 | Plug, bleeder - Plug, bleeder (m10x1.0) | Plug, bleeder - Plug, bleeder (m10x1.0) |
| 11 | 55810-76A11-000 | PAD SET,DISC BRAKE | PAD SET,DISC BRAKE |
| 8 | 55830-76G00-000 | SEAL SET,PISTON | SEAL SET,PISTON |
| 8 | 55830-76G01-000 | SEAL SET,PISTON | SEAL SET,PISTON |
| 7 | 55840-76G00-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 7 | 55840-76G01-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 9 | 55850-76G00-000 | PIN / BOOT SET | PIN / BOOT SET |
| 9 | 55850-76G01-000 | PIN / BOOT SET | PIN / BOOT SET |
