Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 21 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 21 of 3,090 shared

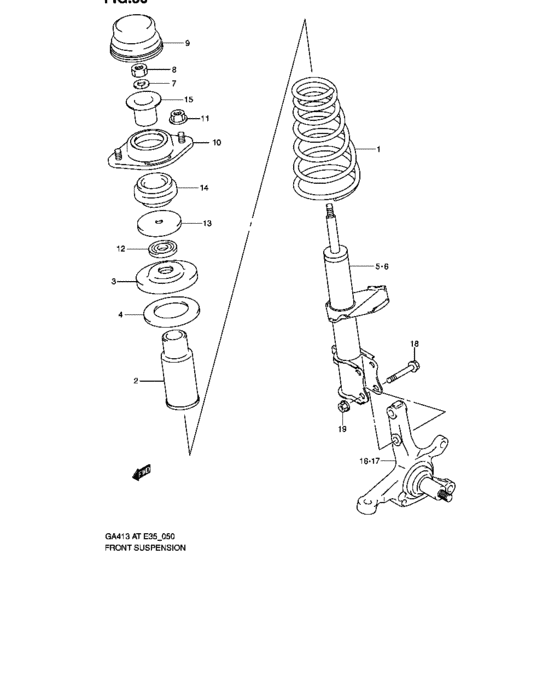

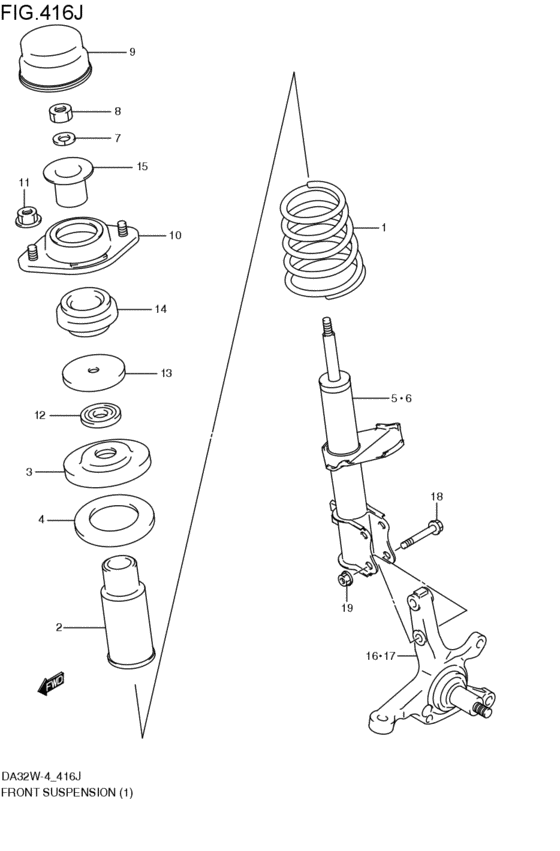

front suspension (2WD; 2001-05-01~) 21 / 23
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 41111-65H30-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 2 | 42111-78A01-000 | STOPPER,FR BUMP | STOPPER,FR BUMP |
| 3 | 41231-65H00-000 | SEAT,FRONT COIL SPRING | SEAT,FRONT COIL SPRING |
| 4 | 41251-77A00-000 | SEAT,FR SPRING RUBBER UPPER | SEAT,FR SPRING RUBBER UPPER |
| 5 | 41601-64H11-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 6 | 41602-64H11-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 7 | 09162-12006-000 | WASHER,LOCK | WASHER,LOCK |
| 8 | 09140-12045-000 | NUT | NUT |
| 9 | 41724-77A00-000 | CAP,STRUT SUPPORT | CAP,STRUT SUPPORT |
| 10 | 41710-77A00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 12 | 41741-50E00-000 | BEARING,FR STRUT - Bearing, front strut | BEARING,FR STRUT - Bearing, front strut |
| 13 | 41741-77A01-000 | SEAT,FR STRUT BEARING | SEAT,FR STRUT BEARING |
| 14 | 41721-77A00-000 | RUBBER,FRONT STRUT SUPPORT | RUBBER,FRONT STRUT SUPPORT |
| 15 | 41723-77A00-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 16 | 45110-77820-000 | Knuckle,steering,r | Knuckle,steering,r |
| 16 | 45110-77824-000 | KNUCKLE SET,STRG,R | KNUCKLE SET,STRG,R |
| 17 | 45150-77820-000 | Knuckle,steering,l | Knuckle,steering,l |
| 17 | 45150-77824-000 | KNUCKLE SET,STRG,L | KNUCKLE SET,STRG,L |
| 18 | 09103-12051-000 | BOLT(12X50) | BOLT(12X50) |
| 19 | 08316-10123-000 | Nut | Nut |
| 19 | 08316-1012A-000 | NUT | NUT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 19 | 08316-10123-000 | Nut | Nut |
| 19 | 08316-1012A-000 | NUT | NUT |
| 18 | 09103-12051-000 | BOLT(12X50) | BOLT(12X50) |
| 8 | 09140-12045-000 | NUT | NUT |
| 7 | 09162-12006-000 | WASHER,LOCK | WASHER,LOCK |
| 1 | 41111-65H30-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 3 | 41231-65H00-000 | SEAT,FRONT COIL SPRING | SEAT,FRONT COIL SPRING |
| 4 | 41251-77A00-000 | SEAT,FR SPRING RUBBER UPPER | SEAT,FR SPRING RUBBER UPPER |
| 5 | 41601-64H11-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 6 | 41602-64H11-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 10 | 41710-77A00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 14 | 41721-77A00-000 | RUBBER,FRONT STRUT SUPPORT | RUBBER,FRONT STRUT SUPPORT |
| 15 | 41723-77A00-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 9 | 41724-77A00-000 | CAP,STRUT SUPPORT | CAP,STRUT SUPPORT |
| 12 | 41741-50E00-000 | BEARING,FR STRUT - Bearing, front strut | BEARING,FR STRUT - Bearing, front strut |
| 13 | 41741-77A01-000 | SEAT,FR STRUT BEARING | SEAT,FR STRUT BEARING |
| 2 | 42111-78A01-000 | STOPPER,FR BUMP | STOPPER,FR BUMP |
| 16 | 45110-77820-000 | Knuckle,steering,r | Knuckle,steering,r |
| 16 | 45110-77824-000 | KNUCKLE SET,STRG,R | KNUCKLE SET,STRG,R |
| 17 | 45150-77820-000 | Knuckle,steering,l | Knuckle,steering,l |
| 17 | 45150-77824-000 | KNUCKLE SET,STRG,L | KNUCKLE SET,STRG,L |
