Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 73 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 73 of 3,090 shared

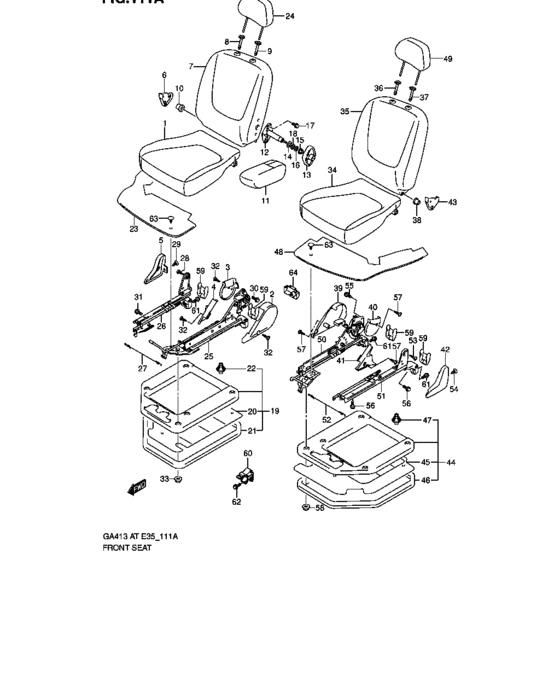

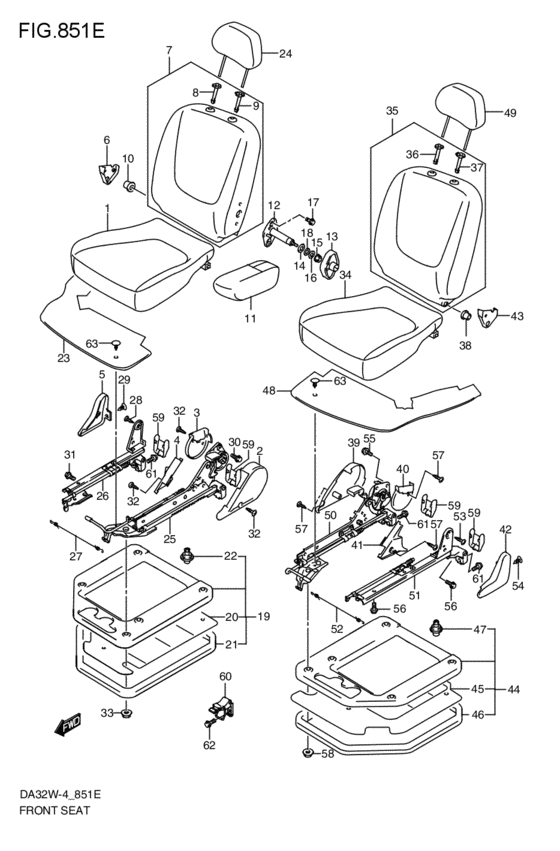

front seat (ライト / レフト; 2001-05-01~) 73 / 76
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 85101-66H00-AJJ | CUSHION ASSY,FR,R | CUSHION ASSY,FR,R |
| 1 | 85101-66H00-FY7 | CUSHION ASSY,FR,R | CUSHION ASSY,FR,R |
| 2 | 85241-79A00-P4Z | COVER,FR,RECL INSIDE,R | COVER,FR,RECL INSIDE,R |
| 3 | 85242-79A00-P4Z | COVER,FR RECL INS UPR,R | COVER,FR RECL INS UPR,R |
| 4 | 85243-79A00-P4Z | COVER,FR RECL INS LWR,R | COVER,FR RECL INS LWR,R |
| 5 | 85281-79A00-P4Z | COVER,FR ADJUSTER OUTSIDE,R | COVER,FR ADJUSTER OUTSIDE,R |
| 6 | 85282-79A00-P4Z | COVER,FR BACK HINGE,R | COVER,FR BACK HINGE,R |
| 7 | 85301-66H00-FY7 | Back assy,fr,r | Back assy,fr,r |
| 8 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 9 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 10 | 85293-61H00-000 | BUSH,FR BACK FIX | BUSH,FR BACK FIX |
| 11 | 85501-66H00-AJB | ARMREST ASSY,FR,R | ARMREST ASSY,FR,R |
| 11 | 85501-66H00-P9E | ARMREST ASSY,FR,R | ARMREST ASSY,FR,R |
| 12 | 85540-66H00-000 | HINGE,FR ARMREST | HINGE,FR ARMREST |
| 13 | 85571-66H00-P4Z | COVER,ARMREST HINGE | COVER,ARMREST HINGE |
| 14 | 85293-52F00-000 | WASHER,FR SEAT BACK HINGE | WASHER,FR SEAT BACK HINGE |
| 15 | 09159-08068-000 | MUTTER | MUTTER |
| 15 | 09159-08075-000 | NUT | NUT |
| 16 | 09162-10008-000 | WASHER,LOCK - Lock washer, rod end | WASHER,LOCK - Lock washer, rod end |
| 17 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 17 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 17 | 01550-0812A-000 | Bolt | Bolt |
| 18 | 08322-01103-000 | Washer | Washer |
| 18 | 08322-0110B-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 18 | 08322-0110A-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 19 | 85410-79A21-000 | PANEL ASSY,FR RISER,R | PANEL ASSY,FR RISER,R |
| 20 | 85427-79A00-000 | INSULATOR,FR RISER,R | INSULATOR,FR RISER,R |
| 21 | 85428-79A00-000 | WEATHERSTRIP,FR RISER | WEATHERSTRIP,FR RISER |
| 22 | 09410-00067-000 | MALE | MALE |
| 23 | 85430-63H01-T21 | CARPET,FR RISER,R | CARPET,FR RISER,R |
| 24 | 86401-76G00-AHY | ヘッドレストレイントアッシ | ヘッドレストレイントアッシ |
| 24 | 86401-76G01-AHY | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G02-AHY | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G00-FY8 | ヘッドレストレイントアッシ | ヘッドレストレイントアッシ |
| 24 | 86401-76G01-FY8 | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G02-FY8 | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 25 | 86601-61HA1-P4Z | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 25 | 86601-66H01-P4Z | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 26 | 86603-61HA0-000 | ADJUSTER ASSY,FR OUTSIDE,R | ADJUSTER ASSY,FR OUTSIDE,R |
| 27 | 86850-77A00-000 | WIRE,FR ADJUSTER - Wire, fr adjuster | WIRE,FR ADJUSTER - Wire, fr adjuster |
| 28 | 09116-06109-000 | BOLT(6X12) | BOLT(6X12) |
| 29 | 09409-10304-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 30 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 30 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 31 | 01570-08203-000 | Bolt | Bolt |
| 31 | 01570-0820B-000 | Bolt | Bolt |
| 31 | 01570-0820A-000 | Bolt | Bolt |
| 32 | 03241-05083-000 | Screw | Screw |
| 32 | 03241-0508A-000 | SCREW | SCREW |
| 34 | 85102-66H00-FY7 | CUSHION ASSY,FR,L | CUSHION ASSY,FR,L |
| 34 | 85102-66H10-AJJ | CUSHION ASSY,FR,L | CUSHION ASSY,FR,L |
| 35 | 85302-66H20-AJJ | Back assy,fr,l | Back assy,fr,l |
| 35 | 85302-66H20-FY7 | BACK ASSY,FR,L | BACK ASSY,FR,L |
| 39 | 85741-79A00-P4Z | COVER,FR,RECL INSIDE,L | COVER,FR,RECL INSIDE,L |
| 40 | 85742-79A00-P4Z | COVER,FR RECL INS UPR,L | COVER,FR RECL INS UPR,L |
| 41 | 85743-79A00-P4Z | COVER,FR RECL INS LWR,L | COVER,FR RECL INS LWR,L |
| 42 | 85781-79A00-P4Z | COVER,FR ADJUSTER OUTSIDE,L | COVER,FR ADJUSTER OUTSIDE,L |
| 43 | 85782-79A00-P4Z | COVER,FR BACK HINGE,L | COVER,FR BACK HINGE,L |
| 44 | 85910-79A31-000 | PANEL ASSY,FR RISER,L | PANEL ASSY,FR RISER,L |
| 45 | 85927-79A10-000 | INSULATOR,FR RISOR,L | INSULATOR,FR RISOR,L |
| 46 | 85428-79A10-000 | WEATHERSTRIP,FR RISER - Weatherstrip, fr riser | WEATHERSTRIP,FR RISER - Weatherstrip, fr riser |
| 48 | 85930-63H11-S9J | CARPET,FR RISER,L | CARPET,FR RISER,L |
| 50 | 86801-77A01-P4Z | ADJUSTER ASSY,FR INSIDE,L | ADJUSTER ASSY,FR INSIDE,L |
| 51 | 86803-79A00-000 | ADJUSTER ASSY,FR OUTSIDE,L | ADJUSTER ASSY,FR OUTSIDE,L |
| 59 | 85495-79A00-P4Z | COVER,RR | COVER,RR |
| 60 | 86650-77A01-000 | ロックアッシ,フロント | ロックアッシ,フロント |
| 60 | 86650-77A02-000 | LOCK ASSY,FR | LOCK ASSY,FR |
| 61 | 01551-10203-000 | Bolt, 3rd striker | Bolt, 3rd striker |
| 61 | 01551-1020A-000 | Bolt | Bolt |
| 62 | 01570-06123-000 | Bolt | Bolt |
| 62 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 62 | 01570-0612A-000 | Bolt | Bolt |
| 63 | 09409-06326-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 24 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 24 | 01550-0812A-000 | Bolt | Bolt |
| 24 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 12 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 12 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 61 | 01551-10203-000 | Bolt, 3rd striker | Bolt, 3rd striker |
| 61 | 01551-1020A-000 | Bolt | Bolt |
| 62 | 01570-06123-000 | Bolt | Bolt |
| 62 | 01570-0612A-000 | Bolt | Bolt |
| 62 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 31 | 01570-08203-000 | Bolt | Bolt |
| 31 | 01570-0820A-000 | Bolt | Bolt |
| 31 | 01570-0820B-000 | Bolt | Bolt |
| 32 | 03241-05083-000 | Screw | Screw |
| 32 | 03241-0508A-000 | SCREW | SCREW |
| 18 | 08322-01103-000 | Washer | Washer |
| 18 | 08322-0110A-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 18 | 08322-0110B-000 | WASHER - Washer, knuckle end | WASHER - Washer, knuckle end |
| 28 | 09116-06109-000 | BOLT(6X12) | BOLT(6X12) |
| 15 | 09159-08068-000 | MUTTER | MUTTER |
| 6 | 09159-08075-000 | NUT | NUT |
| 16 | 09162-10008-000 | WASHER,LOCK - Lock washer, rod end | WASHER,LOCK - Lock washer, rod end |
| 63 | 09409-06326-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 29 | 09409-10304-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 22 | 09410-00067-000 | MALE | MALE |
| 1 | 85101-66H00-AJJ | CUSHION ASSY,FR,R | CUSHION ASSY,FR,R |
| 1 | 85101-66H00-FY7 | CUSHION ASSY,FR,R | CUSHION ASSY,FR,R |
| 34 | 85102-66H00-FY7 | CUSHION ASSY,FR,L | CUSHION ASSY,FR,L |
| 34 | 85102-66H10-AJJ | CUSHION ASSY,FR,L | CUSHION ASSY,FR,L |
| 2 | 85241-79A00-P4Z | COVER,FR,RECL INSIDE,R | COVER,FR,RECL INSIDE,R |
| 3 | 85242-79A00-P4Z | COVER,FR RECL INS UPR,R | COVER,FR RECL INS UPR,R |
| 4 | 85243-79A00-P4Z | COVER,FR RECL INS LWR,R | COVER,FR RECL INS LWR,R |
| 5 | 85281-79A00-P4Z | COVER,FR ADJUSTER OUTSIDE,R | COVER,FR ADJUSTER OUTSIDE,R |
| 6 | 85282-79A00-P4Z | COVER,FR BACK HINGE,R | COVER,FR BACK HINGE,R |
| 14 | 85293-52F00-000 | WASHER,FR SEAT BACK HINGE | WASHER,FR SEAT BACK HINGE |
| 10 | 85293-61H00-000 | BUSH,FR BACK FIX | BUSH,FR BACK FIX |
| 7 | 85301-66H00-FY7 | Back assy,fr,r | Back assy,fr,r |
| 35 | 85302-66H20-AJJ | Back assy,fr,l | Back assy,fr,l |
| 35 | 85302-66H20-FY7 | BACK ASSY,FR,L | BACK ASSY,FR,L |
| 8 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 19 | 85410-79A21-000 | PANEL ASSY,FR RISER,R | PANEL ASSY,FR RISER,R |
| 20 | 85427-79A00-000 | INSULATOR,FR RISER,R | INSULATOR,FR RISER,R |
| 21 | 85428-79A00-000 | WEATHERSTRIP,FR RISER | WEATHERSTRIP,FR RISER |
| 46 | 85428-79A10-000 | WEATHERSTRIP,FR RISER - Weatherstrip, fr riser | WEATHERSTRIP,FR RISER - Weatherstrip, fr riser |
| 23 | 85430-63H01-T21 | CARPET,FR RISER,R | CARPET,FR RISER,R |
| 59 | 85495-79A00-P4Z | COVER,RR | COVER,RR |
| 11 | 85501-66H00-AJB | ARMREST ASSY,FR,R | ARMREST ASSY,FR,R |
| 11 | 85501-66H00-P9E | ARMREST ASSY,FR,R | ARMREST ASSY,FR,R |
| 12 | 85540-66H00-000 | HINGE,FR ARMREST | HINGE,FR ARMREST |
| 13 | 85571-66H00-P4Z | COVER,ARMREST HINGE | COVER,ARMREST HINGE |
| 39 | 85741-79A00-P4Z | COVER,FR,RECL INSIDE,L | COVER,FR,RECL INSIDE,L |
| 40 | 85742-79A00-P4Z | COVER,FR RECL INS UPR,L | COVER,FR RECL INS UPR,L |
| 41 | 85743-79A00-P4Z | COVER,FR RECL INS LWR,L | COVER,FR RECL INS LWR,L |
| 42 | 85781-79A00-P4Z | COVER,FR ADJUSTER OUTSIDE,L | COVER,FR ADJUSTER OUTSIDE,L |
| 43 | 85782-79A00-P4Z | COVER,FR BACK HINGE,L | COVER,FR BACK HINGE,L |
| 9 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 44 | 85910-79A31-000 | PANEL ASSY,FR RISER,L | PANEL ASSY,FR RISER,L |
| 45 | 85927-79A10-000 | INSULATOR,FR RISOR,L | INSULATOR,FR RISOR,L |
| 48 | 85930-63H11-S9J | CARPET,FR RISER,L | CARPET,FR RISER,L |
| 24 | 86401-76G00-AHY | ヘッドレストレイントアッシ | ヘッドレストレイントアッシ |
| 24 | 86401-76G00-FY8 | ヘッドレストレイントアッシ | ヘッドレストレイントアッシ |
| 24 | 86401-76G01-AHY | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G01-FY8 | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G02-AHY | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 24 | 86401-76G02-FY8 | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 25 | 86601-61HA1-P4Z | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 25 | 86601-66H01-P4Z | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 26 | 86603-61HA0-000 | ADJUSTER ASSY,FR OUTSIDE,R | ADJUSTER ASSY,FR OUTSIDE,R |
| 60 | 86650-77A01-000 | ロックアッシ,フロント | ロックアッシ,フロント |
| 60 | 86650-77A02-000 | LOCK ASSY,FR | LOCK ASSY,FR |
| 50 | 86801-77A01-P4Z | ADJUSTER ASSY,FR INSIDE,L | ADJUSTER ASSY,FR INSIDE,L |
| 51 | 86803-79A00-000 | ADJUSTER ASSY,FR OUTSIDE,L | ADJUSTER ASSY,FR OUTSIDE,L |
| 27 | 86850-77A00-000 | WIRE,FR ADJUSTER - Wire, fr adjuster | WIRE,FR ADJUSTER - Wire, fr adjuster |
