Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 19 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 19 of 3,090 shared

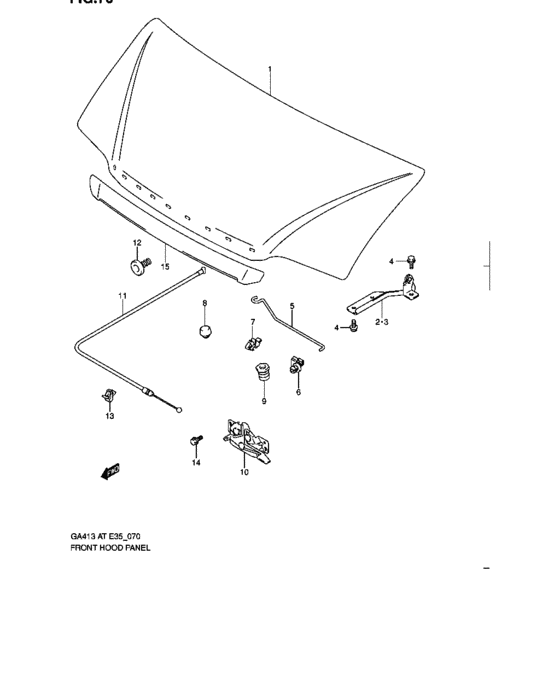

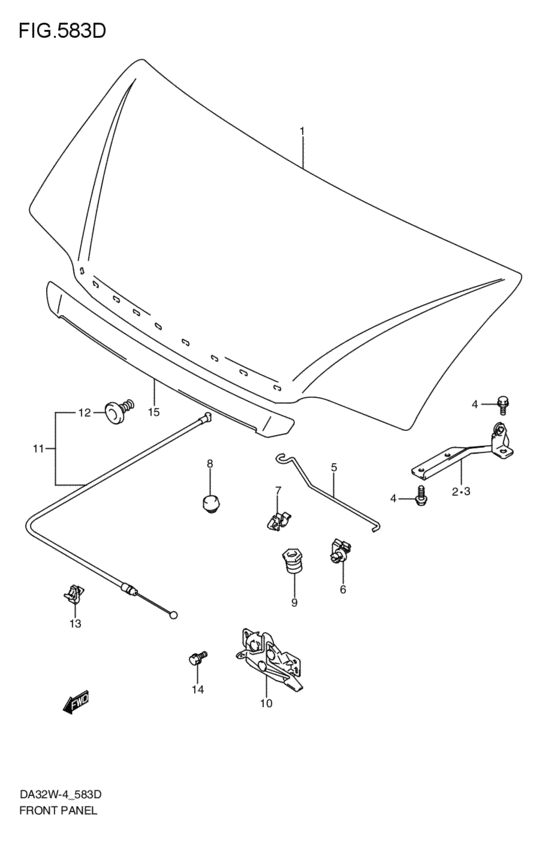

front panel (2001-05-01~) 19 / 19
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 58100-64HP0-000 | PANEL ASSY,FRONT HOOD | PANEL ASSY,FRONT HOOD |
| 2 | 58210-79A00-000 | HINGE,FR HOOD,R | HINGE,FR HOOD,R |
| 3 | 58230-79A00-000 | HINGE,FR HOOD,L | HINGE,FR HOOD,L |
| 4 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 4 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 5 | 72321-76AA0-000 | Stay, front hood | Stay, front hood |
| 5 | 72321-76AA1-000 | STAY,FRONT HOOD | STAY,FRONT HOOD |
| 6 | 09209-09007-000 | LINKAGE - Connector | LINKAGE - Connector |
| 7 | 09403-07311-000 | CLAMP | CLAMP |
| 8 | 09321-10023-000 | CUSHION | CUSHION |
| 9 | 72372-82000-000 | CUSHION,BACK DR SIDE | CUSHION,BACK DR SIDE |
| 10 | 82110-76AA0-000 | LATCH,HOOD | LATCH,HOOD |
| 11 | 82160-76AA0-000 | CABLE,HOOD LATCH RELEASE | CABLE,HOOD LATCH RELEASE |
| 12 | 82191-50E00-000 | GROMMET,LATCH RELEASE CABLE | GROMMET,LATCH RELEASE CABLE |
| 13 | 09403-04401-000 | CLAMP | CLAMP |
| 14 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 14 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 15 | 72411-64HP0-0PG | GARNISH,FR HOOD | GARNISH,FR HOOD |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 14 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 14 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 6 | 09209-09007-000 | LINKAGE - Connector | LINKAGE - Connector |
| 8 | 09321-10023-000 | CUSHION | CUSHION |
| 13 | 09403-04401-000 | CLAMP | CLAMP |
| 7 | 09403-07311-000 | CLAMP | CLAMP |
| 1 | 58100-64HP0-000 | PANEL ASSY,FRONT HOOD | PANEL ASSY,FRONT HOOD |
| 2 | 58210-79A00-000 | HINGE,FR HOOD,R | HINGE,FR HOOD,R |
| 3 | 58230-79A00-000 | HINGE,FR HOOD,L | HINGE,FR HOOD,L |
| 5 | 72321-76AA0-000 | Stay, front hood | Stay, front hood |
| 5 | 72321-76AA1-000 | STAY,FRONT HOOD | STAY,FRONT HOOD |
| 9 | 72372-82000-000 | CUSHION,BACK DR SIDE | CUSHION,BACK DR SIDE |
| 15 | 72411-64HP0-0PG | GARNISH,FR HOOD | GARNISH,FR HOOD |
| 10 | 82110-76AA0-000 | LATCH,HOOD | LATCH,HOOD |
| 11 | 82160-76AA0-000 | CABLE,HOOD LATCH RELEASE | CABLE,HOOD LATCH RELEASE |
| 12 | 82191-50E00-000 | GROMMET,LATCH RELEASE CABLE | GROMMET,LATCH RELEASE CABLE |
