Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 23 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 23 of 3,090 shared

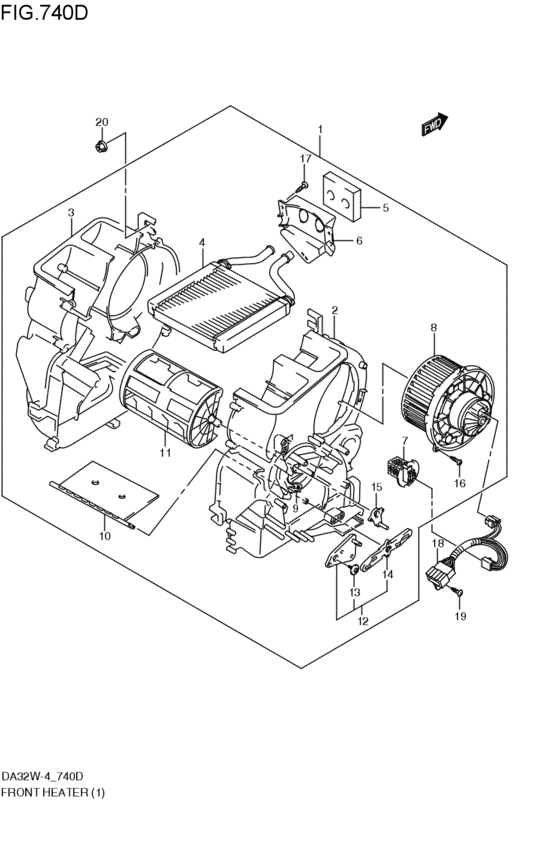

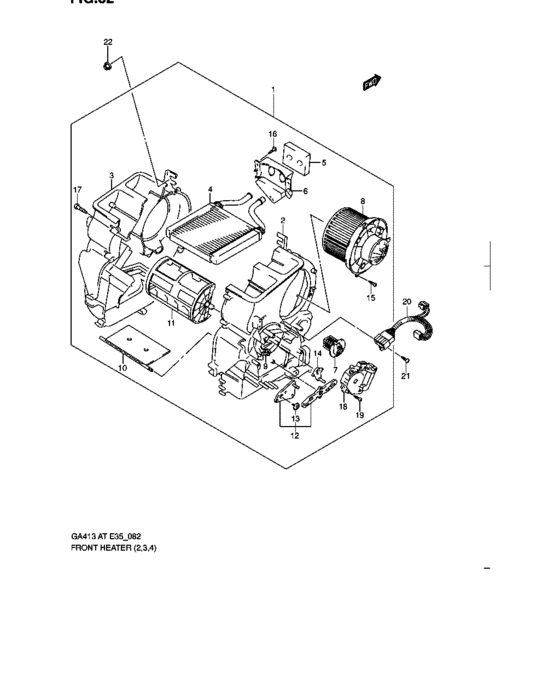

front heater (200105 カラ 200210 マデ; 2001-05-01~2002-10-01) 23 / 24
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 74100-65H02-000 | HEATER UNIT | HEATER UNIT |
| 2 | 74111-65H00-000 | ケース,ヒータ,ライト | ケース,ヒータ,ライト |
| 2 | 74111-65H01-000 | CASE,HTR,R | CASE,HTR,R |
| 2 | 74112-78A01-000 | CASE,HTR,L | CASE,HTR,L |
| 3 | 74112-78A00-000 | Case, heater lh | Case, heater lh |
| 4 | 74120-78A00-000 | CORE,HEATER | CORE,HEATER |
| 5 | 74116-77A00-000 | PACKING | PACKING |
| 6 | 74117-77A00-000 | CLAMP,PIPE - Bracket, pipe | CLAMP,PIPE - Bracket, pipe |
| 7 | 74140-84G00-000 | RESISTOR,BLOWER | RESISTOR,BLOWER |
| 8 | 74150-76G00-000 | Motor assy, blower | Motor assy, blower |
| 8 | 74150-75H01-000 | MOTOR ASSY | MOTOR ASSY |
| 9 | 74151-50F00-000 | CABLE | CABLE |
| 10 | 74171-77A00-000 | DOOR ASSY,TEMP | DOOR ASSY,TEMP |
| 11 | 74172-77A00-000 | DOOR ASSY,MODE | DOOR ASSY,MODE |
| 12 | 74180-77A00-000 | LEVER,TEMP | LEVER,TEMP |
| 13 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 14 | 74185-77A00-000 | LEVER,TEMP | LEVER,TEMP |
| 15 | 74187-77A00-000 | LEVER,MODE | LEVER,MODE |
| 16 | 74135-82000-000 | SCREW,MOTOR | SCREW,MOTOR |
| 17 | 03541-05123-000 | Screw | Screw |
| 17 | 03541-0512B-000 | SCREW | SCREW |
| 18 | 74156-65H00-000 | HARNESS | HARNESS |
| 20 | 09159-06081-000 | NUT | NUT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 28 | 03541-05123-000 | Screw | Screw |
| 28 | 03541-0512B-000 | SCREW | SCREW |
| 20 | 09159-06081-000 | NUT | NUT |
| 1 | 74100-65H02-000 | HEATER UNIT | HEATER UNIT |
| 2 | 74111-65H00-000 | ケース,ヒータ,ライト | ケース,ヒータ,ライト |
| 2 | 74111-65H01-000 | CASE,HTR,R | CASE,HTR,R |
| 3 | 74112-78A00-000 | Case, heater lh | Case, heater lh |
| 2 | 74112-78A01-000 | CASE,HTR,L | CASE,HTR,L |
| 5 | 74116-77A00-000 | PACKING | PACKING |
| 6 | 74117-77A00-000 | CLAMP,PIPE - Bracket, pipe | CLAMP,PIPE - Bracket, pipe |
| 4 | 74120-78A00-000 | CORE,HEATER | CORE,HEATER |
| 16 | 74135-82000-000 | SCREW,MOTOR | SCREW,MOTOR |
| 7 | 74140-84G00-000 | RESISTOR,BLOWER | RESISTOR,BLOWER |
| 8 | 74150-75H01-000 | MOTOR ASSY | MOTOR ASSY |
| 8 | 74150-76G00-000 | Motor assy, blower | Motor assy, blower |
| 9 | 74151-50F00-000 | CABLE | CABLE |
| 18 | 74156-65H00-000 | HARNESS | HARNESS |
| 10 | 74171-77A00-000 | DOOR ASSY,TEMP | DOOR ASSY,TEMP |
| 11 | 74172-77A00-000 | DOOR ASSY,MODE | DOOR ASSY,MODE |
| 12 | 74180-77A00-000 | LEVER,TEMP | LEVER,TEMP |
| 13 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 14 | 74185-77A00-000 | LEVER,TEMP | LEVER,TEMP |
| 15 | 74187-77A00-000 | LEVER,MODE | LEVER,MODE |
