Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 17 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 17 of 3,090 shared

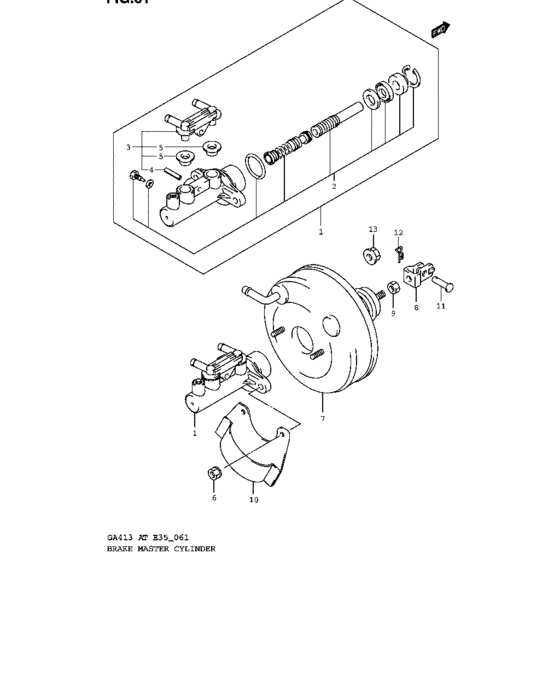

brakes master cylinder (2001-05-01~) 17 / 17
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 51100-78A50-000 | Cylinder assy,brake master | Cylinder assy,brake master |
| 1 | 51100-78A51-000 | CYLINDER ASSY,BRAKE MASTER | CYLINDER ASSY,BRAKE MASTER |
| 2 | 51810-77A50-000 | Piston set,master cylinder | Piston set,master cylinder |
| 2 | 51810-77A51-000 | PISTON SET,MASTER CYLINDER | PISTON SET,MASTER CYLINDER |
| 3 | 51191-78A50-000 | UNION | UNION |
| 4 | 09205-05016-000 | PIN,SPRING(5X32) | PIN,SPRING(5X32) |
| 5 | 51197-85520-000 | GROMMET,RESERVOIR CONNECTOR | GROMMET,RESERVOIR CONNECTOR |
| 6 | 09159-08075-000 | NUT | NUT |
| 7 | 51300-64H70-000 | BOOSTER ASSY,BRAKE MASTER | BOOSTER ASSY,BRAKE MASTER |
| 8 | 51182-62H00-000 | クレビス,プッシュロッド | クレビス,プッシュロッド |
| 8 | 51182-67H00-000 | CLEVIS,PUSH ROD | CLEVIS,PUSH ROD |
| 9 | 09140-10019-000 | NUT | NUT |
| 10 | 51290-78A00-000 | PLATE,KNEE PROTECTOR | PLATE,KNEE PROTECTOR |
| 11 | 09200-10017-000 | PIN | PIN |
| 12 | 09385-10006-000 | PIN,SNAP | PIN,SNAP |
| 13 | 09159-08051-000 | NUT | NUT |
| 13 | 09159-08135-000 | NUT | NUT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 9 | 09140-10019-000 | NUT | NUT |
| 13 | 09159-08051-000 | NUT | NUT |
| 6 | 09159-08075-000 | NUT | NUT |
| 13 | 09159-08135-000 | NUT | NUT |
| 11 | 09200-10017-000 | PIN | PIN |
| 4 | 09205-05016-000 | PIN,SPRING(5X32) | PIN,SPRING(5X32) |
| 12 | 09385-10006-000 | PIN,SNAP | PIN,SNAP |
| 1 | 51100-78A50-000 | Cylinder assy,brake master | Cylinder assy,brake master |
| 1 | 51100-78A51-000 | CYLINDER ASSY,BRAKE MASTER | CYLINDER ASSY,BRAKE MASTER |
| 8 | 51182-62H00-000 | クレビス,プッシュロッド | クレビス,プッシュロッド |
| 8 | 51182-67H00-000 | CLEVIS,PUSH ROD | CLEVIS,PUSH ROD |
| 3 | 51191-78A50-000 | UNION | UNION |
| 5 | 51197-85520-000 | GROMMET,RESERVOIR CONNECTOR | GROMMET,RESERVOIR CONNECTOR |
| 10 | 51290-78A00-000 | PLATE,KNEE PROTECTOR | PLATE,KNEE PROTECTOR |
| 7 | 51300-64H70-000 | BOOSTER ASSY,BRAKE MASTER | BOOSTER ASSY,BRAKE MASTER |
| 2 | 51810-77A50-000 | Piston set,master cylinder | Piston set,master cylinder |
| 2 | 51810-77A51-000 | PISTON SET,MASTER CYLINDER | PISTON SET,MASTER CYLINDER |
