Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 53 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 53 of 3,090 shared

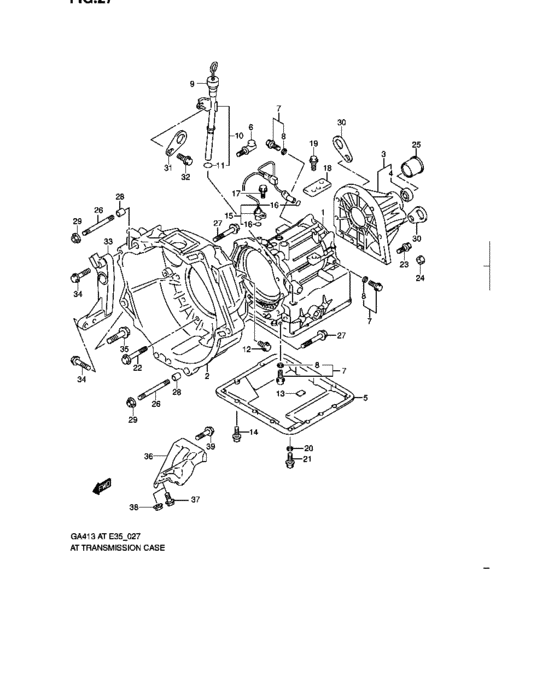

at - transmission case (2001-05-01~) 53 / 56
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 24710-76A11-000 | CASE ASSY,T/M | CASE ASSY,T/M |
| 2 | 24721-76A11-000 | HOUSING,T/C | HOUSING,T/C |
| 3 | 24770-76A30-000 | CASE,EXTENSION | CASE,EXTENSION |
| 4 | 24780-83010-000 | SEAL,EXTENSION CASE OIL | SEAL,EXTENSION CASE OIL |
| 7 | 24761-81A10-000 | PAN,OIL | PAN,OIL |
| 8 | 24717-83C00-000 | PLUG,BREATHER | PLUG,BREATHER |
| 9 | 24820-62B00-000 | PLUG,BOOSTER | PLUG,BOOSTER |
| 10 | 24755-78130-000 | O-RING | O-RING |
| 11 | 24830-64HH0-000 | GAUGE,T/M OIL LEVEL | GAUGE,T/M OIL LEVEL |
| 12 | 24785-76A11-000 | TUBE ASSY,T/M OIL FILLTER | TUBE ASSY,T/M OIL FILLTER |
| 13 | 24785-82300-000 | O-RING,OIL FILLER TUBE | O-RING,OIL FILLER TUBE |
| 14 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 14 | 01550-0816B-000 | Bolt | Bolt |
| 14 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 15 | 24861-78230-000 | MAGNET,OIL CLEANER | MAGNET,OIL CLEANER |
| 16 | 24882-85501-000 | BOLT,T/M OIL PAN | BOLT,T/M OIL PAN |
| 17 | 26140-81A10-000 | SENSOR ASSY,AT SPEED | SENSOR ASSY,AT SPEED |
| 18 | 26142-75F10-000 | O-RING,SPEED SENSOR | O-RING,SPEED SENSOR |
| 19 | 26599-85500-000 | BOLT,SOLENOID | BOLT,SOLENOID |
| 20 | 26598-81A10-000 | BRACKET,SOLENOID WIRE | BRACKET,SOLENOID WIRE |
| 21 | 01570-06163-000 | Bolt | Bolt |
| 21 | 01570-0616B-000 | Bolt | Bolt |
| 21 | 01570-0616A-000 | Bolt | Bolt |
| 22 | 09168-12009-000 | GASKET(12X16.7X2) | GASKET(12X16.7X2) |
| 23 | 09247-10007-000 | PLUG | PLUG |
| 24 | 24883-85500-000 | BOLT,HOUSING | BOLT,HOUSING |
| 25 | 24775-81A10-000 | BOLT,EXTENSION CASE | BOLT,EXTENSION CASE |
| 26 | 08310-00083-000 | Nut | Nut |
| 26 | 08310-0008B-000 | NUT | NUT |
| 26 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 27 | 24773-83C00-000 | COVER,DUST | COVER,DUST |
| 28 | 01421-10453-000 | Stud 10x45 - Stud bolt | Stud 10x45 - Stud bolt |
| 28 | 01421-1045A-000 | BOLT,STUD | BOLT,STUD |
| 29 | 01550-10653-000 | Bolt | Bolt |
| 29 | 01550-1065A-000 | Bolt | Bolt |
| 30 | 04211-13189-000 | PIN | PIN |
| 31 | 08316-10103-000 | Nut | Nut |
| 31 | 08316-1010B-000 | NUT | NUT |
| 32 | 11851-72B21-000 | HOOK,ENGINE | HOOK,ENGINE |
| 33 | 11851-62B00-000 | HOOK | HOOK |
| 35 | 24791-76A01-000 | STIFFENER | STIFFENER |
| 36 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 36 | 01550-0835B-000 | Bolt | Bolt |
| 36 | 01550-0835A-000 | Bolt | Bolt |
| 37 | 01550-10403-000 | Bolt - Bolt, rear lh (10x40) | Bolt - Bolt, rear lh (10x40) |
| 37 | 01550-1040B-000 | Bolt | Bolt |
| 37 | 01550-1040A-000 | Bolt | Bolt |
| 38 | 24792-76A00-000 | Stiffener, lh | Stiffener, lh |
| 38 | 24792-83B00-000 | STIFFENER,ENG&T/M,L | STIFFENER,ENG&T/M,L |
| 39 | 01551-10253-000 | Bolt | Bolt |
| 39 | 01551-1025A-000 | Bolt | Bolt |
| 40 | 01551-10403-000 | ボルト | ボルト |
| 40 | 01551-1040A-000 | Bolt | Bolt |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 28 | 01421-10453-000 | Stud 10x45 - Stud bolt | Stud 10x45 - Stud bolt |
| 28 | 01421-1045A-000 | BOLT,STUD | BOLT,STUD |
| 11 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 11 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 11 | 01550-0816B-000 | Bolt | Bolt |
| 36 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 36 | 01550-0835A-000 | Bolt | Bolt |
| 36 | 01550-0835B-000 | Bolt | Bolt |
| 37 | 01550-10403-000 | Bolt - Bolt, rear lh (10x40) | Bolt - Bolt, rear lh (10x40) |
| 37 | 01550-1040A-000 | Bolt | Bolt |
| 37 | 01550-1040B-000 | Bolt | Bolt |
| 29 | 01550-10653-000 | Bolt | Bolt |
| 29 | 01550-1065A-000 | Bolt | Bolt |
| 39 | 01551-10253-000 | Bolt | Bolt |
| 39 | 01551-1025A-000 | Bolt | Bolt |
| 40 | 01551-10403-000 | ボルト | ボルト |
| 40 | 01551-1040A-000 | Bolt | Bolt |
| 2 | 01570-06163-000 | Bolt | Bolt |
| 2 | 01570-0616A-000 | Bolt | Bolt |
| 2 | 01570-0616B-000 | Bolt | Bolt |
| 11 | 04211-13189-000 | PIN | PIN |
| 6 | 08310-00083-000 | Nut | Nut |
| 6 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 6 | 08310-0008B-000 | NUT | NUT |
| 31 | 08316-10103-000 | Nut | Nut |
| 31 | 08316-1010B-000 | NUT | NUT |
| 22 | 09168-12009-000 | GASKET(12X16.7X2) | GASKET(12X16.7X2) |
| 23 | 09247-10007-000 | PLUG | PLUG |
| 33 | 11851-62B00-000 | HOOK | HOOK |
| 32 | 11851-72B21-000 | HOOK,ENGINE | HOOK,ENGINE |
| 1 | 24710-76A11-000 | CASE ASSY,T/M | CASE ASSY,T/M |
| 8 | 24717-83C00-000 | PLUG,BREATHER | PLUG,BREATHER |
| 2 | 24721-76A11-000 | HOUSING,T/C | HOUSING,T/C |
| 10 | 24755-78130-000 | O-RING | O-RING |
| 7 | 24761-81A10-000 | PAN,OIL | PAN,OIL |
| 3 | 24770-76A30-000 | CASE,EXTENSION | CASE,EXTENSION |
| 27 | 24773-83C00-000 | COVER,DUST | COVER,DUST |
| 25 | 24775-81A10-000 | BOLT,EXTENSION CASE | BOLT,EXTENSION CASE |
| 4 | 24780-83010-000 | SEAL,EXTENSION CASE OIL | SEAL,EXTENSION CASE OIL |
| 12 | 24785-76A11-000 | TUBE ASSY,T/M OIL FILLTER | TUBE ASSY,T/M OIL FILLTER |
| 13 | 24785-82300-000 | O-RING,OIL FILLER TUBE | O-RING,OIL FILLER TUBE |
| 35 | 24791-76A01-000 | STIFFENER | STIFFENER |
| 38 | 24792-76A00-000 | Stiffener, lh | Stiffener, lh |
| 38 | 24792-83B00-000 | STIFFENER,ENG&T/M,L | STIFFENER,ENG&T/M,L |
| 9 | 24820-62B00-000 | PLUG,BOOSTER | PLUG,BOOSTER |
| 11 | 24830-64HH0-000 | GAUGE,T/M OIL LEVEL | GAUGE,T/M OIL LEVEL |
| 15 | 24861-78230-000 | MAGNET,OIL CLEANER | MAGNET,OIL CLEANER |
| 16 | 24882-85501-000 | BOLT,T/M OIL PAN | BOLT,T/M OIL PAN |
| 24 | 24883-85500-000 | BOLT,HOUSING | BOLT,HOUSING |
| 17 | 26140-81A10-000 | SENSOR ASSY,AT SPEED | SENSOR ASSY,AT SPEED |
| 18 | 26142-75F10-000 | O-RING,SPEED SENSOR | O-RING,SPEED SENSOR |
| 20 | 26598-81A10-000 | BRACKET,SOLENOID WIRE | BRACKET,SOLENOID WIRE |
| 19 | 26599-85500-000 | BOLT,SOLENOID | BOLT,SOLENOID |
