Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 12 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 12 of 3,090 shared

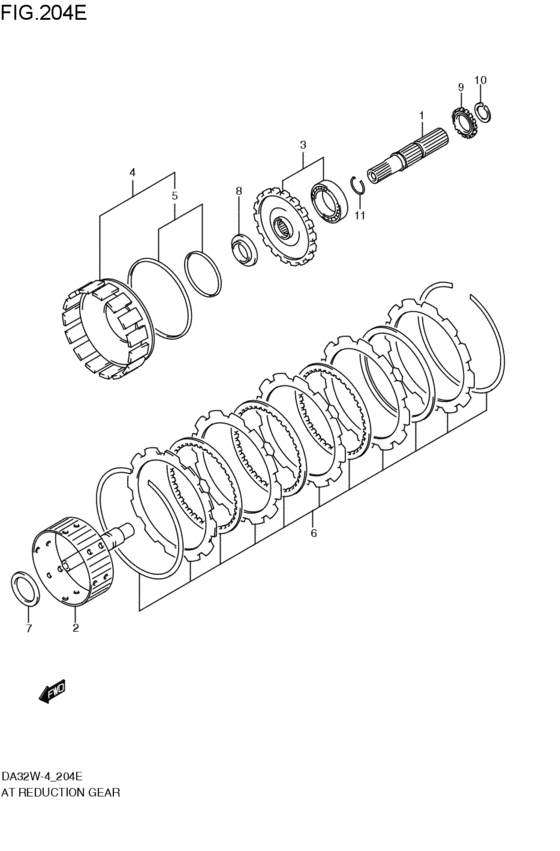

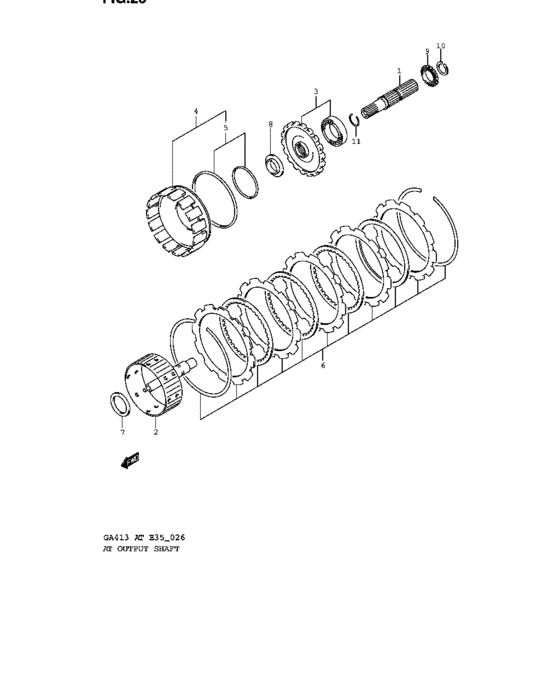

at - reduction gear (2001-05-01~) 12 / 15
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 24120-76A30-000 | シャフトアッシ,アウトプツト | シャフトアッシ,アウトプツト |
| 1 | 24120-76A31-000 | SHAFT ASSY,OUTPUT | SHAFT ASSY,OUTPUT |
| 2 | 24145-81A10-000 | SHAFT ASSY,INTERMEDIATE | SHAFT ASSY,INTERMEDIATE |
| 3 | 24180-81A10-000 | GEAR ASSY,PARKING LOCK | GEAR ASSY,PARKING LOCK |
| 4 | 26841-81AT1-000 | PISTON SET,REV BK | PISTON SET,REV BK |
| 5 | 26843-81AT0-000 | O-RING SET,REV BK PISTON | O-RING SET,REV BK PISTON |
| 6 | 26811-64HT0-000 | DISC SET,REV BK | DISC SET,REV BK |
| 7 | 24147-81A10-000 | BEARING,INTERMEDIATE | BEARING,INTERMEDIATE |
| 8 | 24943-75F10-000 | BEARING,RR PLNTY THRUST | BEARING,RR PLNTY THRUST |
| 9 | 26121-78A10-000 | RING,SPEEDOMETER EXCITER | RING,SPEEDOMETER EXCITER |
| 10 | 26122-78A10-000 | CIRCLIP,EXCITER RING | CIRCLIP,EXCITER RING |
| 11 | 24124-81C00-000 | RING,PARKING LOCK SNAP | RING,PARKING LOCK SNAP |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 24120-76A30-000 | シャフトアッシ,アウトプツト | シャフトアッシ,アウトプツト |
| 1 | 24120-76A31-000 | SHAFT ASSY,OUTPUT | SHAFT ASSY,OUTPUT |
| 11 | 24124-81C00-000 | RING,PARKING LOCK SNAP | RING,PARKING LOCK SNAP |
| 2 | 24145-81A10-000 | SHAFT ASSY,INTERMEDIATE | SHAFT ASSY,INTERMEDIATE |
| 7 | 24147-81A10-000 | BEARING,INTERMEDIATE | BEARING,INTERMEDIATE |
| 3 | 24180-81A10-000 | GEAR ASSY,PARKING LOCK | GEAR ASSY,PARKING LOCK |
| 3 | 24943-75F10-000 | BEARING,RR PLNTY THRUST | BEARING,RR PLNTY THRUST |
| 9 | 26121-78A10-000 | RING,SPEEDOMETER EXCITER | RING,SPEEDOMETER EXCITER |
| 10 | 26122-78A10-000 | CIRCLIP,EXCITER RING | CIRCLIP,EXCITER RING |
| 6 | 26811-64HT0-000 | DISC SET,REV BK | DISC SET,REV BK |
| 4 | 26841-81AT1-000 | PISTON SET,REV BK | PISTON SET,REV BK |
| 5 | 26843-81AT0-000 | O-RING SET,REV BK PISTON | O-RING SET,REV BK PISTON |
