Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 23 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 23 of 3,090 shared

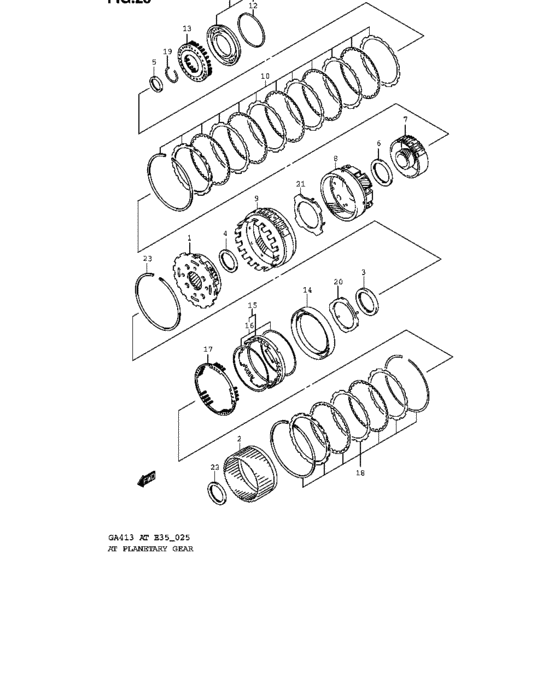

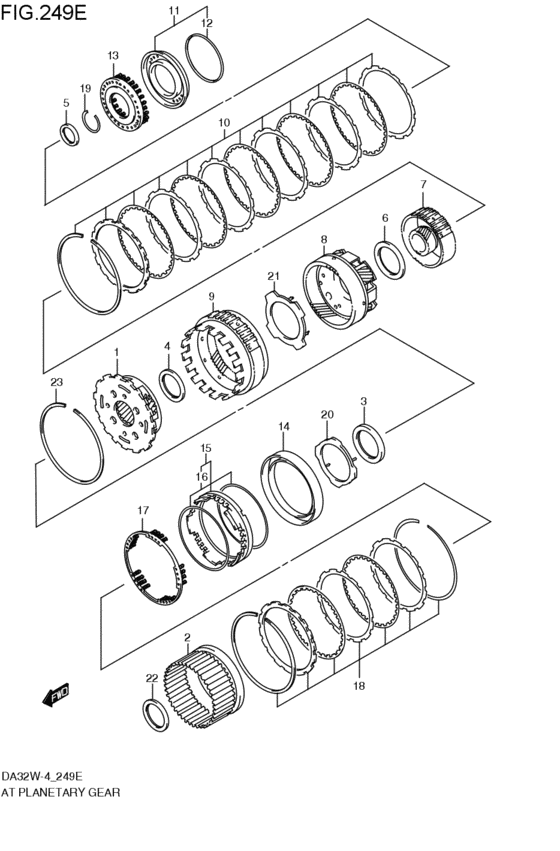

at - plastic material re-gear (プラネタリギヤ / オーバードライブブレーキ; 2001-05-01~) 23 / 23
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 24910-81A30-000 | GEAR ASSY,FR PLNTY | GEAR ASSY,FR PLNTY |
| 2 | 24930-81A10-000 | GEAR ASSY,FR PLNTY SUN | GEAR ASSY,FR PLNTY SUN |
| 3 | 24943-75F10-000 | BEARING,RR PLNTY THRUST | BEARING,RR PLNTY THRUST |
| 4 | 24939-81A10-000 | Bearing,fr plnty carr thrust | Bearing,fr plnty carr thrust |
| 5 | 24941-81A10-000 | BEARING,PLNTY SUN GEAR | BEARING,PLNTY SUN GEAR |
| 6 | 24942-75F10-000 | BEARING,THRUST NO.2 | BEARING,THRUST NO.2 |
| 7 | 24950-81A10-000 | GEAR ASSY,RR PLNTY SUN | GEAR ASSY,RR PLNTY SUN |
| 8 | 24940-81A10-000 | GEAR ASSY,RR PLNTY | GEAR ASSY,RR PLNTY |
| 9 | 24945-81A10-000 | GEAR,RR PLNTY RING | GEAR,RR PLNTY RING |
| 10 | 26746-81AT1-000 | DISC SET,1ST&2ND BK | DISC SET,1ST&2ND BK |
| 11 | 26741-81AT0-000 | PISTON SET,1ST&2ND BK | PISTON SET,1ST&2ND BK |
| 12 | 26748-81A10-000 | O-RING,1ST&2ND BK | O-RING,1ST&2ND BK |
| 13 | 26743-81A10-000 | SPRING ASSY,1ST&2ND BK | SPRING ASSY,1ST&2ND BK |
| 14 | 26827-81A10-000 | DRUM,O/D BRAKE | DRUM,O/D BRAKE |
| 15 | 26822-81AT1-000 | PISTON SET,O/D BK | PISTON SET,O/D BK |
| 16 | 26824-81AT0-000 | D RING SET,O/D BK PSTN | D RING SET,O/D BK PSTN |
| 17 | 26821-81A10-000 | SPRING ASSY,O/D BRAKE RETURN | SPRING ASSY,O/D BRAKE RETURN |
| 18 | 26823-81AT1-000 | DISC SET,O/D BRAKE | DISC SET,O/D BRAKE |
| 19 | 26785-81A10-000 | RING,1ST&2ND BK | RING,1ST&2ND BK |
| 20 | 24937-75F10-000 | RECEIVER,FR PLNTY OIL | RECEIVER,FR PLNTY OIL |
| 21 | 24938-75F10-000 | RECEIVER,PLNTY OIL | RECEIVER,PLNTY OIL |
| 22 | 24934-75F10-000 | BEARING,FR PLNTY CARR THRUST | BEARING,FR PLNTY CARR THRUST |
| 23 | 24161-75F10-000 | RING,FR RING GR SNAP | RING,FR RING GR SNAP |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 23 | 24161-75F10-000 | RING,FR RING GR SNAP | RING,FR RING GR SNAP |
| 1 | 24910-81A30-000 | GEAR ASSY,FR PLNTY | GEAR ASSY,FR PLNTY |
| 2 | 24930-81A10-000 | GEAR ASSY,FR PLNTY SUN | GEAR ASSY,FR PLNTY SUN |
| 22 | 24934-75F10-000 | BEARING,FR PLNTY CARR THRUST | BEARING,FR PLNTY CARR THRUST |
| 20 | 24937-75F10-000 | RECEIVER,FR PLNTY OIL | RECEIVER,FR PLNTY OIL |
| 21 | 24938-75F10-000 | RECEIVER,PLNTY OIL | RECEIVER,PLNTY OIL |
| 4 | 24939-81A10-000 | Bearing,fr plnty carr thrust | Bearing,fr plnty carr thrust |
| 8 | 24940-81A10-000 | GEAR ASSY,RR PLNTY | GEAR ASSY,RR PLNTY |
| 5 | 24941-81A10-000 | BEARING,PLNTY SUN GEAR | BEARING,PLNTY SUN GEAR |
| 6 | 24942-75F10-000 | BEARING,THRUST NO.2 | BEARING,THRUST NO.2 |
| 3 | 24943-75F10-000 | BEARING,RR PLNTY THRUST | BEARING,RR PLNTY THRUST |
| 9 | 24945-81A10-000 | GEAR,RR PLNTY RING | GEAR,RR PLNTY RING |
| 7 | 24950-81A10-000 | GEAR ASSY,RR PLNTY SUN | GEAR ASSY,RR PLNTY SUN |
| 11 | 26741-81AT0-000 | PISTON SET,1ST&2ND BK | PISTON SET,1ST&2ND BK |
| 13 | 26743-81A10-000 | SPRING ASSY,1ST&2ND BK | SPRING ASSY,1ST&2ND BK |
| 10 | 26746-81AT1-000 | DISC SET,1ST&2ND BK | DISC SET,1ST&2ND BK |
| 12 | 26748-81A10-000 | O-RING,1ST&2ND BK | O-RING,1ST&2ND BK |
| 19 | 26785-81A10-000 | RING,1ST&2ND BK | RING,1ST&2ND BK |
| 17 | 26821-81A10-000 | SPRING ASSY,O/D BRAKE RETURN | SPRING ASSY,O/D BRAKE RETURN |
| 15 | 26822-81AT1-000 | PISTON SET,O/D BK | PISTON SET,O/D BK |
| 18 | 26823-81AT1-000 | DISC SET,O/D BRAKE | DISC SET,O/D BRAKE |
| 16 | 26824-81AT0-000 | D RING SET,O/D BK PSTN | D RING SET,O/D BK PSTN |
| 14 | 26827-81A10-000 | DRUM,O/D BRAKE | DRUM,O/D BRAKE |
