Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 11 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 11 of 3,090 shared

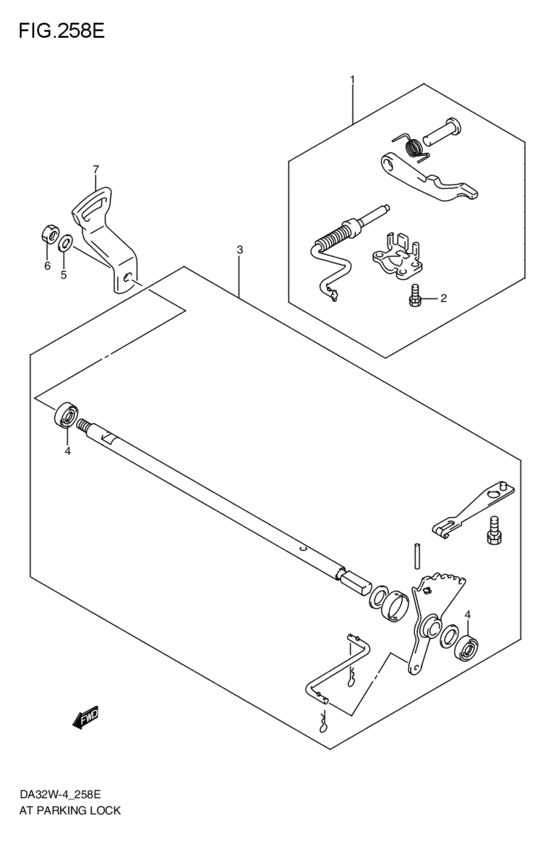

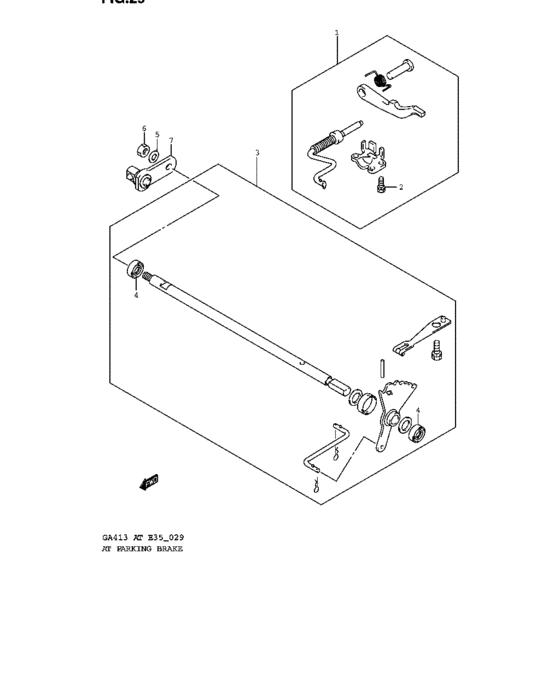

at - parking lock (2001-05-01~) 11 / 11
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 25912-81AT0-000 | PAWL SET,PARKING | PAWL SET,PARKING |
| 2 | 01570-06163-000 | Bolt | Bolt |
| 2 | 01570-0616B-000 | Bolt | Bolt |
| 2 | 01570-0616A-000 | Bolt | Bolt |
| 3 | 25941-76AT0-000 | SHAFT SET,MANUAL SHIFT | SHAFT SET,MANUAL SHIFT |
| 4 | 25981-85500-000 | OIL SEAL,MANUAL SHIFT SHAFT | OIL SEAL,MANUAL SHIFT SHAFT |
| 5 | 25952-82300-000 | WASHER | WASHER |
| 6 | 08310-00083-000 | Nut | Nut |
| 6 | 08310-0008B-000 | NUT | NUT |
| 6 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 7 | 25941-64HH0-000 | LEVER,T/M CONTROL SHAFT | LEVER,T/M CONTROL SHAFT |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 2 | 01570-06163-000 | Bolt | Bolt |
| 2 | 01570-0616A-000 | Bolt | Bolt |
| 2 | 01570-0616B-000 | Bolt | Bolt |
| 6 | 08310-00083-000 | Nut | Nut |
| 6 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 6 | 08310-0008B-000 | NUT | NUT |
| 1 | 25912-81AT0-000 | PAWL SET,PARKING | PAWL SET,PARKING |
| 7 | 25941-64HH0-000 | LEVER,T/M CONTROL SHAFT | LEVER,T/M CONTROL SHAFT |
| 3 | 25941-76AT0-000 | SHAFT SET,MANUAL SHIFT | SHAFT SET,MANUAL SHIFT |
| 5 | 25952-82300-000 | WASHER | WASHER |
| 4 | 25981-85500-000 | OIL SEAL,MANUAL SHIFT SHAFT | OIL SEAL,MANUAL SHIFT SHAFT |
