Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 9 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 9 of 3,090 shared

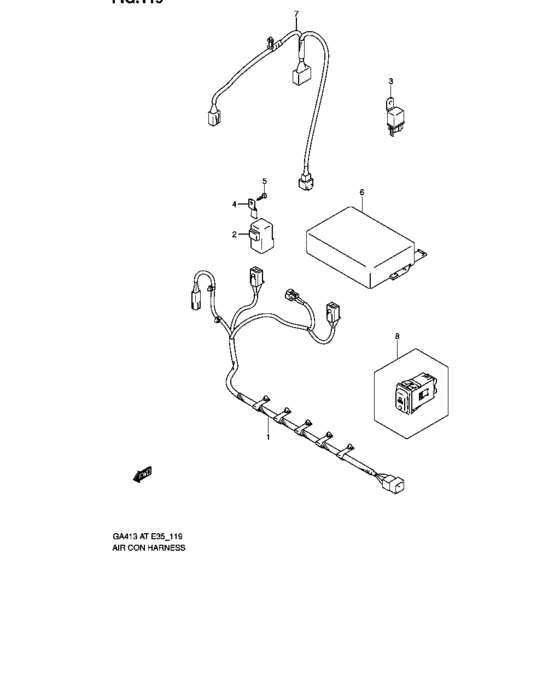

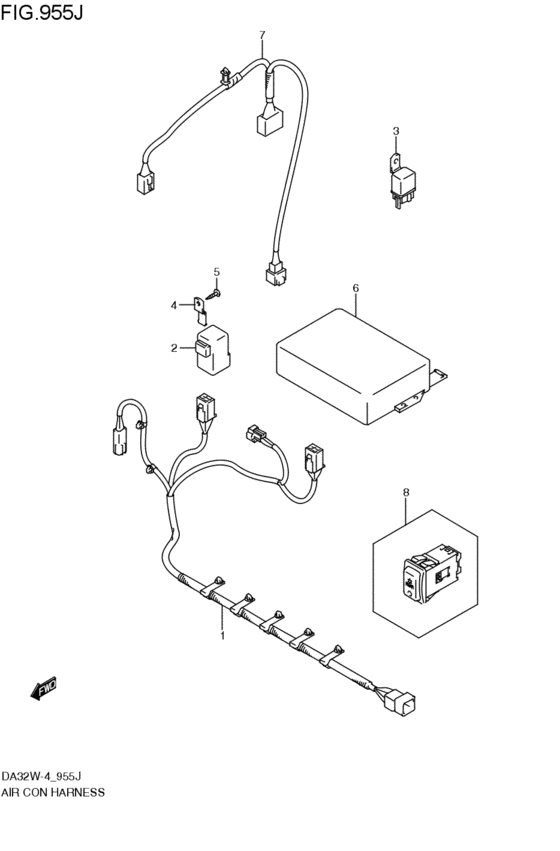

air-conditioner harness (2001-05-01~) 9 / 9
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 95533-78A20-000 | HARNESS,JOINT | HARNESS,JOINT |
| 2 | 38860-72G00-000 | RELAY ASSY - Relay, air con | RELAY ASSY - Relay, air con |
| 3 | 38860-60A10-000 | RELAY ASSY,LOCK UP | RELAY ASSY,LOCK UP |
| 4 | 95981-73A00-000 | BRACKET,FUSE | BRACKET,FUSE |
| 5 | 03541-05123-000 | Screw | Screw |
| 5 | 03541-0512B-000 | SCREW | SCREW |
| 6 | 95510-78A02-000 | CONTROLLER,A/C | CONTROLLER,A/C |
| 7 | 95536-76A00-000 | HARNESS,O/H A/C JOINT | HARNESS,O/H A/C JOINT |
| 8 | 95521-76A10-000 | SWITCH,REAR A/C | SWITCH,REAR A/C |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 28 | 03541-05123-000 | Screw | Screw |
| 28 | 03541-0512B-000 | SCREW | SCREW |
| 3 | 38860-60A10-000 | RELAY ASSY,LOCK UP | RELAY ASSY,LOCK UP |
| 2 | 38860-72G00-000 | RELAY ASSY - Relay, air con | RELAY ASSY - Relay, air con |
| 6 | 95510-78A02-000 | CONTROLLER,A/C | CONTROLLER,A/C |
| 8 | 95521-76A10-000 | SWITCH,REAR A/C | SWITCH,REAR A/C |
| 1 | 95533-78A20-000 | HARNESS,JOINT | HARNESS,JOINT |
| 7 | 95536-76A00-000 | HARNESS,O/H A/C JOINT | HARNESS,O/H A/C JOINT |
| 4 | 95981-73A00-000 | BRACKET,FUSE | BRACKET,FUSE |
