Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 27 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 27 of 3,090 shared

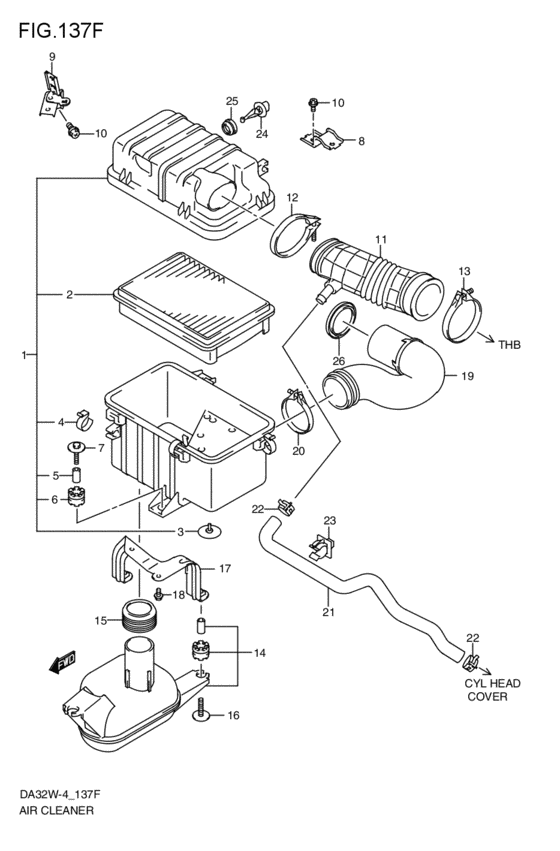

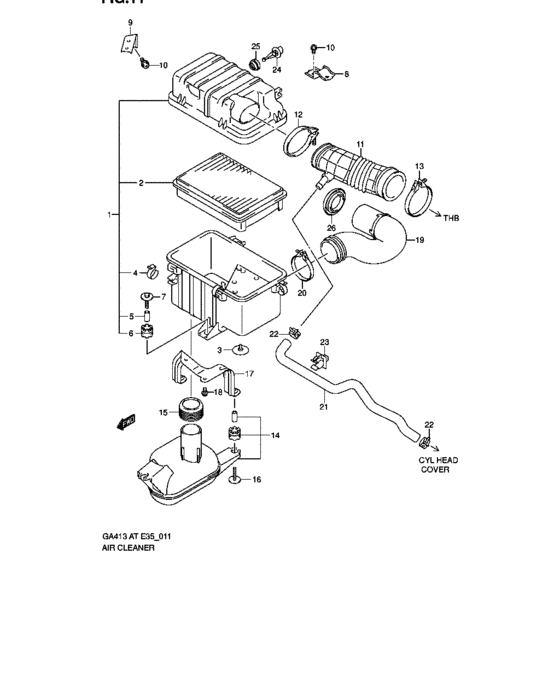

air cleaner (2001-05-01~) 27 / 28
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 13700-76A30-000 | CLEANER ASSY,AIR | CLEANER ASSY,AIR |
| 2 | 13780-77A00-000 | ELEMENT,AIR CLEANER | ELEMENT,AIR CLEANER |
| 3 | 13681-44E00-000 | VALVE,DRAIN | VALVE,DRAIN |
| 4 | 13755-80GA0-000 | CLIP,AIR CLEANER CASE | CLIP,AIR CLEANER CASE |
| 5 | 13877-65D00-000 | COLLAR,7.6X10X19.3 | COLLAR,7.6X10X19.3 |
| 6 | 13878-65D00-000 | CUSHION,12.5X22X19.5 | CUSHION,12.5X22X19.5 |
| 7 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | BOLT(6X30) - Bolt (6x30) |
| 8 | 13811-77A00-000 | BRACKET,AIR CLNR NO.1 | BRACKET,AIR CLNR NO.1 |
| 9 | 13810-62H10-000 | BRACKET,AIR CLNR N0.2 | BRACKET,AIR CLNR N0.2 |
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 11 | 13880-76A30-000 | HOSE ASSY,AIR CLEANER OUTLET | HOSE ASSY,AIR CLEANER OUTLET |
| 12 | 13875-75F00-000 | CLAMP,AIR CLEANER HOSE - Clamp (clnr) | CLAMP,AIR CLEANER HOSE - Clamp (clnr) |
| 14 | 13760-77A00-000 | RESONATOR ASSY | RESONATOR ASSY |
| 15 | 13766-78A00-000 | GROMMET,RESONATOR | GROMMET,RESONATOR |
| 17 | 13630-78A50-000 | BRACKET,RESONATOR | BRACKET,RESONATOR |
| 19 | 13871-77A01-000 | HOSE,AIR CLNR INLET | HOSE,AIR CLNR INLET |
| 20 | 09402-58208-000 | CLAMP | CLAMP |
| 21 | 11191-76A30-000 | HOSE,BREATHER | HOSE,BREATHER |
| 22 | 09401-18404-000 | CLIP | CLIP |
| 22 | 09401-18408-000 | Clip | Clip |
| 23 | 09403-18305-000 | CLAMP | CLAMP |
| 24 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 25 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 25 | 13655-77E10-000 | Grommet,air Temp Sensor | Grommet,air Temp Sensor |
| 26 | 13879-65H00-000 | CAP,FRAME EXTENSION | CAP,FRAME EXTENSION |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 10 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 7 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | BOLT(6X30) - Bolt (6x30) |
| 22 | 09401-18404-000 | CLIP | CLIP |
| 22 | 09401-18408-000 | Clip | Clip |
| 20 | 09402-58208-000 | CLAMP | CLAMP |
| 23 | 09403-18305-000 | CLAMP | CLAMP |
| 21 | 11191-76A30-000 | HOSE,BREATHER | HOSE,BREATHER |
| 17 | 13630-78A50-000 | BRACKET,RESONATOR | BRACKET,RESONATOR |
| 24 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 25 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 25 | 13655-77E10-000 | Grommet,air Temp Sensor | Grommet,air Temp Sensor |
| 3 | 13681-44E00-000 | VALVE,DRAIN | VALVE,DRAIN |
| 1 | 13700-76A30-000 | CLEANER ASSY,AIR | CLEANER ASSY,AIR |
| 4 | 13755-80GA0-000 | CLIP,AIR CLEANER CASE | CLIP,AIR CLEANER CASE |
| 14 | 13760-77A00-000 | RESONATOR ASSY | RESONATOR ASSY |
| 15 | 13766-78A00-000 | GROMMET,RESONATOR | GROMMET,RESONATOR |
| 2 | 13780-77A00-000 | ELEMENT,AIR CLEANER | ELEMENT,AIR CLEANER |
| 9 | 13810-62H10-000 | BRACKET,AIR CLNR N0.2 | BRACKET,AIR CLNR N0.2 |
| 8 | 13811-77A00-000 | BRACKET,AIR CLNR NO.1 | BRACKET,AIR CLNR NO.1 |
| 19 | 13871-77A01-000 | HOSE,AIR CLNR INLET | HOSE,AIR CLNR INLET |
| 12 | 13875-75F00-000 | CLAMP,AIR CLEANER HOSE - Clamp (clnr) | CLAMP,AIR CLEANER HOSE - Clamp (clnr) |
| 5 | 13877-65D00-000 | COLLAR,7.6X10X19.3 | COLLAR,7.6X10X19.3 |
| 6 | 13878-65D00-000 | CUSHION,12.5X22X19.5 | CUSHION,12.5X22X19.5 |
| 26 | 13879-65H00-000 | CAP,FRAME EXTENSION | CAP,FRAME EXTENSION |
| 11 | 13880-76A30-000 | HOSE ASSY,AIR CLEANER OUTLET | HOSE ASSY,AIR CLEANER OUTLET |
