Search › Compare › DA32W × GA413
DA32W
Suzuki CARRY-EVERY — 8 of 2,529 shared
GA413
Suzuki CARRY-SUPER-CARRY — 8 of 3,090 shared

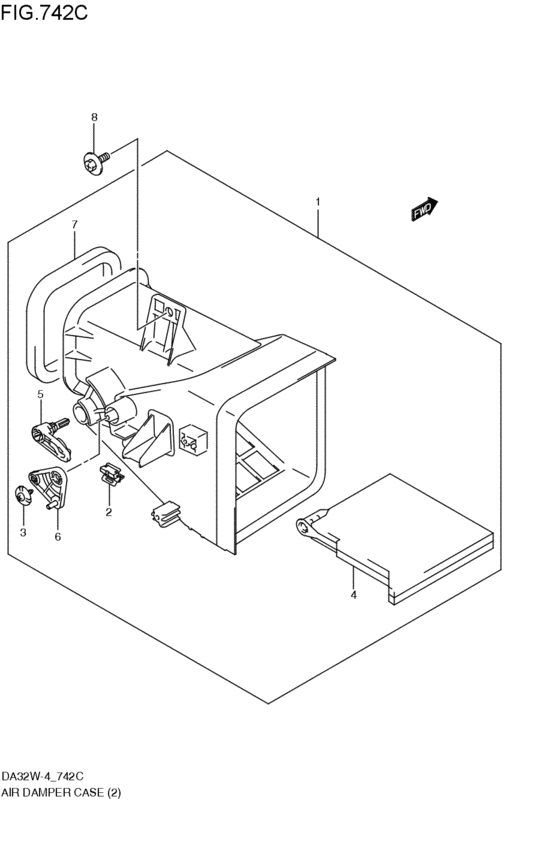

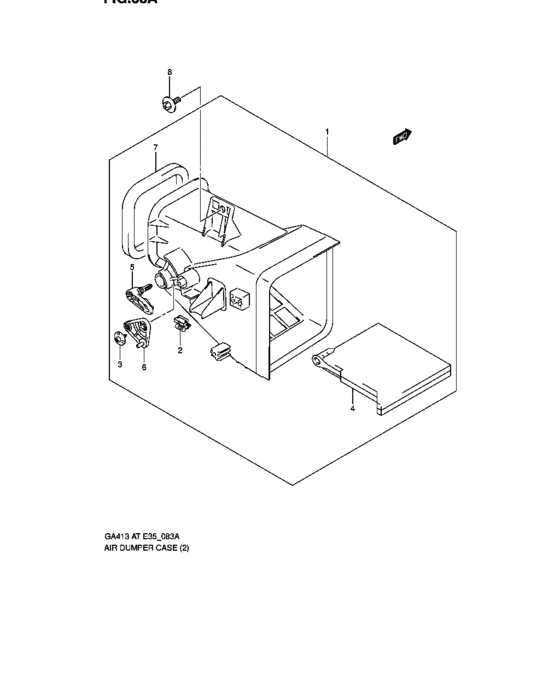

エアダンパケース (200206 カラ; 2002-06-01~) 8 / 8
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 1 | 74200-67H00-000 | BOX ASSY,AIR INLET | BOX ASSY,AIR INLET |
| 2 | 74151-50F00-000 | CABLE | CABLE |
| 3 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 4 | 74212-77A00-000 | DOOR ASSY,AIR INLET BOX - Door, air inlet box | DOOR ASSY,AIR INLET BOX - Door, air inlet box |
| 5 | 74213-67H00-000 | LINK,DR | LINK,DR |
| 6 | 74214-67H00-000 | LEVER,DR | LEVER,DR |
| 7 | 74215-77A00-000 | PACKING | PACKING |
| 8 | 09122-76003-000 | SCREW(6X16) - Bolt (6x16) | SCREW(6X16) - Bolt (6x16) |
| # | OEM | DA32W | GA413 |
|---|---|---|---|
| 27 | 09122-76003-000 | SCREW(6X16) - Bolt (6x16) | SCREW(6X16) - Bolt (6x16) |
| 9 | 74151-50F00-000 | CABLE | CABLE |
| 13 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 1 | 74200-67H00-000 | BOX ASSY,AIR INLET | BOX ASSY,AIR INLET |
| 4 | 74212-77A00-000 | DOOR ASSY,AIR INLET BOX - Door, air inlet box | DOOR ASSY,AIR INLET BOX - Door, air inlet box |
| 5 | 74213-67H00-000 | LINK,DR | LINK,DR |
| 6 | 74214-67H00-000 | LEVER,DR | LEVER,DR |
| 7 | 74215-77A00-000 | PACKING | PACKING |
